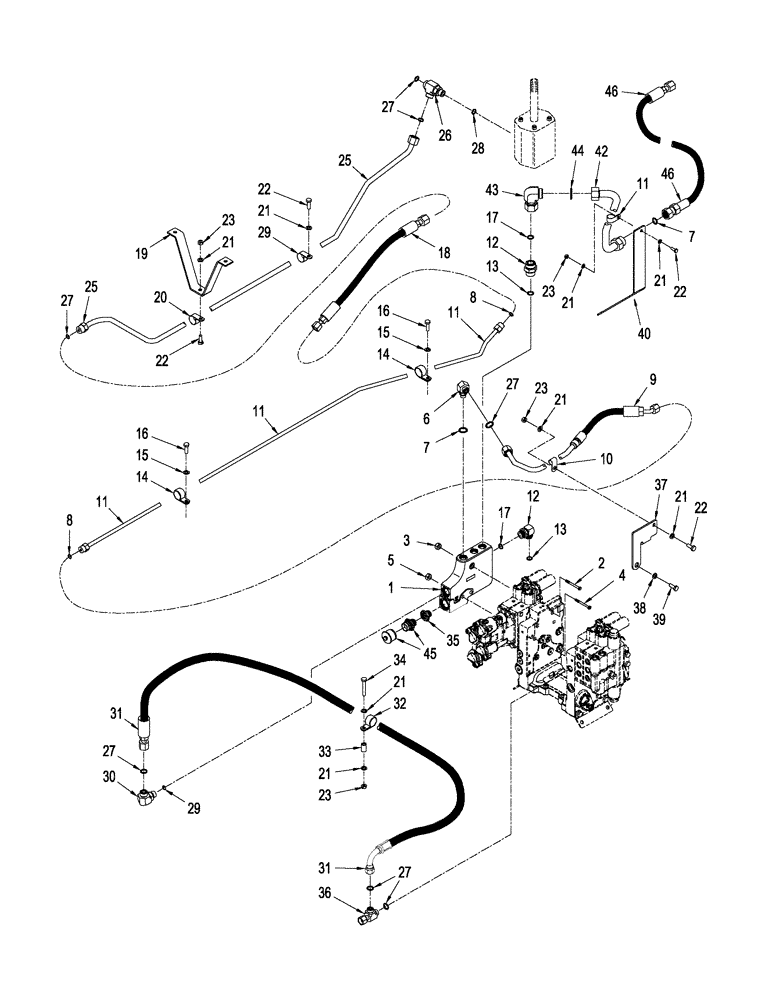

Запчасти Case IH STEIGER 330 (08-44) - TRAILER BRAKES - HYDRAULIC (08) - HYDRAULICS

1

87388358

VALVE SECTION

Trailer Brake / Priority. See Figure: 08-45

1шт.

2

87418098

STUD

Tie, Rod

1шт.

3

304951A1

NUT

1шт.

4

87430079

STUD

Tie

2шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

6

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 7 & 27

1шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

9

87607931

HOSE ASSY.

TB Signal

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

11

87354031

TUBE,9.50 mm OD

Trailer Brake, RF

1шт.

12

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 7 & 13

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

14

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

87701115

HOSE

Service Brake, to Trailor Brake Valve, 465 mm (18-5/16")

1шт.

19

87701111

BRACKET

Support

1шт.

20

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

22

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

25

87701113

TUBE,12.7 mm OD

Service Brake

1шт.

26

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

28

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

29

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type

1шт.

30

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

31

87607935

HOSE ASSY.

Trailor Brake Valve to Manifold Valve

1шт.

32

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

33

414937A1

SPACER

2шт.

34

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

35

87371306

COUPLING, QUICK, FEM

Quick Connect, Female End

1шт.

36

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

37

87607934

BRACKET

Support

1шт.

38

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

39

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

40

87548905

BRACKET

TB Pressure Valve

1шт.

41

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

42

87525463

TUBE,19.68 mm ID x 25.4 mm OD x 275, 100 mm L

Auxilliary Supply

1шт.

43

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 44

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

737606R1

COUPLING, QUICK, FEM

1шт.

46

87668555

HOSE

2557 mm (100-1/2"), Auxiliary Supply

1шт.
