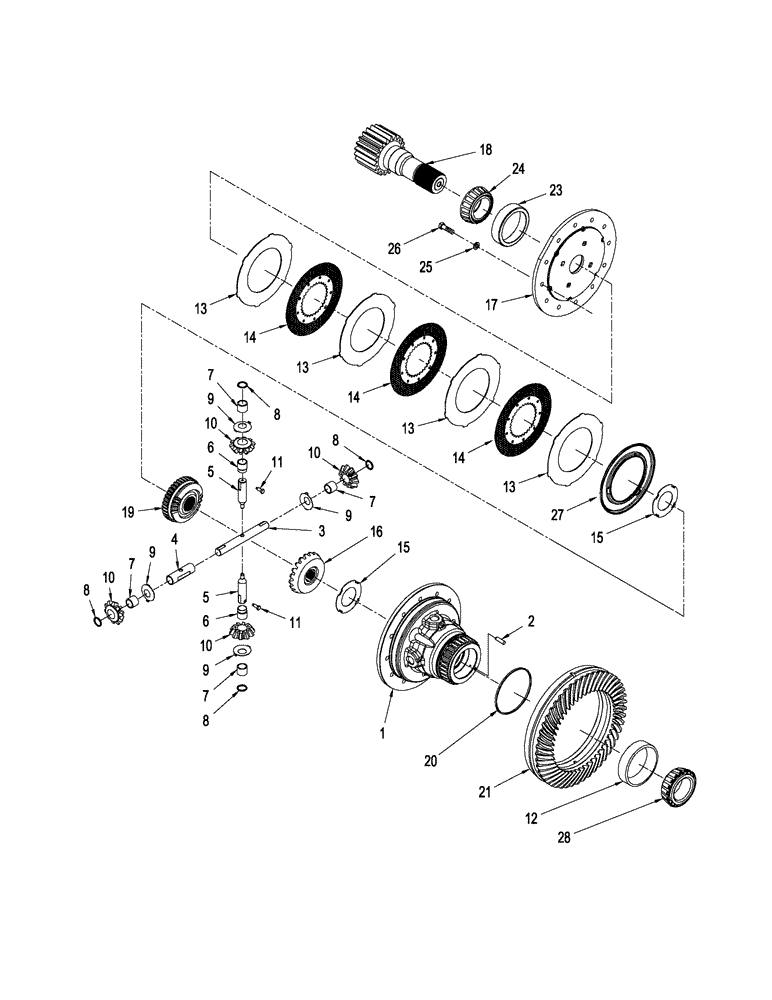

Запчасти Case IH STEIGER 330 (06-61) - AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCK (06) - POWER TRAIN

87471385

DIFFERENTIAL ASSY

with Diff Lock, Inc. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

87520606

PLUG

10 mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinnion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

Retaining

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Cross Pin

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Separator

4шт.

14

120679C1

PLATE

Friction

3шт.

15

87629650

THRUST WASHER

2шт.

16

1259633C3

GEAR

Bevel, 20T

1шт.

17

253609A4

COVER

Housing

1шт.

18

310693A1

SHAFT

Sun Gear, Short

1шт.

19

1259634C3

PINION

Lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

302259A2

BEVEL GEAR

Pinion Shaft, Front Axle, See Figures: 06-57 & 06-58, Inc. 21

1шт.

302260A1

GEAR SET

Pinion Shaft, Rear Axle, See Figures: 06-57 & 06-58, Inc. 22, Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Gear, Drive, Front Axle, 53 T

1шт.

22

NSS

NOT SOLD SEPARAT

Gear, Drive, Rear Axle, 53 T, Not Illustrated

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

26

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

27

1997422C1

PISTON

Brake

1шт.

28

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.
