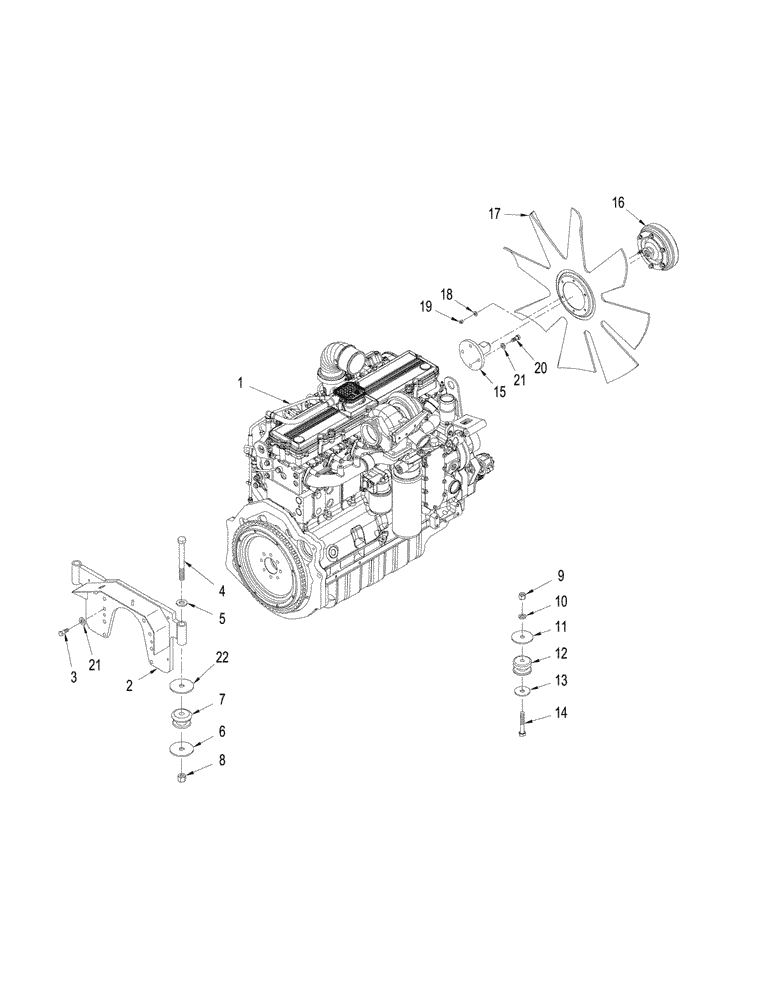

Запчасти Case IH STEIGER 330 (02-07) - ENGINE MOUNTING (02) - ENGINE

1

87539020

BASIC ENGINE

280hp

1шт.

STX280

1шт.

STEIGER 280

1шт.

1

87539020C

CORE-BASIC ENGINE

Return Number, STX280, STEIGER 280, N.A. Only

1шт.

1

87539021

BASIC ENGINE

330hp

1шт.

STX330

1шт.

STEIGER 330

1шт.

1

87539021R

REMAN-BASIC ENGINE

330hp

1шт.

1

87539021C

CORE-BASIC ENGINE

Return Number

1шт.

2

379558A1

HOUSING

Flywheel

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

4

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

5

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

6

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

7

304561A1

ENGINE MOUNT

Rubber, Flywheel End

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

11

51-128

WASHER

1шт.

12

24-231

RUBBER MOUNTING

Engine Mounting, Fan End

1шт.

13

19-408

WASHER

1шт.

14

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

15

336336A2

SHAFT

Support

1шт.

16

353846A1

DRIVE

Fan Cooling

1шт.

17

314317A1

FAN

1шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

22

331663A1

WASHER

2шт.
