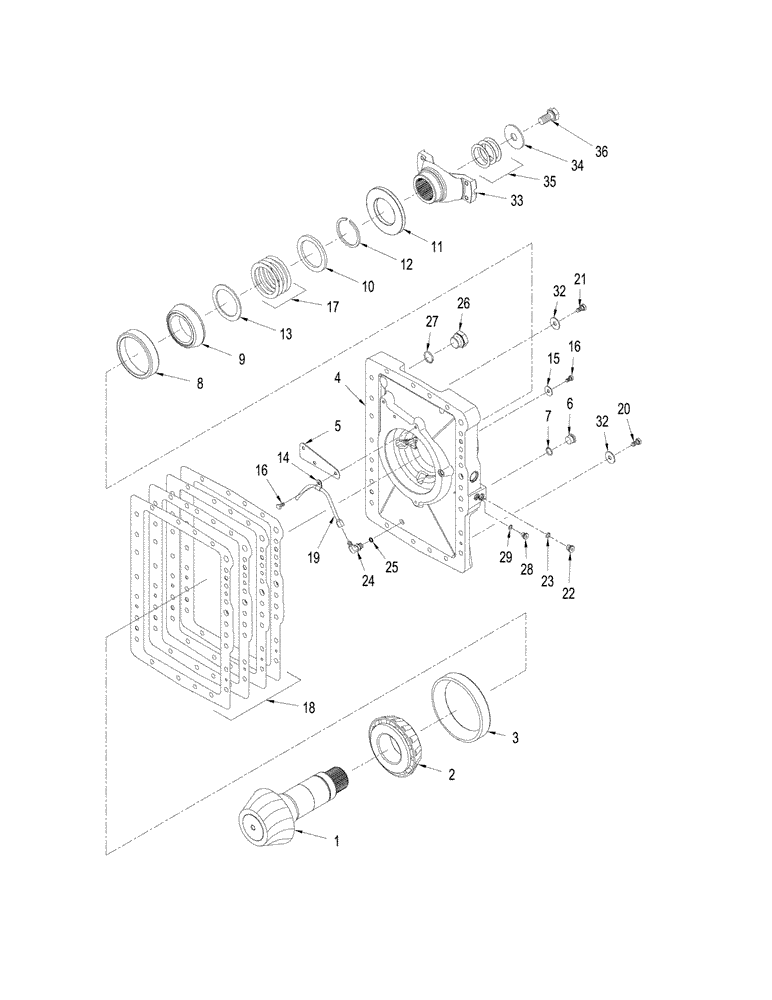

Запчасти Case IH STEIGER 330 (06-58) - AXLE ASSEMBLY - COVER, REAR AXLE (06) - POWER TRAIN

302260A1

GEAR SET

Pinion Shaft, See Figures 6-57 & 6-60 , Inc. 1

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft, Pinion, 12 T / 53 T

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

86985626

COVER

Rear Axle

1шт.

5

246146A1

BAFFLE

1шт.

6

86625138

PLUG,7/18" - 14

Inc. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

228968A2

SPACER

Thick

1шт.

11

87432424

OIL SEAL

1шт.

12

229515A1

RING, SNAP

RING SNAP M4

1шт.

13

191713A1

SPACER

Thin

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

15

95-31038

WASHER,5/16"

3шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

17

191709A1

SHIM,0.076mm Thk

1шт.

17

191711A1

SHIM,0.101mm Thk

1шт.

17

191712A1

SHIM,0.130mm Thk

1шт.

17

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

18

226492A2

SHIM,0.076mm Thk

1шт.

18

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

18

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

18

226496A2

SHIM,0.508mm Thk

1шт.

19

234432A1

TUBE

Lubrication

1шт.

20

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

22

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl. 23

1шт.

23

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

24

86985636

ELBOW

Orificed, 5/16" x 3/8", Inc. 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

220069A1

PLUG,M33 x 2, ORB

Incl. 27

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 29

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

Incl. 31

1шт.

31

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

32

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

22шт.

33

395208A1

YOKE

UNIVERSAL JOINT YOKE 7C

1шт.

STX280

1шт.

STEIGER 280

1шт.

33

395207A1

YOKE

UNIVERSAL JOINT YOKE 8C

1шт.

STX330

1шт.

STEIGER 330

1шт.

36

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

34

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

35

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

35

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

35

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

35

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.
