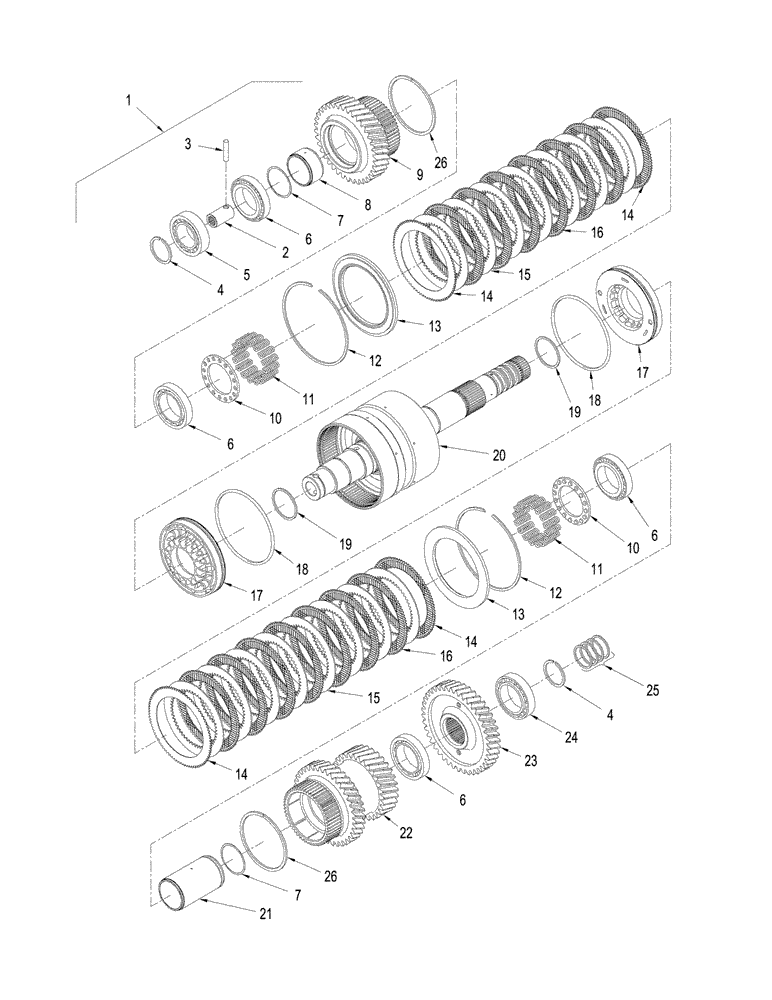

Запчасти Case IH STEIGER 330 (06-48) - POWER SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY (06) - POWER TRAIN

1

87350268

CLUTCH INPUT SHAFT

Second, Inc. 2 - 26

1шт.

2

428673A1

SPLINED COUPLING

1шт.

3

428674A1

DOWEL

1шт.

4

352378A1

RING, SNAP

RING SNAP 2,5 mm

1шт.

4

352394A1

RING, SNAP

RING SNAP 2,6 mm

1шт.

4

352397A1

RING, SNAP

RING SNAP 2,7 mm

1шт.

4

352400A1

RING, SNAP

RING SNAP 2,8 mm

1шт.

4

352815A1

RING, SNAP

RING SNAP 2,9 mm

1шт.

4

352816A1

RING, SNAP

RING SNAP 3,0 mm

1шт.

5

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

1шт.

6

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

4шт.

7

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

7

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

7

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

7

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

7

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

7

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

8

87350273

SPACER

1шт.

9

87350277

GEAR

2R

1шт.

10

87350230

PLATE

Retaining Spring

2шт.

11

362616A1

SPRING

32шт.

12

352829A1

RING, SNAP

RING SNAP

2шт.

13

87350231

PLATE

Clutch End

2шт.

14

352831A1

CLUTCH DISC

CLUTCH DISK Faced

4шт.

15

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0.094 in)

1шт.

15

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0.083 in)

1шт.

16

352832A1

CLUTCH DISC

CLUTCH DISK Faced, 7"

11-13шт.

17

87350236

PISTON

7"

2шт.

18

87431391

RING

Seal

2шт.

19

S2610S00F

RING

2шт.

20

87350301

SHAFT

Drum

1шт.

21

87350305

SPACER

Bearing

1шт.

22

87350306

GEAR

2M

1шт.

23

87350307

DRIVEN GEAR

1шт.

24

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

25

S3070S00F

RING

4шт.

26

87431394

RING

Seal

2шт.
