(06-41) - MANUAL SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY

Запчасти Case IH STEIGER 330 (06-41) - MANUAL SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN

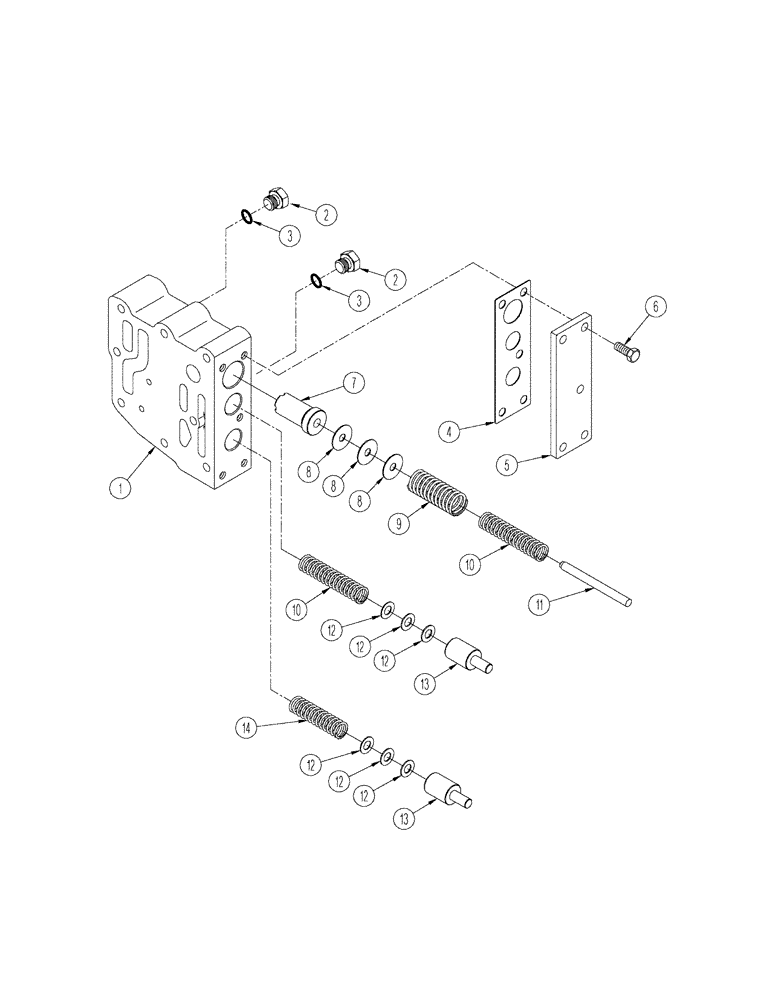

Схема запчастей Case IH STEIGER 330 - (06-41) - MANUAL SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN
8
8
12
10
1
12
12
12
4
13
3
2
3
9
7
2
12
13
5
6
14
10
11
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

428096A1

VALVE

Regulator, Inc. 1 - 14

1шт.

1

428097A1

BODY

Regulator Valve

1шт.

2

220064A1

PLUG,M14 x 1.5, ORB

Incl. 3

2шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

4

S7090S00F

GASKET

Regulator

1шт.

5

S7110S00F

COVER

Regulator

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

7

S7030S01F

VALVE

Pressure regulator

1шт.

8

S7010S00F

SHIM,.039" Thk

1шт.

9

S7120S00F

SPRING

Compression

1шт.

10

S7050S00F

SPRING

Compression

2шт.

11

S7020S00F

STEM

Pressure Regulator

1шт.

12

S7080S00F

SHIM,.031" Thk

1шт.

13

S7060S00F

VALVE

Lube Regulator

2шт.

14

S7070S00F

SPRING

Compression

1шт.
