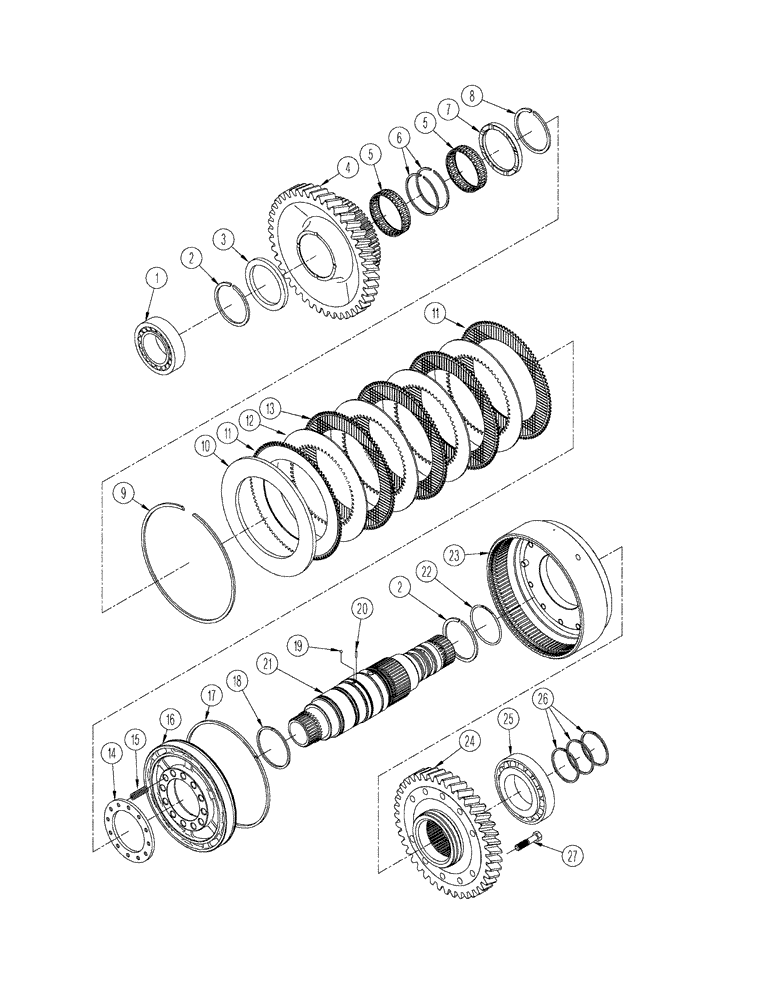

Запчасти Case IH STEIGER 330 (06-35) - MANUAL SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY (06) - POWER TRAIN

428121A1

SHAFT ASSY.

Second, Inc. 1 - 27

1шт.

1

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

1шт.

2

428163A1

RING, SNAP

RING SNAP

1шт.

3

428115A1

THRUST WASHER

1шт.

4

428116A1

GEAR

High Clutch

1шт.

5

428125A1

BEARING, NEEDLE

2шт.

6

428124A1

RING, SNAP

RING SNAP

2шт.

7

428117A1

THRUST WASHER

1шт.

8

S5040S00F

RING

1шт.

9

428108A1

RING, SNAP

RING SNAP

1шт.

10

428104A1

PLATE

Ctutch End

1шт.

11

428110A1

CLUTCH DISC

CLUTCH DISK Faced

2шт.

12

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0,094 in)

1шт.

12

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0,083 in)

1шт.

13

427534A1

CLUTCH DISC

CLUTCH DISK Faced

3шт.

14

428109A1

PLATE

Spring Return

1шт.

15

S2640S00F

SPRING

12шт.

16

428111A1

PISTON

Clutch

1шт.

17

S2630S00F

RING

1шт.

18

S4410S00F

RING

1шт.

19

428153A1

BALL

1шт.

20

428118A1

NEEDLE

1шт.

21

428113A1

SHAFT ASSY.

1шт.

22

428107A1

O-RING

1шт.

23

428106A1

DRUM

1шт.

24

428122A1

GEAR

Input

1шт.

25

428103A1

BEARING ASSY,65mm ID x 140mm OD x 51mm W

1шт.

26

S3070S00F

RING

3шт.

27

428178A1

BOLT

10шт.
