Запчасти Case IH STEIGER 330 (02-03) - AIR INTAKE (02) - ENGINE

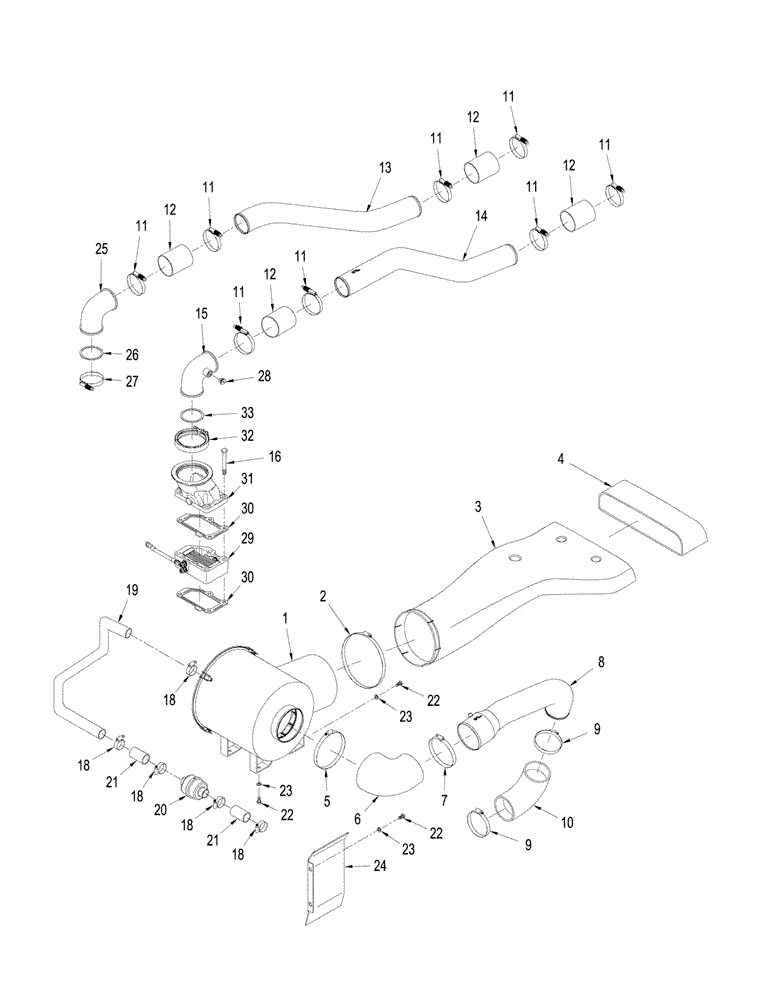

Схема запчастей Case IH STEIGER 330 - (02-03) - AIR INTAKE (02) - ENGINE
16
13
5
11
9
33
31
12
30
24
21
26
1
11
12
12
32
12
14
4
23
18
23
7
22
11
20
28
21
11
18
22
18
11
22
8
11
25
6
27
3
30
11
19
18
9
11
18
15
2
10
23
29

Артикул

Название

Примечание

Количество

1

87449306

AIR CLEANER

See Figure: 02-04

1шт.

2

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

1шт.

3

87449310

AIR DUCT

Air Intake

1шт.

4

341855A2

FOAM INSULATION

1шт.

5

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

6

87418236

ELBOW

90, Reducing

1шт.

7

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

8

87449100

AIR INTAKE TUBE,101.6-127 mm OD x 537, 165.2 mm L

Air Intake

1шт.

9

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

10

335853A1

ELBOW

Air Intake

1шт.

11

87599619

CLAMP,90.5mm - 98.3mm

8шт.

12

329737A1

HOSE

110 mm (4")

4шт.

13

87449065

AIR INTAKE TUBE,3.5" OD

Charged Air

1шт.

14

364260A3

AIR INTAKE TUBE,88.9 mm OD, 773.3, 150.1 mm Length

1шт.

15

J918327

ELBOW

90, Air Intake

1шт.

16

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

4шт.

18

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

19

87449319

TUBE

Aspirator

1шт.

20

307123A1

VALVE

Aspirator Exhaust

1шт.

21

370853A2

HOSE

Aspirator, Cut From 31-2901

3шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

24

87449316

SHIELD

Heat

1шт.

25

87450405

ELBOW

90, Air Intake

1шт.

26

87434592

SEAL,2.62mm Thk x 82.22mm ID

1шт.

27

87434593

CLAMP,104.39mm - 105.66mm

V-Band

1шт.

28

J008465

PLUG

1шт.

29

87753829

HEATER

Air Intake

1шт.

30

87335272

GASKET

Connection

2шт.

31

87340026

AIR INTAKE

1шт.

32

J069053

CLAMP,66.54mm ID

V-Band

1шт.

33

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Air Transfer

1шт.

Выбрано товаров: 32
