Запчасти Case IH STEIGER 330 (02-02) - RADIATOR MOUNTING (02) - ENGINE

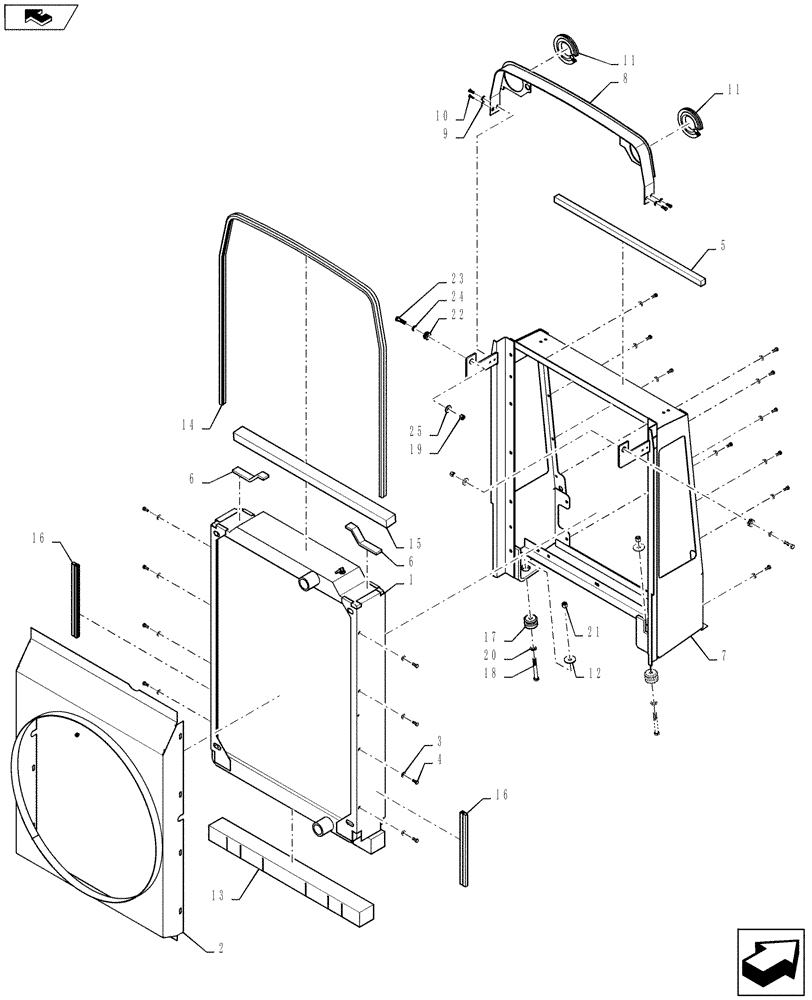

Схема запчастей Case IH STEIGER 330 - (02-02) - RADIATOR MOUNTING (02) - ENGINE
7
2
16
6
6
12
3
20
11
19
11
13
17
10
25
home
8
5
22
21
18
14
9
1
4
15
23
16
24

Артикул

Название

Примечание

Количество

1

87311249

RADIATOR

1шт.

2

298266A2

SHROUD

Engine Fan

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

18шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

18шт.

5

336684A1

SEAL

Upper Radiator

1шт.

6

336689A1

SEAL

200 mm (8")

2шт.

7

87430172

FRAME

Radiator

1шт.

8

373582A2

BRACKET

Support, Upper Radiator Frame

1шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

10

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

11

364921A1

SEAL

Cut From 90-2894T1

2шт.

12

19-961

WASHER,17/32" x 1 1/2" x 1/8"

2шт.

13

336685A1

SEAL

835 mm (33")

1шт.

14

336690A1

SEAL

2660 mm (105"), cut from 90-6833T1

1шт.

15

336688A1

SEAL

845 mm (33")

1шт.

16

336691A1

SEAL

342 mm (13"), cut from 90-2894A1

2шт.

17

435465A1

RUBBER MOUNTING

Radiator Frame

2шт.

18

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

M13.5 x 24 x 2.5

2шт.

21

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

22

179601A1

RUBBER BLOCK

RUBBER BLOCK

2шт.

23

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 25
