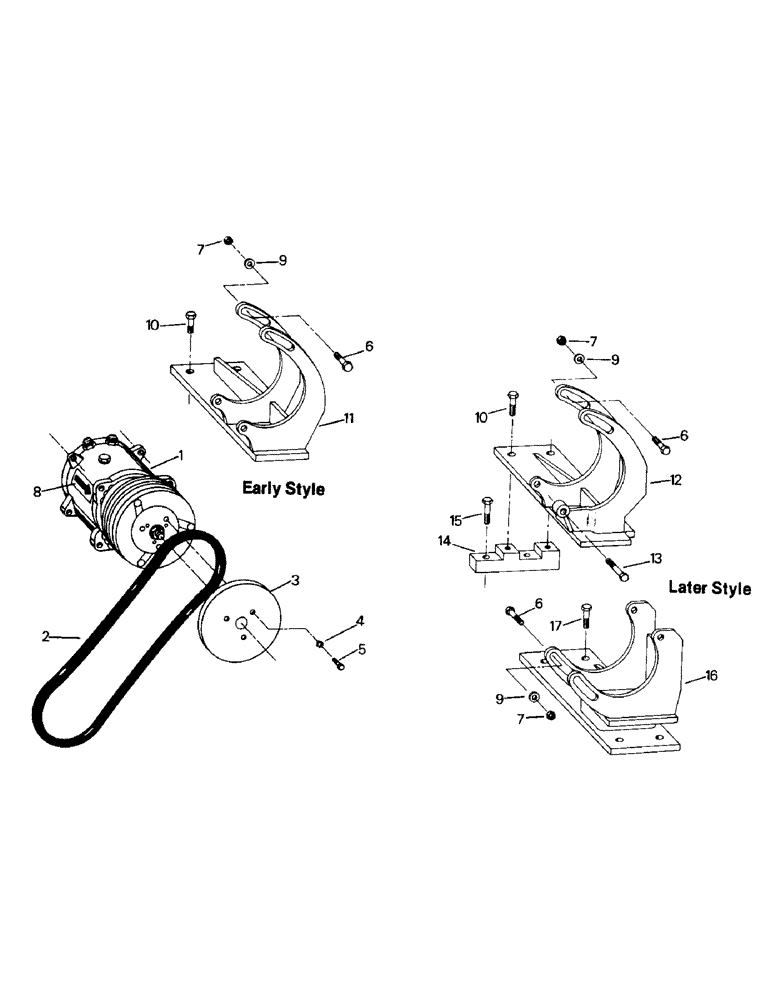

Запчасти Case IH STEIGER (03-14) - A/C COMPRESSORS AND MOUNTS, 903 CUMMINS (03) - Climate Control

1

Compressor (Fig. 3-15)

1шт.

2

45-259

BELT,0.66" W x 51.00" L

0.66" W x 51.00" L

1шт.

3

25-372

SHIELD

Dust Shield

1шт.

4

19-890

LOCK WASHER,Int Tooth, 1/4"

Washer, 1/4

3шт.

5

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Capscrew, 1/4 NC x 1/2

3шт.

6

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew, M10-1.5 x 34 mm

4шт.

7

19-455

NUT

M/0

4шт.

8

26-304

DECAL

Compressor

1шт.

9

19-108

WASHER,7/16"

7/16

2шт.

10

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

Capscrew, 3/8 NC x 1-1/2

4шт.

11

2-1721

ANCHOR

Mt, Compressor (Early)

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

12

NAP

Mt, Compressor (Service w/Ref. 16)

1шт.

13

11500882

Capscrew, M10-1.5 x 45 mm

1шт.

14

90-1019T1

Spacer (w/#12 only)

2шт.

15

19-1109

BOLT,Hex, 3/8" - 16 x 2", Gr 8

Capscrew, 3/8 NC x 2

4шт.

16

2-1849T2

ANCHOR

Mt, Compressor (Later)

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

17

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Capscrew, 3/8 NC x 1

4шт.
