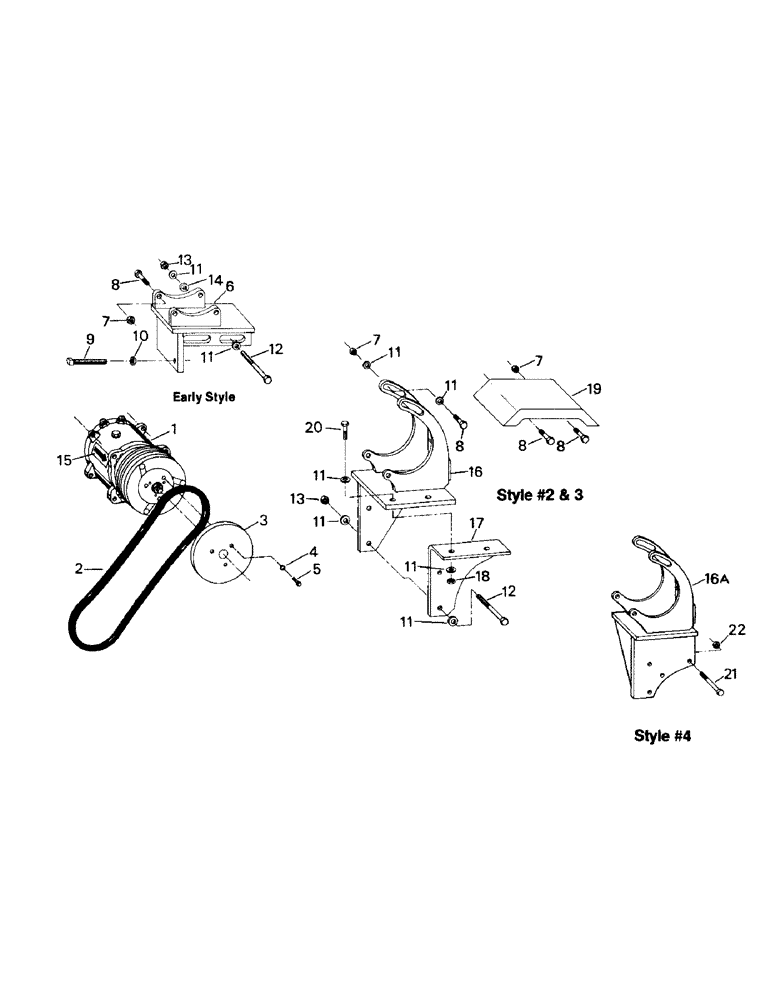

Запчасти Case IH STEIGER (03-13) - A/C COMPRESSORS AND MOUNTS, 3306 CAT (03) - Climate Control

1

Compressor (Fig. 3-15)

1шт.

2

6-1428

V-BELT,0.53" W x 46.00" L

(Used w/standard 26" fan before S/N Break) 0.53" W x 46.00" L

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

90-2151T1

V-BELT,0.53" W x 46.50" L

(Used w/30" Field installed before S/N Break) 0.53" W x 46.50" L

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

1-2820

V-BELT,0.53" W x 50.10" L

Used w/DI Engine After SN Break 0.53" W x 50.10" L

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

3

25-194

Dust Shield 1/4"-28, G5, Thk

1шт.

4

19-890

LOCK WASHER,Int Tooth, 1/4"

Washer, 1/4

3шт.

5

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Capscrew, 1/4 NC x 1/2

3шт.

6

NAP

Mt. Compressor (service w/kit P/N 35-1078 which contains No. 16, 17 & mt hdwe)

1шт.

7

19-455

NUT

M10

2шт.

8

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew, M10-1.5 x 34 mm

2шт.

9

19-357

SET SCREW

3/8 NC x 3

1шт.

10

19-824

BOLT,3/8"-16, G5

Nut, 3/8 NC

1шт.

11

19-107

WASHER

3/8

1шт.

12

19-671

BOLT,Hex, 3/8" - 16 x 3", Gr 8

Capscrew, 3/8 NC x 3

1шт.

13

19-823

NUT,3/8"-16, G5

3/8 NC

1шт.

14

1-2365

Bushing

1шт.

15

26-304

DECAL

1шт.

16

1-4017

ANCHOR

Mt, Comp (style #2)

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

1-7122

Mt, Comp (style #3)

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

16a

90-2421T1

MOUNTING PARTS

Mt, Comp (w/DI Engine) (style #4)

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

17

1-4019

STABILIZER

Leg. Mt (use w/01-4017)

1шт.

1-7121

Leg. Mt (use w/01-7122)

1шт.

18

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

2шт.

19

1-4027

GUARD

(use w/16 & 16A)

1шт.

20

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew, 3/8 NC x 1-1/4

2шт.

21

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Capscrew, 3/8 NC x 2-1/2

4шт.

22

232-4136

LOCK NUT,3/8"-16, GC

Nut, 3/8 NC

4шт.
