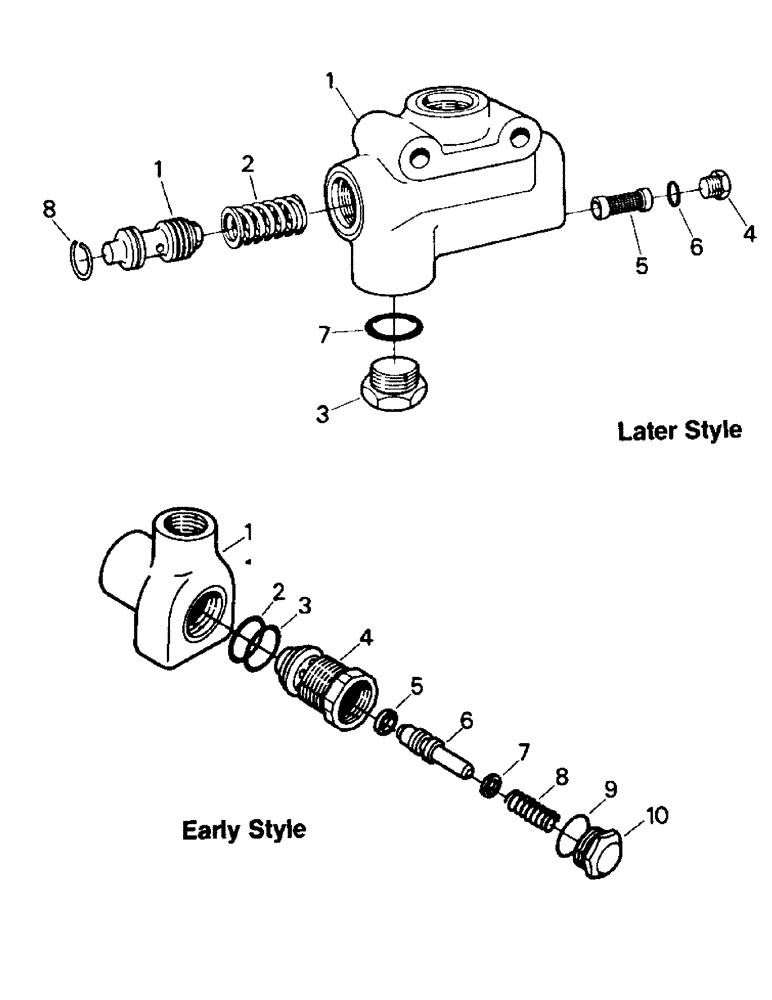

Запчасти Case IH STEIGER (08-12) - RELIEF VALVES (07) - HYDRAULICS

18-1542

VALVE, PRESSURE RELI

Relief Valve (Early Style) (service w/later style), consists of Ref. 1-10

1шт.

1

18-1586

Housing

1шт.

2

18-1583

O-RING

1шт.

3

18-817

O-RING

1шт.

4

18-1587

VALVE, PRESSURE RELI

Relief Body

1шт.

18-1417

SEAL

Relief Poppet & Seal Assy (consists of Refs. 5 & 6)

1шт.

7

NSS

NOT SOLD SEPARAT

Shim (.040)

1шт.

NSS

NOT SOLD SEPARAT

Shim (.020)

1шт.

18-1509

SHIM

(.010)

1шт.

8

1-4458

SPRING

1шт.

9

18-1582

O-RING

1шт.

10

18-923

PLUG

Relief Cap

1шт.

50-1209T91

VALVE, PRESSURE RELI

Relief Valve (replaces P/N 18-1542 and P/N50-1139T91 - Code E), consists of Ref. 1-8, later style

1шт.

A recent change was made to the relief valve increasing the pressure from 2250 P.S.I. (P/N 50-1139T91 to 2500 P.S.I. P/N 50-1209T91. Coordinated with this change were pressure reliefchanges to the relief cartridge in the priority valve and the relief assey in the hydraulic control valve. When ordering a new relief valve the latest style (2500 P/S.I.)should be ordered and the appropriate pressure changes made to the priority valve and Hydraulic control valve to assure proper functionof the gydraulic system.

1шт.

1

50-1878T1

SPOOL

Control Valve Sub-Assy, later style

1шт.

2

50-1141T1

SPRING

later style

1шт.

3

1-2198

PLUG

Assy (w/O-Ring), later style

1шт.

4

31-1551

Plug Assy (w/O-Ring), later style

1шт.

5

50-1143T1

SCREEN

Filter, later style

1шт.

6

31-1552

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

later style 3-1, .301" ID x .064" Thk

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

later style

1шт.

8

50-1142T1

RING, SNAP

Snap Ring, later style

1шт.
