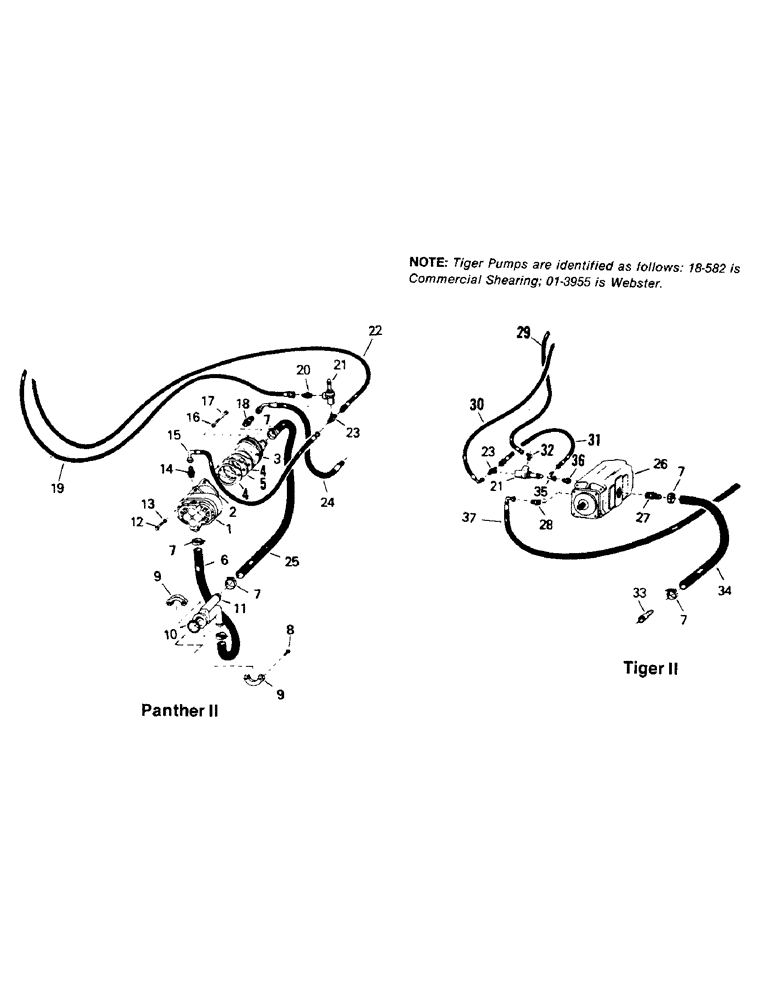

Запчасти Case IH STEIGER (08-09) - HYDRAULIC PUMPS AND MOUNTING, PANTHER II AND TIGER II (07) - HYDRAULICS

1

18-1157

PUMP

steering

1шт.

50-3555T91R

REMAN-HYD PUMP

STEIGER PANTHER,STEIGER TIGER,Both SERIES II (1/73-12/75),Reman for New P/N 18-1157

1шт.

50-3555T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

18-1176

GASKET

1шт.

3

18-1352

PUMP

implement

1шт.

4

18-1175

GASKET

2шт.

5

18-1177

PLATE, backup

1шт.

6

32-257

HOSE

suction

1шт.

7

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

hose

4шт.

8

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

4шт.

9

18-561

X

CLAMP, flange

2шт.

10

18-560

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

18-1174

MANIFOLD, hyd.

1шт.

12

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" NC x 1-1/2"

2шт.

13

19-119

LOCK WASHER,1/2"

1/2"

2шт.

14

18-623

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER (DS-12)

1шт.

15

32-258

HOSE

ASSY.

1шт.

16

19-117

LOCK WASHER,3/8"

3/8"

1шт.

17

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

CAPSCREW, 3/8" NC x 4"

2шт.

18

31-517

ADAPTER (DS-12)

1шт.

19

32-243

HOSE ASSY.

1шт.

20

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER

1шт.

21

18-12

VALVE

relief

1шт.

22

32-244

HOSE

ASSY.

1шт.

23

31-456

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

1шт.

24

32-242

HOSE ASSY.

1шт.

25

32-264

HOSE, suction

1шт.

26

18-582

HYDRAULIC PUMP

PUMP (Service w/01-3955) (See parts figures)

1шт.

18-1307

GASKET

(For 18-582)

1шт.

18-1176

GASKET

(For 01-3955)

1шт.

27

31-267

ADAPTER

(DS-24)

1шт.

28

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER (DS-12)

1шт.

29

18-542

HOSE

ASSY.

1шт.

30

32-237

HOSE ASSY.

1шт.

31

18-543

HOSE

ASSY.

1шт.

32

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER

1шт.

33

31-373

PIPE

ADAPTER

1шт.

34

18-599

HOSE

suction (W/18-582) 60"

1шт.

31-1049

HOSE, SUCTION (W/01-3955) 68"

1шт.

35

31-331

ADAPTER,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

90 degrees

1шт.

36

31-361

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER (DS-12)

1шт.

37

18-538

HOSE

pressure

1шт.
