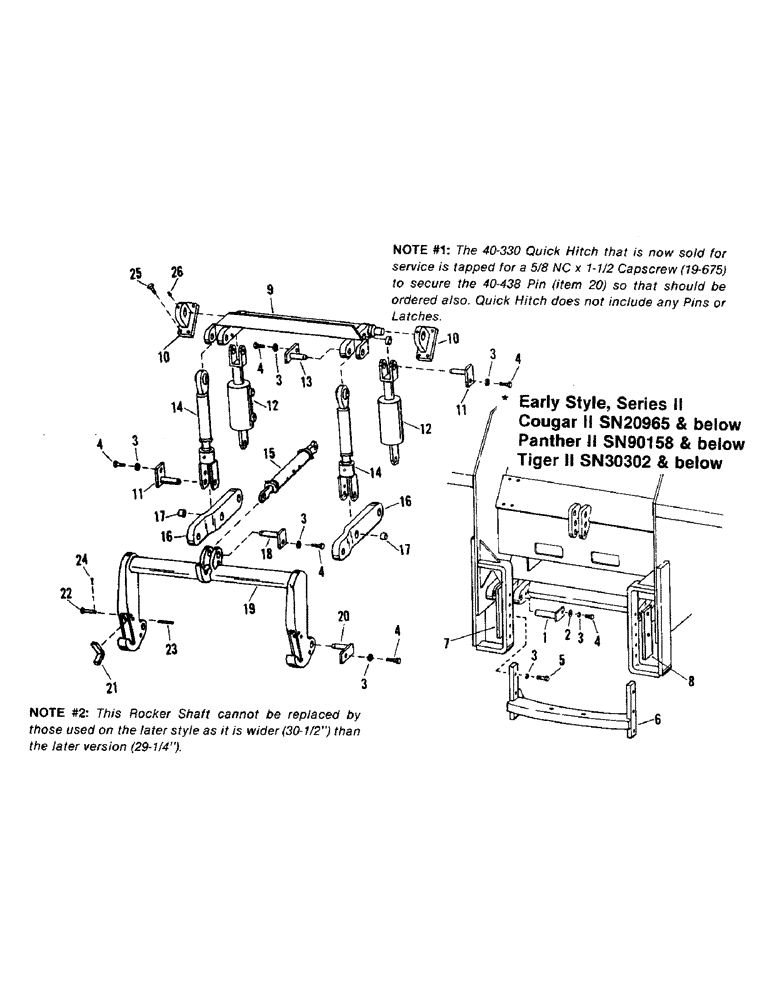

Запчасти Case IH STEIGER (10-02) - 3-POINT HITCH, SERIES II, EARLY STYLE Options & Miscellaneous

1

40-382

PIN

2шт.

2

19-109

WASHER,1/2"

14шт.

3

19-119

LOCK WASHER,1/2"

1/2"

14шт.

4

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 NC x 1-1/4 (See note #1)

14шт.

5

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

CAPSCREW, 1/2 NC x 2-1/2

4шт.

6

50-16

HANGER, drawbar

1шт.

7

40-401

SPACER GUIDE, LH

1шт.

8

40-402

SPACER GUIDE, RH

1шт.

9

50-5

ROCKER SHAFT (See note #2)

1шт.

10

40-126

BLOCK

PILLOW BLOCK

2шт.

11

40-430

PIN

4шт.

12

CYLINDER (See parts page)

2шт.

13

40-440

PIN

2шт.

14

50-19

ADJ. ARM ASSY.

2шт.

15

40-220

LOCK NUT

CENTER LINK ASSY.

1шт.

16

50-2

LINK

LOWER LINK

2шт.

17

15-21

RING RACE

BUSHING

4шт.

18

40-432

PIN

2шт.

19

40-330

HITCH ASSY, TRAILER

QUICK HITCH (See note #1)

1шт.

20

40-438

PIN

2шт.

21

40-327

HANDLE

(Service w/40-504)

2шт.

22

19-257

CLEVIS PIN,1/2" x 3"

PIN

2шт.

23

19-258

PIN, ROLL,1/2" x 2 1/2", Slotted

Pin, 1/2" x 2 1/2", Slotted

2шт.

24

19-358

PIN

HAIR PIN

2шт.

25

19-61

BOLT,5/8" - 11 x 2 1/2", Gr 5

CAPSCREW, 5/8 NC x 2-1/4

8шт.

26

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.
