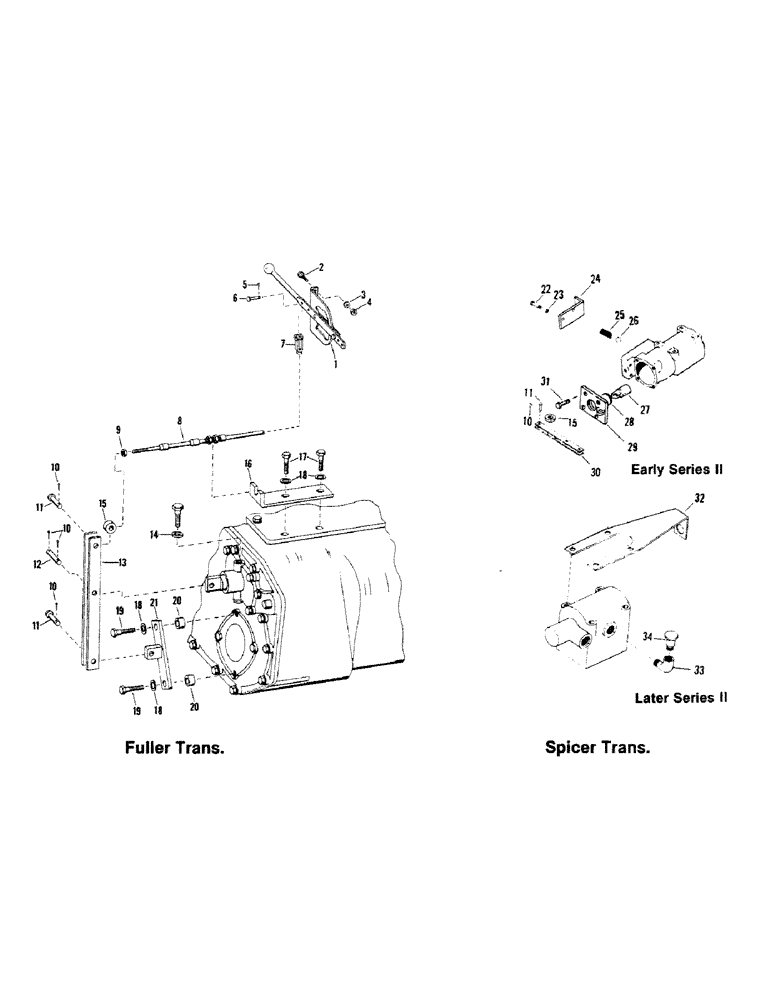

Запчасти Case IH STEIGER (04-10) - TWO-SPEED SHIFT LINKAGES -- SERIES II (04) - Drive Train

1

30-20

LEVER

2-speed

1шт.

12-706

KNOB, 2-speed lever

1шт.

2

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 NC x 1

2шт.

3

19-115

LOCK WASHER,1/4"

1/4"

2шт.

4

19-76

NUT,1/4"-20, G5

1/4 NC

2шт.

5

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

6

19-144

CLEVIS PIN,1/4" x 0.77"

1шт.

7

19-141

CLEVIS

YOKE, 1/4 NF

1шт.

8

30-17

CABLE ASSY.

CABLE, 2-speed shift

1шт.

9

19-89

NUT,1/4"-28, G5

1/4 NF

1шт.

10

19-168

COTTER PIN,1/8" x 1"

4шт.

11

19-142

CLEVIS PIN,1/2" x 1.36"

1/2 x 1-3/8

2шт.

12

5-210

PIN

1шт.

13

4-446

SHIFT LEVER ARM

2шт.

14

4-442

SHIM, 2-speed detent

2шт.

15

19-499

SET COLLAR

1шт.

16

4-443

CABLE BRACKET

1шт.

17

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 NC x 1-3/4

2шт.

18

19-117

LOCK WASHER,3/8"

3/8"

2шт.

19

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

CAPSCREW, 3/8 NC x 2-1/2

2шт.

20

4-445

SPACER

2-speed shift

2шт.

21

4-444

ANCHOR

LEVER ARM ANCHOR

1шт.

22

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREWS

2шт.

23

19-116

LOCK WASHER,5/16"

5/16"

2шт.

24

4-349

PLATE, cable mt.

1шт.

25

11-11

SPRING

1шт.

26

12-438

BALL

1шт.

27

55-11

ADAPTER

1шт.

28

12-439

SEAL

1шт.

29

55-14

BRACKET, shifter

1шт.

30

55-25

LINKAGE, shifter

1шт.

31

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW

1шт.

32

55-181

BRACKET, cable mt.

1шт.

33

31-42

ELBOW, 3/8" pipe

1шт.

34

31-149

BREATHER

1шт.
