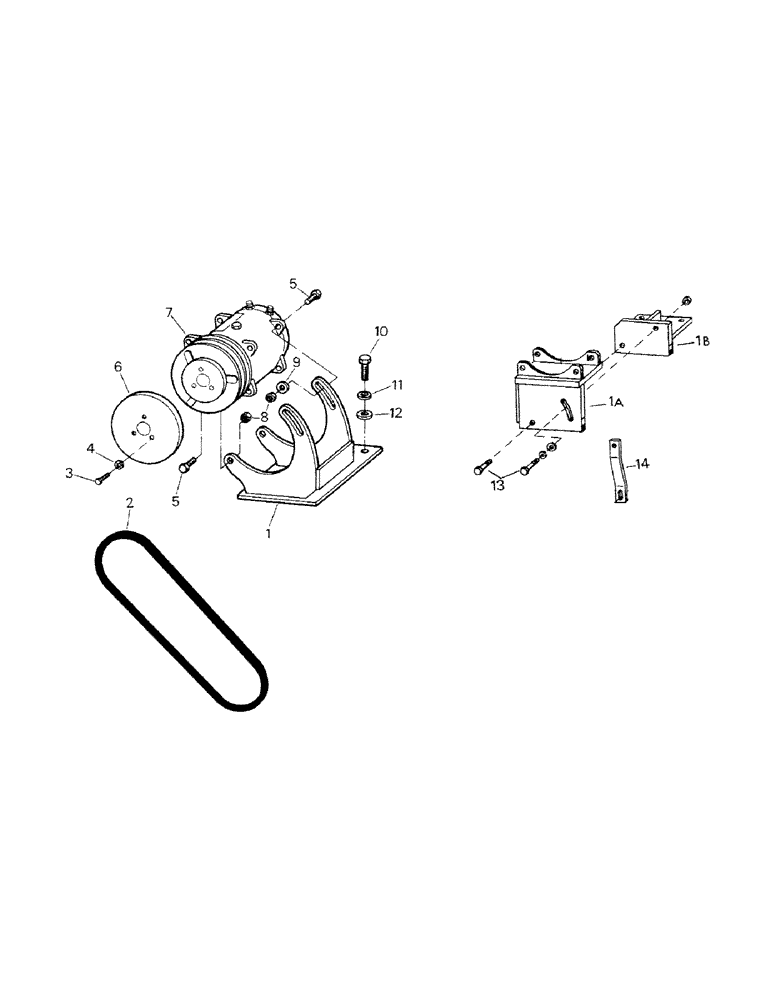

Запчасти Case IH STEIGER (03-03) - COMPRESSOR MOUNTINGS - SERIES II (03) - Climate Control

1

6-1472

MOUNTING PARTS

MT. COMP. (3208 on & after SN break)

1шт.

1a

6-1436

MT. COMP. (3208 before SN break)

1шт.

If Mount 06-1436 is needed, it is recommended to order 06-1472 Mount & 06-1451 Belt. Serial # Brakes ST 225 - 3482 ST 200 - 9096 CC 225 - 45078 RC 200 - 50058 RC 225 - 55102 CC 200 - 40046

1шт.

6-1422

MT. COMP. (3160)

1шт.

1b

6-1443

MT. (use w/06-1436 only)

1шт.

2

6-1451

V-BELT,0.53" W x 51.75" L

(Use w/06-1472 only) 0.53" W x 51.75" L

1шт.

6-1428

V-BELT,0.53" W x 46.00" L

(Use w/1A only) 0.53" W x 46.00" L

1шт.

3

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

CAPSCREW

3шт.

4

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER

3шт.

5

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW, M10-1.5 x 34 mm

4шт.

6

25-194

DUST SHIELD 1/4"-28, G5, Thk

1шт.

7

COMPRESSOR, see figure 3-6

1шт.

8

19-455

NUT

4шт.

9

19-108

WASHER,7/16"

2шт.

10

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

3шт.

11

19-117

LOCK WASHER,3/8"

3/8"

3шт.

12

19-107

WASHER

3шт.

13

19-516

X,Hex, 7/16"-14 x 1 3/4", G8

CAPSCREW, 7/16" NC x 1-3/4"

2шт.

19-118

LOCK WASHER,7/16"

7/16"

2шт.

19-108

WASHER,7/16"

FLAT WASHER, 7/16"

2шт.

19-79

NUT,7/16"-14, G5

7/16" NC

2шт.

14

6-1456

BRACKET, comp. support (use w/06-1436)

1шт.
