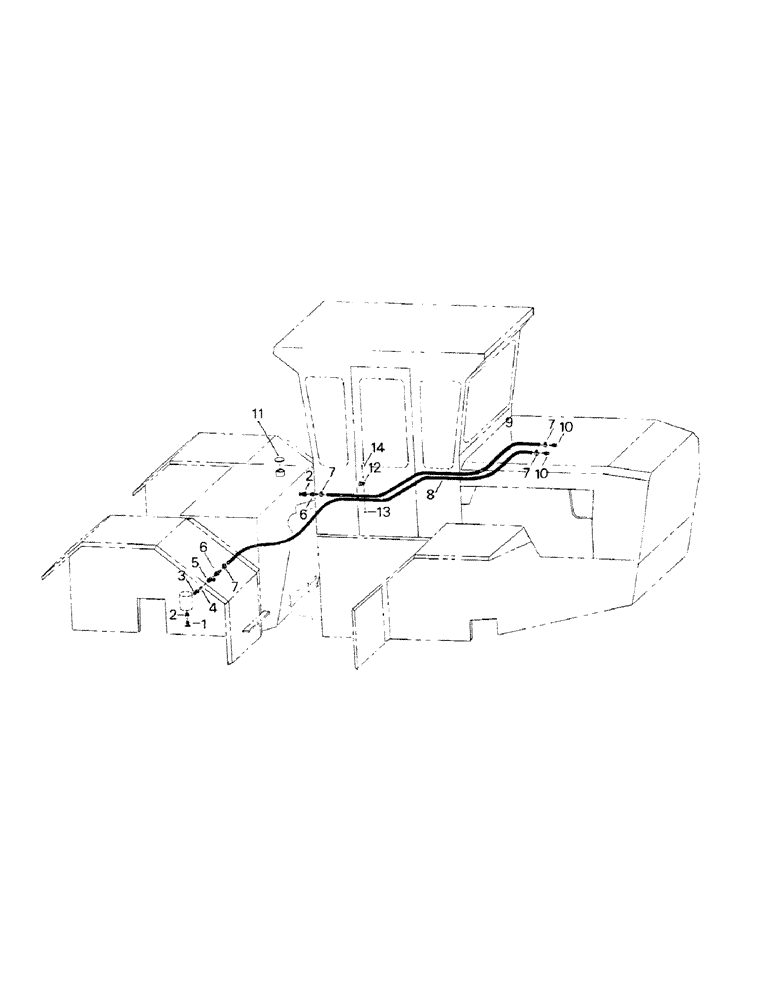

Запчасти Case IH STEIGER (07-01) - FUEL GROUP (02) - FUEL SYSTEM

1

31-157

COCK, DRAIN

DRAIN CORK

1шт.

2

31-74

REDUCER

BUSHING

1шт.

3

31-292

REDUCER BUSHING

2шт.

4

31-160

NIPPLE, LUBE

CLOSE NIPPLE

1шт.

5

31-58

VALVE

GATE VALVE

1шт.

6

31-137

FITTING

CONNECTOR

2шт.

7

32-29

HOSE CLAMP

CLAMP

4шт.

8

3-63

FUEL HOSE

HOSE, suction

1шт.

9

3-61

HOSE

return

1шт.

10

31-164

CONNECTOR, ELEC

CONNECTOR

2шт.

11

8-2

CAP

vented

1шт.

12

60-33

CLAMP

1шт.

13

19-567

NUT,#10-24

#10 UNC

1шт.

14

19-11

SCREW, #10 x 1-1/4 UNC

1шт.
