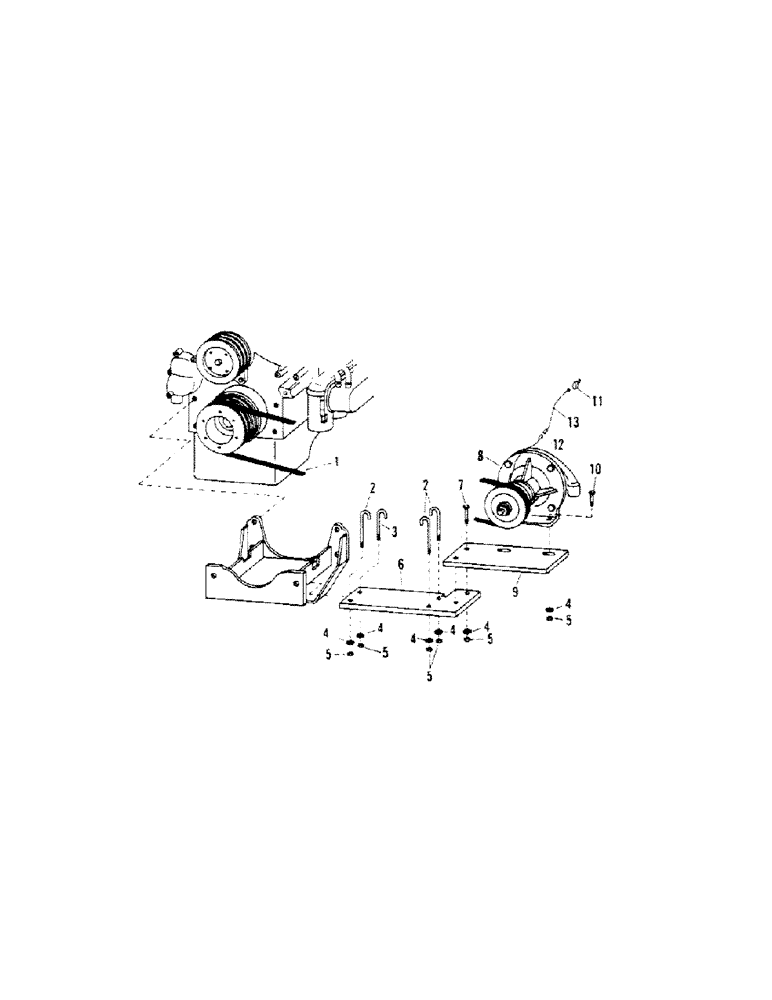

Запчасти Case IH STEIGER (10-22) - SPRAYER PUMP ATTACHMENT Options & Miscellaneous

35-83

KIT

SPRAYER PUMP KIT, consists of ref. nos. 1-13

1шт.

1

6-1428

V-BELT,0.53" W x 46.00" L

0.53" W x 46.00" L

1шт.

2

1-402

CLAMP

3шт.

3

1-398

BRACKET

CLAMP

1шт.

4

19-107

WASHER

8шт.

5

19-78

SPECIAL NUT,3/8"-16, G5

8шт.

6

1-403

BRACKET

1шт.

7

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW

2шт.

8

1-2219

PUMP

(repl. 27-111)

1шт.

9

1-404

ANCHOR

MOUNT

1шт.

10

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

2шт.

11

22-24

SWITCH

1шт.

12

22-57

TERMINAL CONNECTOR,Male

CONNECTOR Male

1шт.

13

22-603

ELECTRICAL WIRE

WIRE

1шт.

1-2219

PUMP

SPRAYER PUMP ASSEMBLY, consists of ref. nos. 1-16

1шт.
