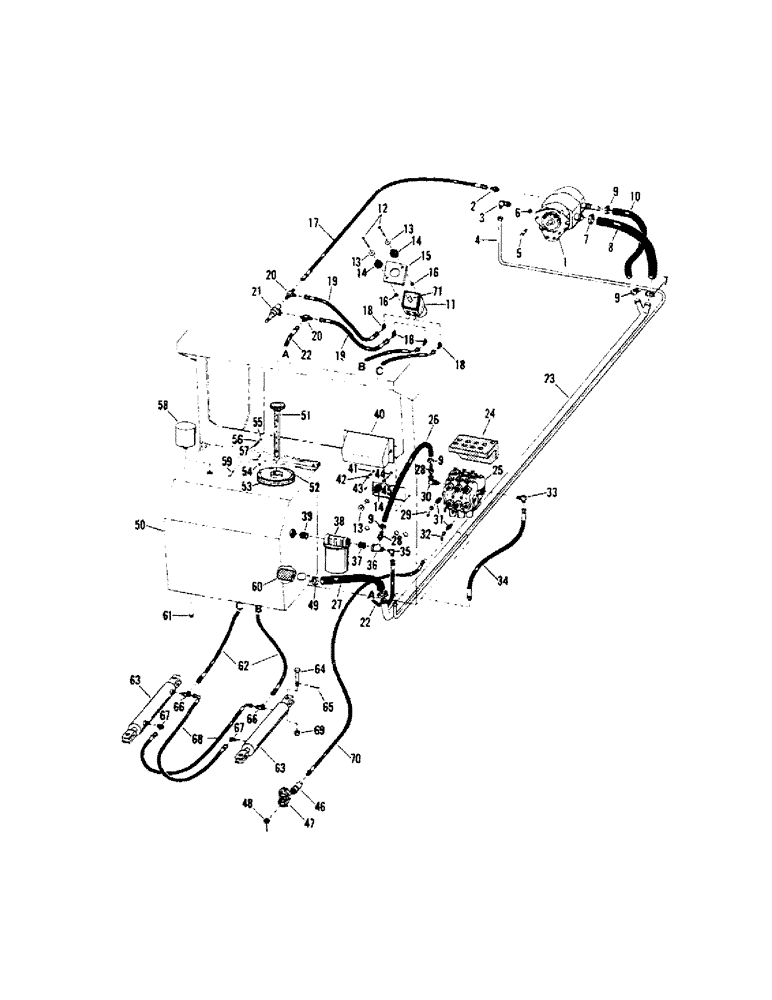

Запчасти Case IH STEIGER (08-09) - HYDRAULIC SYSTEM - SERIES II (07) - HYDRAULICS

1

HYD. PUMP

1шт.

The 18-789 pump is illustrated here, however, after the SN breaks shown, the 18-1306, dual inlet commercial shearing, was used for a very short time after which the 18-1415, single inlet commercial shearing, was used. Commercial shearing pumps can be identified by their cast iron construction in case I.D. plate is missing. The 18-1415 pump, single inlet, is the only pump available for service replacement and has been used extensively on both Series I & II. See page 8-02 for adapters needed.

1шт.

2

ADAPTER

1шт.

The 18-789 pump is illustrated here, however, after the SN breaks shown, the 18-1306, dual inlet commercial shearing, was used for a very short time after which the 18-1415, single inlet commercial shearing, was used. Commercial shearing pumps can be identified by their cast iron construction in case I.D. plate is missing. The 18-1415 pump, single inlet, is the only pump available for service replacement and has been used extensively on both Series I & II. See page 8-02 for adapters needed.

1шт.

3

ADAPTER

1шт.

The 18-789 pump is illustrated here, however, after the SN breaks shown, the 18-1306, dual inlet commercial shearing, was used for a very short time after which the 18-1415, single inlet commercial shearing, was used. Commercial shearing pumps can be identified by their cast iron construction in case I.D. plate is missing. The 18-1415 pump, single inlet, is the only pump available for service replacement and has been used extensively on both Series I & II. See page 8-02 for adapters needed.

1шт.

4

18-1701

TUBE, pressure

1шт.

5

19-56

BOLT,9/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 9/16" NC x 1-3/4"

2шт.

6

19-95

NUT,9/16"-18, G8

9/16" NC

2шт.

7

32-135

CLAMP,#44, 2.25"-2.56", T-Bolt

2шт.

8

32-158

HOSE

1-1/2" I.D.

1шт.

9

32-130

CLAMP,1.40"-1.56", T-Bolt

4шт.

10

32-157

HOSE, 1" I.D.

1шт.

11

18-5

VALVE

STEERING VALVE

1шт.

12

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

CAPSCREW, 3/8" NC x 2-1/2"

2шт.

13

19-500

WASHER

8шт.

14

18-511

MOUNTING PARTS

MOUNT, rubber

5шт.

15

4-361

PLATE

mt.

1шт.

16

4-360

SPACER

2шт.

17

32-177

HOSE

1шт.

18

31-323

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER

4шт.

19

32-178

HOSE

2шт.

20

31-322

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

2шт.

21

18-12

VALVE

relief

1шт.

22

32-152

HOSE

1шт.

23

1-243

TUBE, suction

1шт.

24

4-364

COVER, foam

1шт.

25

VALVE, hyd. control (see parts figure)

1шт.

26

32-156

HOSE

1шт.

27

32-159

HOSE, 2"

1шт.

28

31-318

HOSE

NIPPLE

2шт.

29

31-328

FITTING

ADAPTER, 90 deg. long elbow

3шт.

30

31-327

ADAPTER

90 deg.

1шт.

31

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

ADAPTER, straight

6шт.

32

31-331

ADAPTER,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

90 deg. short elbow

3шт.

33

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER, 90 deg.

1шт.

34

32-153

HOSE

1шт.

35

31-325

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ADAPTER, 90 deg.

1шт.

36

31-310

TEE, reducer

1шт.

37

31-309

NIPPLE, 1-1/4" x 3"

1шт.

38

18-497

FILTER

ASSY.

1шт.

18-498

FILTER, ENGINE OIL

FILTER ELEMENT

1шт.

18-669

O-RING

1шт.

39

31-26

NIPPLE, LUBE

NIPPLE, 1" close

1шт.

40

4-390

COVER, hyd. valve

1шт.

41

19-105

WASHER,1/4", SAE

FLAT WASHER, 1/4"

2шт.

42

19-115

LOCK WASHER,1/4"

1/4"

2шт.

43

19-76

NUT,1/4"-20, G5

1/4" NC

2шт.

44

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8" NC x 2"

3шт.

45

19-109

WASHER,1/2"

FLAT WASHER, 1/2"

3шт.

QUICK COUPLER (see figure 8-30) consists of ref. nos. 46-48

1шт.

49

32-135

CLAMP,#44, 2.25"-2.56", T-Bolt

2шт.

50

4-258

TANK, HYDRAULIC OIL

TANK, hyd. oil

1шт.

51

6-1506

DIPSTICK

GAUGE

1шт.

52

27-39

COVER

1шт.

53

27-41

GASKET

1шт.

54

19-77

NUT,5/16"-18, G5

5/16" NC

6шт.

55

19-79

NUT,7/16"-14, G5

7/16" NC

6шт.

56

19-118

LOCK WASHER,7/16"

7/16"

6шт.

57

19-108

WASHER,7/16"

FLAT WASHER, 7/16"

6шт.

58

18-503

FILTER

pressure relief

1шт.

18-1633

BREATHER

ELEMENT FOR 18-503

1шт.

59

19-35

BOLT,7/16" - 14 x 2", Gr 5

CAPSCREW, 7/16" NC x 2"

6шт.

60

18-496

FILTER SCREEN

FILTER, suction

1шт.

61

31-34

PLUG

3/4" pipe

1шт.

62

32-206

HOSE

2шт.

63

STEERING CYLS. (see parts figure)

2шт.

64

19-862

BOLT,Hex, 1 1/8" - 7 x 4", Gr 8

cyl. mt. (repl. 02-079)

4шт.

65

19-125

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), (needed only w/19-100 nut) 3/16" x 2 1/2"

4шт.

66

31-322

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

(use w/pipe port cyl.)

2шт.

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(use w/o-ring port cyl.)

2шт.

67

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

ADAPTER, 90 deg. (use w/pipe port cyl.)

2шт.

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, 90 deg. (use w/o-ring port cyl.)

2шт.

68

32-176

HOSE

2шт.

69

19-863

LOCK NUT,1 1/8"-7, GC

NUT, self-locking (repl. 19-100 castle nut)

2шт.

70

32-154

HOSE ASSY.

6шт.
