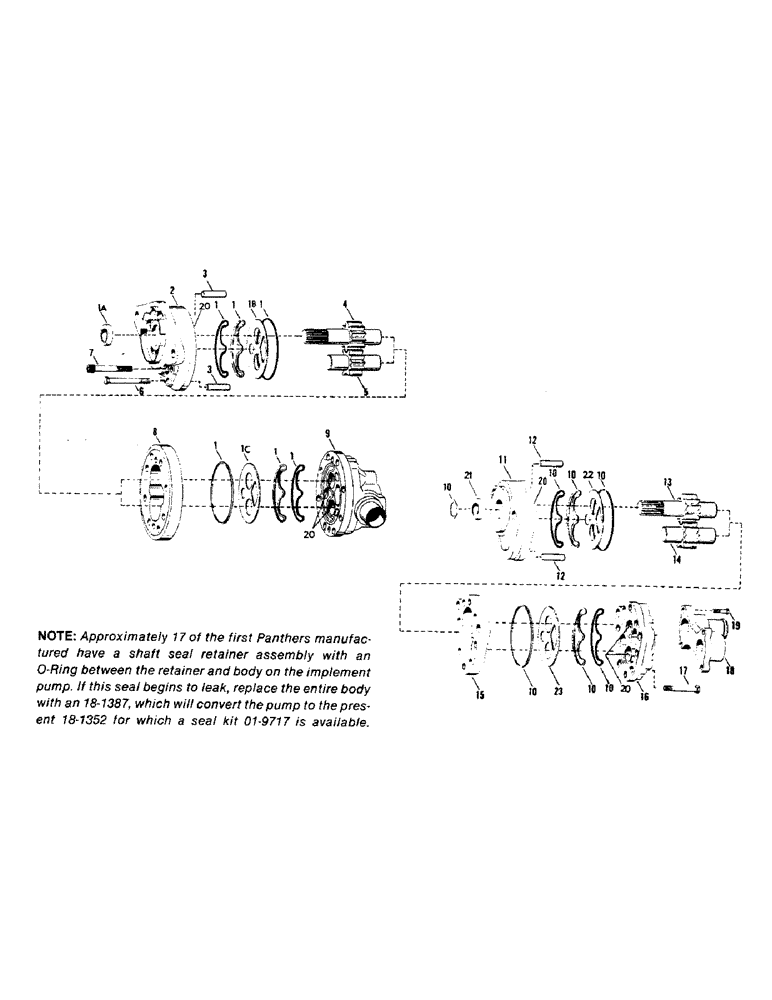

Запчасти Case IH STEIGER (08-15) - HYDRAULIC PUMP, PANTHER II, STEERING PUMP (07) - HYDRAULICS

1-9

18-1157

PUMP

steering

1шт.

50-3555T91R

REMAN-HYD PUMP

STEIGER SERIES II PANTHER (1/73-12/75),Reman for New P/N 18-1157

1шт.

50-3555T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

1-9717

SEAL KIT

KIT (Incl. 1, 1A, 1B & 1C) (Replaces 18-1379)

1шт.

1a

1-9487

OIL SEAL

SEAL

1шт.

1b

1-9710

LARGE PLATE

WEAR PLATE, front

1шт.

1c

1-9709

LARGE PLATE

WEAR PLATE, rear

1шт.

2

18-1380

BODY

(Incl. 1A & 20)

1шт.

3

18-1381

PIN

DOWEL PIN

1шт.

4

18-1382

GEAR, drive

1шт.

5

18-1383

GEAR, idler

1шт.

6

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

CAPSCREW, 3/8 x 2-1/2 NC

6шт.

7

18-809

CAPSCREW, 3/8 x 2-1/2 NC skt hd

2шт.

8

1-9707

LARGE PLATE

PLATE, gear (Repl. 18-1384)

1шт.

9

18-1385

COVER (Incl. ref 20)

1шт.

18-1352

PUMP

(10-19) PUMP, implement

1шт.

10

1-9717

SEAL KIT

KIT (Also incl. refs 21-23) (Replaces 18-1386), implement pump

1шт.

11

18-1387

BODY (Incl. #11 & 20), implement pump

1шт.

12

18-1388

PIN

DOWEL PIN, implement pump

2шт.

13

18-1389

GEAR, drive, implement pump

1шт.

14

18-1390

FRONT IDLER

GEAR, idler, implement pump

1шт.

15

18-1391

PLATE, gear, implement pump

1шт.

16

18-1392

COVER, rear (Incl. #20), implement pump

1шт.

17

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

CAPSCREWS, 3/8 NC x 2-3/4, implement pump

6шт.

18

18-1393

MANIFOLD, implement pump

1шт.

19

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREWS, 5/16 NC x 1, implement pump

4шт.

20

1-4196

NEEDLE BEARING

BEARING, needle, implement pump

4шт.

21

1-9487

OIL SEAL

SEAL 1 3/8" OD x .877 ID Shaft, implement pump

1шт.

22

1-9710

LARGE PLATE

WEAR PLATE, implement pump

1шт.

23

1-9709

LARGE PLATE

WEAR PLATE, implement pump

1шт.
