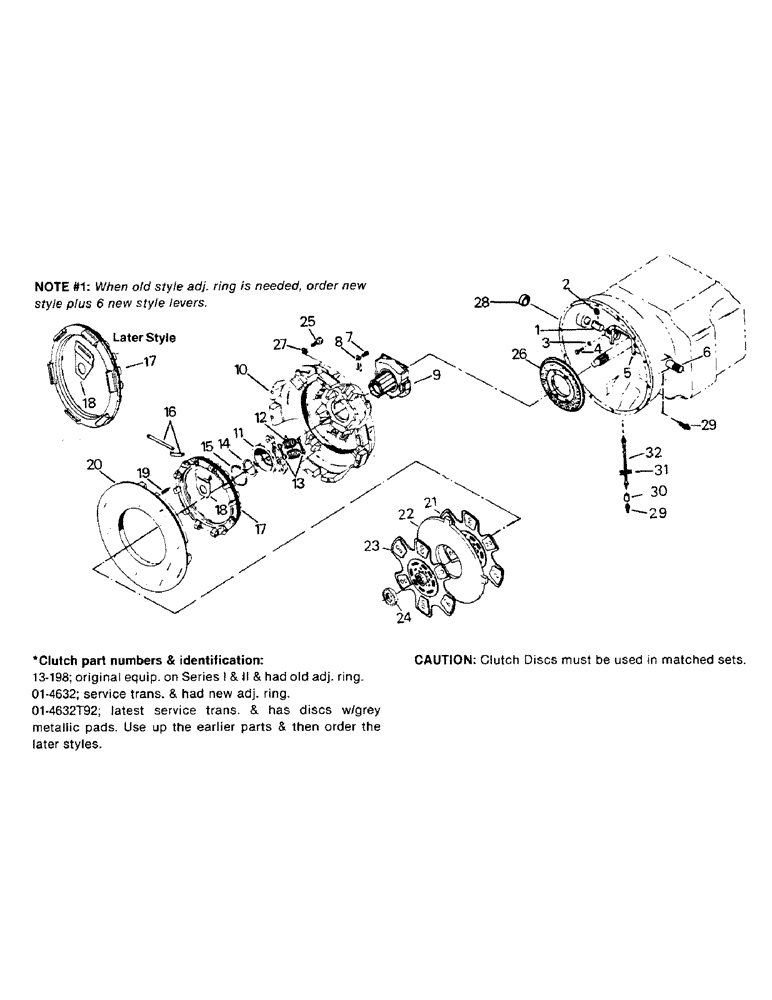

Запчасти Case IH STEIGER (04-17) - 15-1/2" CLUTCH ASSEMBLY, PANTHER II (04) - Drive Train

1

13-130

SHAFT

SHORT SHAFT

1шт.

2

13-129

WASHER

SPARE PART WASHER

2шт.

3

19-118

LOCK WASHER,7/16"

7/16"

2шт.

4

65-59

BOLT,Hex, M10 x 60mm

CAPSCREW, 7/16 x 1-3/16 UNC

2шт.

5

13-79

YOKE

UNIVERSAL JOINT YOKE RELEASE YOKE

1шт.

6

13-204

SHAFT

LONG SHAFT

1шт.

13-202

COVER ASSY

(7-20) PRESSURE PLATE ASSEMBLY, Includes: Ref. 7 - 20

1шт.

7

13-160

SPARE PART BOLT & LOCK WASHER

1шт.

8

13-159

STRIP

LOCK, adjusting ring

1шт.

9

1997782C2R

REMAN-CLUTCH PLATE

Bearing And Sleeve Assembly (replaces 13-208)

1шт.

9

1997782C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

REF. 9 13-208 SUBS TO A WHICH IS A CLUTCH. IT IS A CORRECT SUB (PER PARTS NOTES). THE VENDOR WILL NOT LONGER SUPPLY THIS BEARING ASSY.

1шт.

9

1997780C2R

REMAN-CLUTCH PLATE

Remanufactured 14" Clutch Assembly

1шт.

9

1997780C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

10

13-203

RING

SPARE PART RING, flywheel

1шт.

11

13-206

SCREW

RETAINER, release sleeve

1шт.

12

13-165

SPRING

SPRING, pressure

6шт.

13

13-166

PIVOT

PIVOT, pressure spring

6шт.

14

13-209

OIL SEAL

RING, release sleeve

2шт.

15

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

RING, snap

2шт.

16

13-162

SPARE PART PIN (Old style only)

6шт.

13-163

SPARE PART CLIP (Old style only)

3шт.

17

13-158

OIL SEAL

RING, adj. (Old style) (See note #1)

1шт.

1-4630

GASKET

RING, adj. (New style)

1шт.

18

13-161

LEVER

LEVER (Old style)

6шт.

1-4629

LEVER

LEVER (New style)

6шт.

19

13-214

SPRING

SPARE PART SPRING, return

4шт.

20

13-213

LARGE PLATE

PLATE, LARGE PLATE, pressure

1шт.

21

13-201

DISC

DISC, rear (Ceramic pads)

1шт.

13-201T2

DISC

DISC, rear (Metallic pads)

1шт.

22

13-200

LARGE PLATE

PLATE, LARGE PLATE, intermediate

1шт.

23

13-199

DISC

DISC, front (Ceramic pads)

1шт.

13-199T2

DISC

DISC, front (Metallic pads)

1шт.

24

66-39

BALL BEARING,1.1811" ID x 2.8346" OD x 0.7486"

BEARING, pilot

1шт.

25

19-892

CAPSCREW,Hex, 7/16" - 14 x 2 1/2", Gr 8

CAPSCREW, 7/16 NC x 2-1/4

8шт.

26

13-194

DISC

CLUTCH BRAKE Spline is 2.00"

1шт.

Ref: Clutch part number & ID note on figure 4-17 service trans. should read service clutch in both locations in this paragraph.

1шт.

27

19-118

LOCK WASHER,7/16"

7/16"

8шт.

28

31-90

PLUG

PLUG

2шт.

29

31-93

FITTING

ZERK

2шт.

30

31-56

COUPLING

COUPLING

1шт.

31

22-95

GROMMET

GROMMET

1шт.

32

32-104

HOSE

HOSE

1шт.

13-1002

KIT

ANTI-RATTLE SPRING KIT (Not shown)

1шт.
