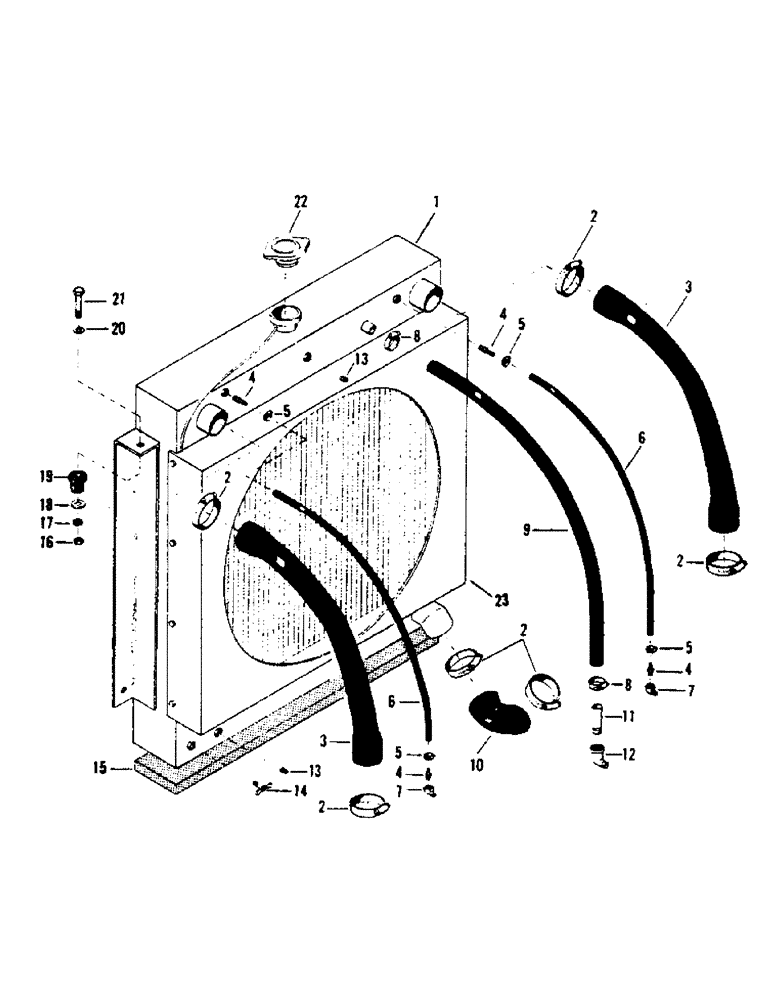

Запчасти Case IH STEIGER (04-14) - RADIATOR, ATTACHING, TIGER II (04) - Drive Train

1

45-155

RADIATOR

1шт.

2

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP, hose

6шт.

3

32-277

HOSE,2.25" ID x 15.00", SAE 20R4 CLASS R

RADIATOR HOSE, , Outlet 2.25" ID x 15.00", SAE 20R4 CLASS R

2шт.

4

31-164

CONNECTOR, ELEC

ADAPTER

4шт.

5

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, hose

4шт.

6

32-268

HOSE, vent

2шт.

7

31-207

ELBOW

ST. ELBOW

2шт.

8

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, hose

2шт.

9

32-246

HOSE, shunt

1шт.

10

32-232

HOSE

lower

1шт.

11

31-275

LUBE NIPPLE

NIPPLE

1шт.

12

31-220

ADAPTER

ELBOW

1шт.

13

31-37

PLUG

2шт.

14

31-157

COCK, DRAIN

DRAIN COCK

1шт.

15

54-209

PAD, foam

1шт.

16

19-81

NUT,1/2"-13, G5

1/2" NC

4шт.

17

19-119

LOCK WASHER,1/2"

1/2"

4шт.

18

19-571

RUBBER WASHER

4шт.

19

18-511

MOUNTING PARTS

MOUNT, rubber

4шт.

20

19-109

WASHER,1/2"

flat

4шт.

21

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW, 1/2" NC x 2-1/2"

4шт.

22

10-21

CAP

radiator

1шт.

23

1-6305

SHROUD

1шт.
