(04-13) - RADIATOR AND ATTACHING, PANTHER II, STANDARD

Запчасти Case IH STEIGER (04-13) - RADIATOR AND ATTACHING, PANTHER II, STANDARD (04) - Drive Train

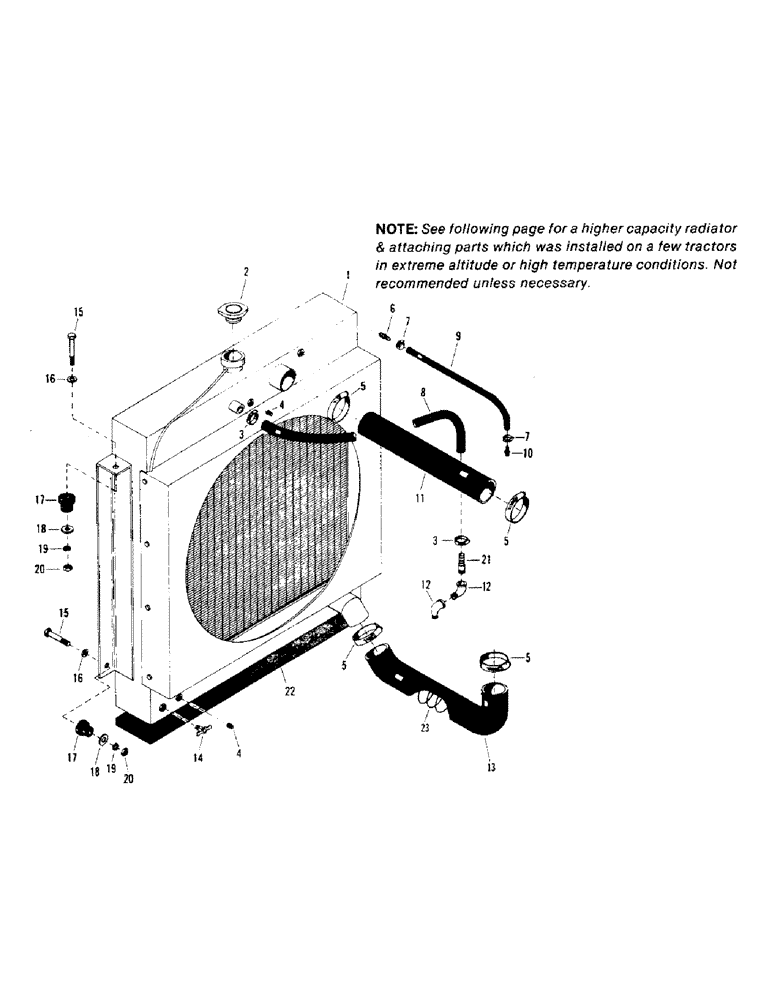

Схема запчастей Case IH STEIGER - (04-13) - RADIATOR AND ATTACHING, PANTHER II, STANDARD (04) - Drive Train
5
21
6
5
15
15
12
18
12
5
20
17
9
13
17
18
2
10
16
5
11
4
22
3
19
16
7
20
23
14
7
1
4
3
8
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10-34

RADIATOR

1шт.

2

10-21

CAP

radiator

1шт.

3

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

4

31-37

PLUG

2шт.

5

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

4шт.

6

31-137

FITTING

ADAPTER

1шт.

7

32-30

HOSE CLAMP,#8, 0.50/0.91 Type M Worm

CLAMP

2шт.

8

32-266

HOSE, shunt

1шт.

9

53-62

HOSE

1шт.

10

31-164

CONNECTOR, ELEC

CONNECTOR

1шт.

11

32-253

HOSE

upper

1шт.

12

31-22

ELBOW

ST. ELBOW

2шт.

13

32-252

HOSE,2.50" ID x 12.60", SAE 20R4 CLASS R

RADIATOR HOSE, , Lower 2.50" ID x 12.60", SAE 20R4 CLASS R

1шт.

14

31-157

COCK, DRAIN

HOSE, lower

1шт.

15

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

DRAIN COCK

4шт.

CAPSCREW, 1/2" NC x 2-1/2"

1шт.

16

19-109

WASHER,1/2"

FLAT WASHER, 1/2"

4шт.

17

18-511

MOUNTING PARTS

MOUNT, rubber

4шт.

18

18-571

WASHER

4шт.

19

19-119

LOCK WASHER,1/2"

1/2"

4шт.

20

19-81

NUT,1/2"-13, G5

1/2" NC

4шт.

21

31-248

FITTING

KING NIPPLE

1шт.

22

54-209

PAD, foam

1шт.

23

11-17

SPRING

1шт.
