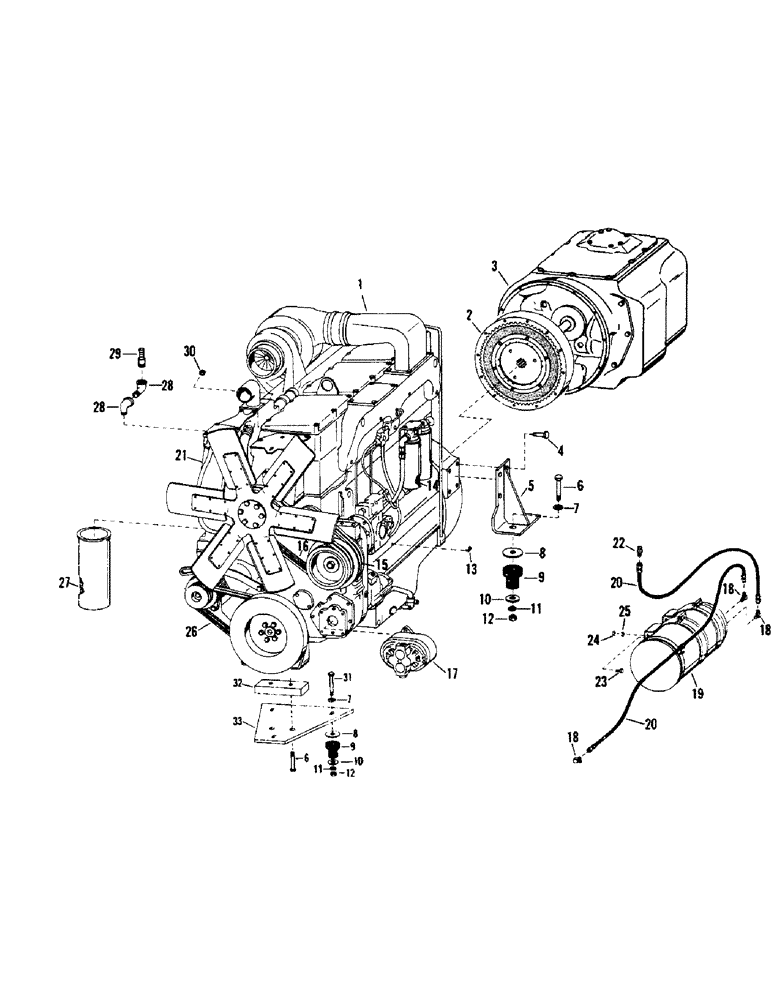

Запчасти Case IH STEIGER (04-05) - ENGINE AND ATTACHING PARTS, PANTHER II (04) - Drive Train

1

6-1467

ENGINE, Cummins 855

1шт.

2

CLUTCH (See clutches)

1шт.

3

TRANSMISSION (See trans.)

1шт.

4

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 NC

8шт.

5

51-288

MOTOR MOUNT

2шт.

6

19-278

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

CAPSCREW, 5/8 x 3-1/2 NC

6шт.

7

19-111

WASHER,5/8"

5/8

6шт.

8

51-128

WASHER

mount

6шт.

9

6-1414

ANCHOR

MOUNT

6шт.

10

19-408

WASHER

6шт.

11

19-120

LOCK WASHER,5/8"

5/8"

6шт.

12

19-83

NUT,5/8"-11, G5

5/8 NC

6шт.

13

31-514

ROD, CONNECTING

FITTING, compression

1шт.

14

28-35

FUEL FILTER

ELEMENT, fuel

2шт.

15

6-1546

SET OF BELTS,0.45" W x 43.00" L

V-Belt, Water Pump 0.45" W x 43.00" L

1шт.

16

6-1547

SET OF BELTS,0.88" W x 45.50" L

V-Belt 0.88" W x 45.50" L

1шт.

17

18-1352

PUMP

hyd

1шт.

18-1157

PUMP

steering

1шт.

50-3555T91R

REMAN-HYD PUMP

STEIGER SERIES II PANTHER (1/73-12/75),Reman for New P/N 18-1157

1шт.

50-3555T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

18

31-528

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

(Replaces 31-547)

3шт.

19

1-5568

FILTER

LUBERFINER ASSY. (See a following page for complete parts)

1шт.

28-28

FILTER, ENGINE OIL

ELEMENT

1шт.

6-98

SEAL

O-RING

1шт.

20

1-263

HOSE

ASSY.

2шт.

21

28-31

FILTER

ELEMENT, water filter (See note)

1шт.

22

31-268

ADAPTER,9/16"-18, 37 Degree x 3/8"-18, NPTF

JIC

1шт.

23

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW

4шт.

24

19-77

NUT,5/16"-18, G5

5/16 NC

4шт.

25

19-116

LOCK WASHER,5/16"

5/16"

4шт.

26

6-1545

SET OF BELTS,0.55" W x 46.42" L

V-Belt, Alternator 0.55" W x 46.42" L

1шт.

27

28-18

FILTER

ELEMENT, oil

1шт.

6-99

OIL SEAL

O-RING

1шт.

28

31-22

ELBOW

ST. ELBOW

2шт.

29

31-248

FITTING

KING NIPPLE

1шт.

30

31-178

BUSHING

, Serial Range: 1/2-3/8

1шт.

31

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW, 5/8 NC x 4

7шт.

32

51-286

BAR

1шт.

33

51-285

MT. MOTOR

1шт.
