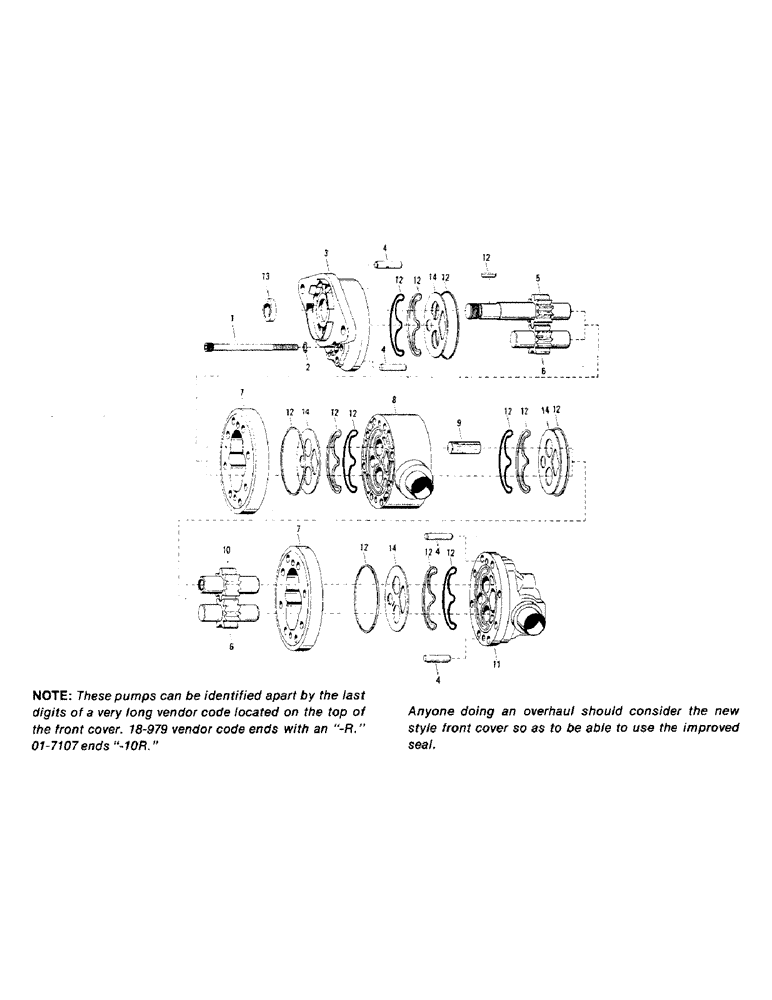

Запчасти Case IH STEIGER (08-14) - HYDRAULIC PUMPS, 3306 ENGINE, COUGAR II (07) - HYDRAULICS

18-979

PUMP, HYDRAULIC

PUMP ASSEMBLY, old version

1шт.

1-7107

PUMP, HYDRAULIC

PUMP ASSEMBLY, new version, StarRite, replaces 18-979

1шт.

1

18-1261

CAPSCREW Hex Soc Hd, 3/8"-16 x 6 1/4"

8шт.

2

18-1260

SPACER

WASHER

8шт.

3

18-1251

BODY ASSEMBLY, for 18-979 pump

1шт.

1-7118

BODY

ASSEMBLY, Includes 13 and 01-9713, for 1-7107 pump

1шт.

1-9713

NEEDLE BEARING

BEARING (Inside of body assembly)

2шт.

4

18-1259

DOWEL PIN

2шт.

5

18-1254

GEAR

SHAFT, drive

1шт.

6

18-1257

GEAR

idler

2шт.

7

18-1258

LARGE PLATE

PLATE, gear, for 18-979 pump

2шт.

1-9541

LARGE PLATE

PLATE, gear, for 1-7107 pump

2шт.

8

18-1252

BEARING PLATE ASSEMBLY, for 18-979 pump

1шт.

1-9714

BEARING PLATE ASSEMBLY, Includes 01-9713, for 1-7107 pump

1шт.

1-9713

NEEDLE BEARING

BEARINGS (Inside plate assembly)

4шт.

9

18-1255

COUPLING

1шт.

10

18-1256

GEAR

drive

1шт.

11

18-1253

COVER ASSEMBLY, for 18-979 pump

1шт.

1-9542

COVER ASSY

COVER ASSEMBLY (Includes 01-97913 bearings)

1шт.

1-9713

NEEDLE BEARING

BEARINGS (In 01-9542)

2шт.

12

18-1263

PACKAGE, REPAIR

MINOR REPAIR KIT, Includes 12 - 14, used on 18-979 pump only

1шт.

1-9715

SEAL PACKAGE

MINOR REPAIR KIT, Includes Ref. 12 - 14, used in 01-7107 only, or use 2 35-1122 seal kits

1шт.

13

1-9400

OIL SEAL

SEAL ,1-3/8 OD x 1.003 ID, used in 01-7107 only, not available for 18-979

1шт.

14

1-9409

HEAD

WEAR PLATE

4шт.
