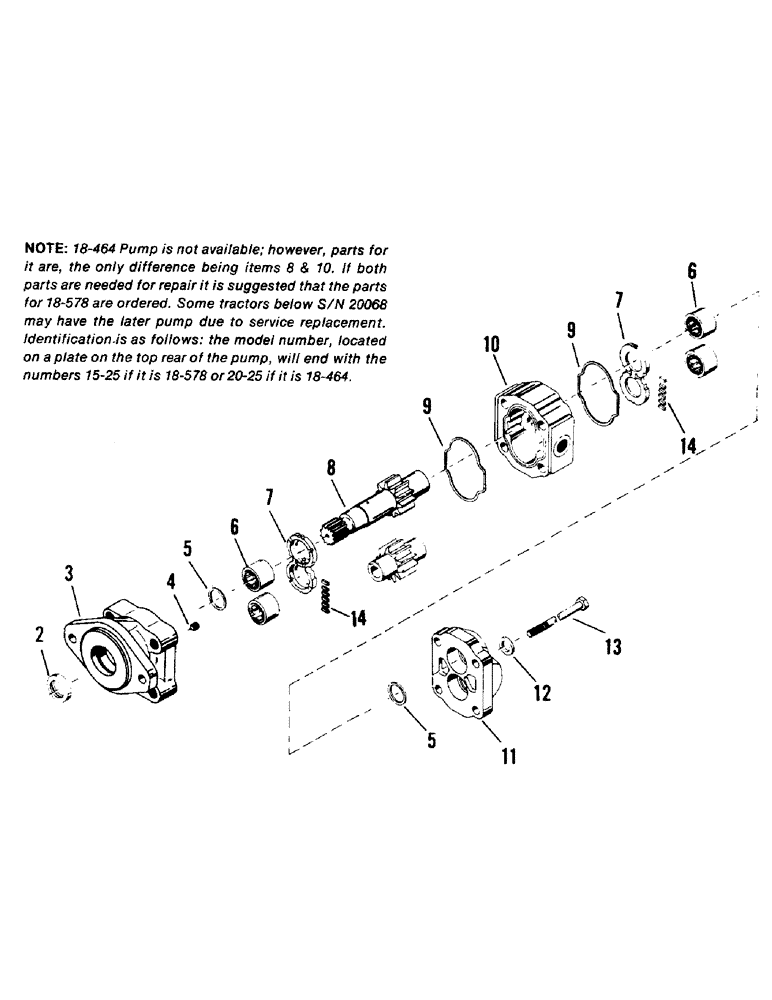

Запчасти Case IH STEIGER (08-11) - IMPLEMENT PUMP, COUGAR I AND II W/D 333 ENGINE (07) - HYDRAULICS

1

18-464

PUMP

hydraulic SN 20068 and below (Not available, use 18-578)

1шт.

18-578

PUMP

hydraulic SN 20069 and up

1шт.

2

18-769

SEAL

1шт.

3

18-770

COVER, front

1шт.

4

18-772

PLUG

1шт.

5

18-771

SEALING RING

ring

2шт.

6

18-773

ROLLER BEARING

BEARING

4шт.

7

18-774

LARGE PLATE

PLATE, thrust

2шт.

8

18-935

GEAR-SET

SHAFT & GEAR (18-578 pump)

1шт.

18-776

SHAFT & GEAR (18-464 pump)

1шт.

9

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

SEAL, gasket

2шт.

10

18-936

GEAR

HOUSING (18-578 pump)

1шт.

18-778

HOUSING (18-464 pump)

1шт.

11

18-779

PORT

COVER, rear

1шт.

12

18-780

WASHER

4шт.

13

18-781

CAPSCREW

4шт.

14

18-775

SEAL

pocket

2шт.

18-1175

GASKET

pump to engine (Not shown)

1шт.
