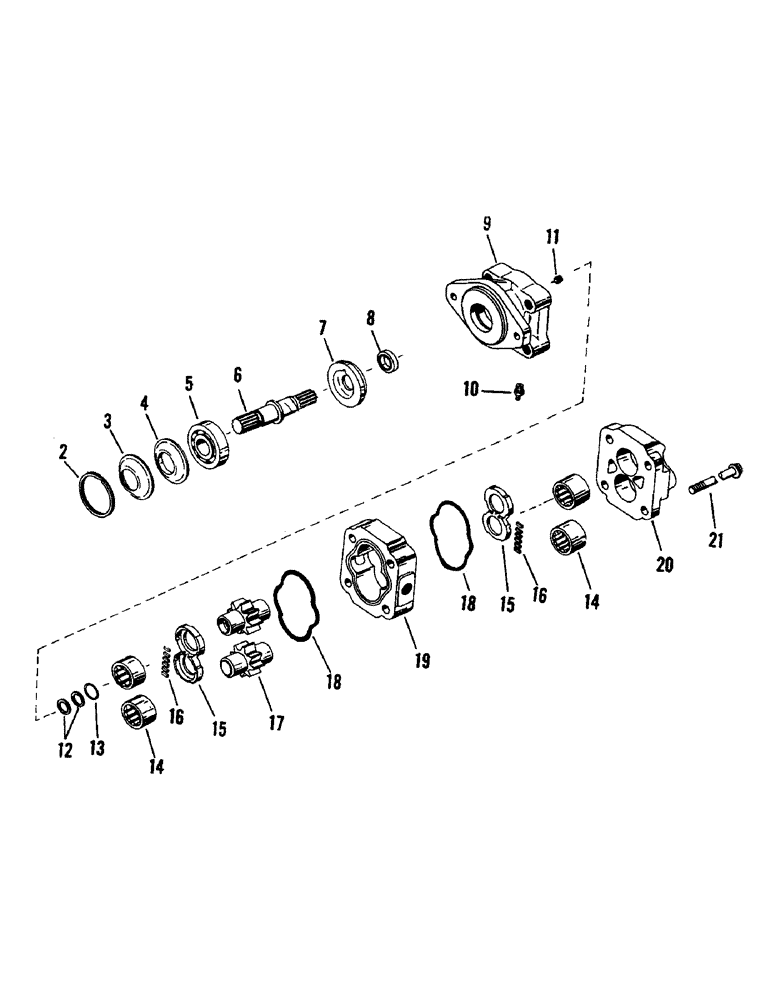

Запчасти Case IH STEIGER (08-10) - STEERING PUMP, COUGAR I AND II W/D 333 ENGINE (07) - HYDRAULICS

1

18-465

PUMP, steering

1шт.

2

18-749

RING, snap

1шт.

3

18-750

SHIELD, bearing

1шт.

4

18-751

SEAL, bearing

1шт.

5

18-752

BEARING

outer

1шт.

6

18-753

SHAFT, drive

1шт.

7

18-754

SPACER, bearing

1шт.

8

18-755

RING

SEAL, ring

1шт.

9

18-756

COVER, end

1шт.

10

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

18-758

PLUG

1шт.

12

18-759

RING

backup

2шт.

13

18-760

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

14

18-761

BEARING

roller

4шт.

15

18-763

LARGE PLATE

PLATES, thrust

2шт.

16

18-762

SEAL, pocket

2шт.

17

18-764

GEAR

(1set)

1шт.

18

18-765

GASKET

SEAL, pocket

2шт.

19

18-766

HOUSING, pump

1шт.

20

18-767

COVER, end

1шт.

21

18-768

SCREW, cap

4шт.

18-1175

GASKET

pump to engine (Not shown)

1шт.
