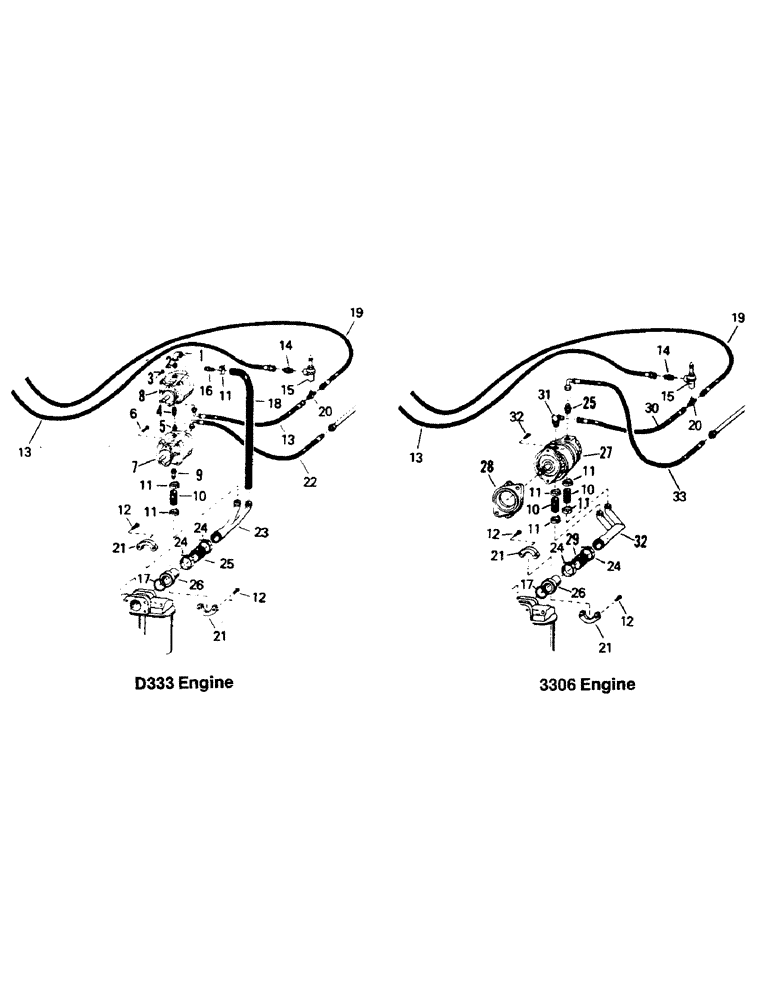

Запчасти Case IH STEIGER (08-08) - HYDRAULIC PUMPS AND MOUNTING, COUGAR II (07) - HYDRAULICS

1

31-46

ELBOW

1" pipe

1шт.

2

31-276

TOY

NIPPLE, 1" close

1шт.

3

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8" NC x 1-1/4

2шт.

4

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

ADAPTER

1шт.

5

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER

1шт.

6

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

2шт.

7

18-578

PUMP

implement

1шт.

8

18-465

PUMP, steering

1шт.

18-1175

GASKET

(For pumps)

1шт.

9

31-266

FITTING

ADAPTER (DS-20)

1шт.

10

32-270

HOSE

suction

1шт.

11

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

hose

4шт.

12

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" NC x 1-1/2"

4шт.

13

32-241

HOSE ASSY.

2шт.

14

31-499

ADAPTER

1шт.

15

18-12

VALVE

RELIEF VALVE

1шт.

16

31-248

FITTING

KING NIPPLE

1шт.

17

18-560

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

18

32-124

HOSE, suction

1шт.

19

32-244

HOSE

assy.

1шт.

20

31-456

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

1шт.

21

18-561

X

FLANGE CLAMP

4шт.

22

32-242

HOSE ASSY.

1шт.

23

18-1086

MANIFOLD

1шт.

24

32-135

CLAMP,#44, 2.25"-2.56", T-Bolt

hose

2шт.

25

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (DS-12)

1шт.

26

18-952

TUBE, hyd. suction 2" OD, 2.75" Length

1шт.

27

18-979

PUMP, HYDRAULIC

PUMP (Service w/01-7107)

1шт.

18-1176

GASKET

FOR PUMP

1шт.

28

18-955

ADAPTER

pump mt.

1шт.

Ref: 28 Gasket located in front of # 28 is 18-1302.

1шт.

29

32-271

HOSE, suction

1шт.

30

32-207

HOSE

ASSY. (w/st. ends)

1шт.

32-241

HOSE ASSY. (W/90 degrees on one end)

1шт.

31

31-460

ADAPTER,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

90 degrees (DS-16)

1шт.

31-484

ADAPTER

st. (DS-16)

1шт.

32

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2" NC x 2-1/4"

2шт.

33

32-187

HOSE

ASSY.

1шт.
