Запчасти Case IH STEIGER (02-09) - ALTERNATOR, COUGAR I AND II (06) - ELECTRICAL

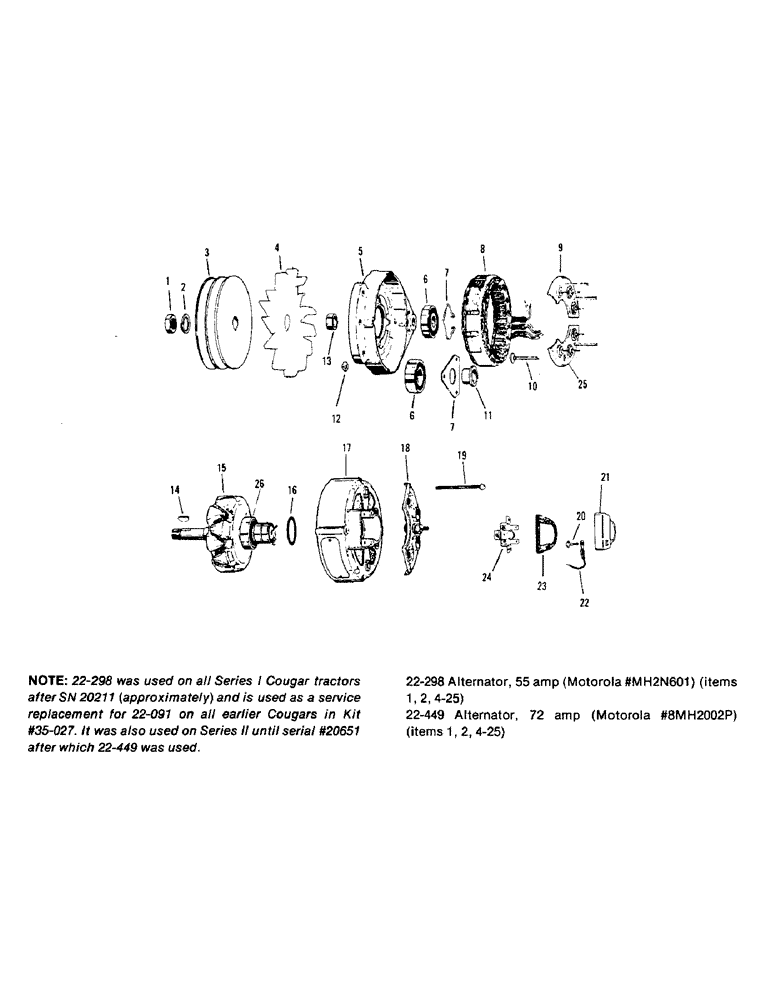

Схема запчастей Case IH STEIGER - (02-09) - ALTERNATOR, COUGAR I AND II (06) - ELECTRICAL
2
1
12
19
20
7
11
17
21
10
4
6
9
26
8
23
13
18
24
6
14
3
7
22
15
16
5
25

Артикул

Название

Примечание

Количество

1

22-256

NUT

1шт.

2

19-120

LOCK WASHER,5/8"

5/8"

1шт.

3

22-341

PULLEY

(55 amp)

1шт.

6-1481

PULLEY

(72 amp)

1шт.

4

22-340

FAN

1шт.

5

22-336

HOUSING, front (55 amp)

1шт.

22-565

HOUSING

front (72 amp)

1шт.

6

22-342

FRONT BEARING

2шт.

7

22-344

RETAINER BEARING

1шт.

8

22-338

STATOR (55 amp)

1шт.

22-558

STATOR (72 amp)

1шт.

9

22-346

DIODE RECT, negative (55 amp)

1шт.

22-559

DIODE RECT, negative (72 amp)

1шт.

10

22-356

SCREW, carriage #10 x 1-1/2"

4шт.

11

22-361

SLEEVE

1шт.

12

22-260

NUT, square #10

1шт.

13

22-349

SPACER

fan

1шт.

14

22-263

KEY

Woodruff #5

1шт.

15

22-337

ROTOR (55 amp)

1шт.

22-561

ROTOR (72 amp)

1шт.

16

22-345

RETAINER, rear bearing

1шт.

17

22-339

HOUSING, rear

1шт.

22-562

HOUSING, rear

1шт.

18

DIODE INSULATION (Not used on this model)

1шт.

19

22-279

SCREW, #10 x 3-1/8"

2шт.

20

22-355

BOLT

SCREW, #10 x 3/4

1шт.

21

22-363

COVER (55 amp)

1шт.

COVER (72 amp)

1шт.

22

22-352

CABLE

1шт.

23

22-350

GASKET

1шт.

24

22-348

BRUSH ASSEMBLY (55 amp)

1шт.

22-563

BRUSH ASSEMBLY (72 amp)

1шт.

25

22-347

DIODE RECT, positive (55 amp)

1шт.

22-564

DIODE RECT, positive (72 amp)

1шт.

26

22-343

BEARING

rear

1шт.

22-299

VALVE

REG. (Used with 22-298)

1шт.

22-641

VALVE

REG. (Used with 22-449) (Is 22-450 reg. with yellow wire cut off)

1шт.

Выбрано товаров: 37
