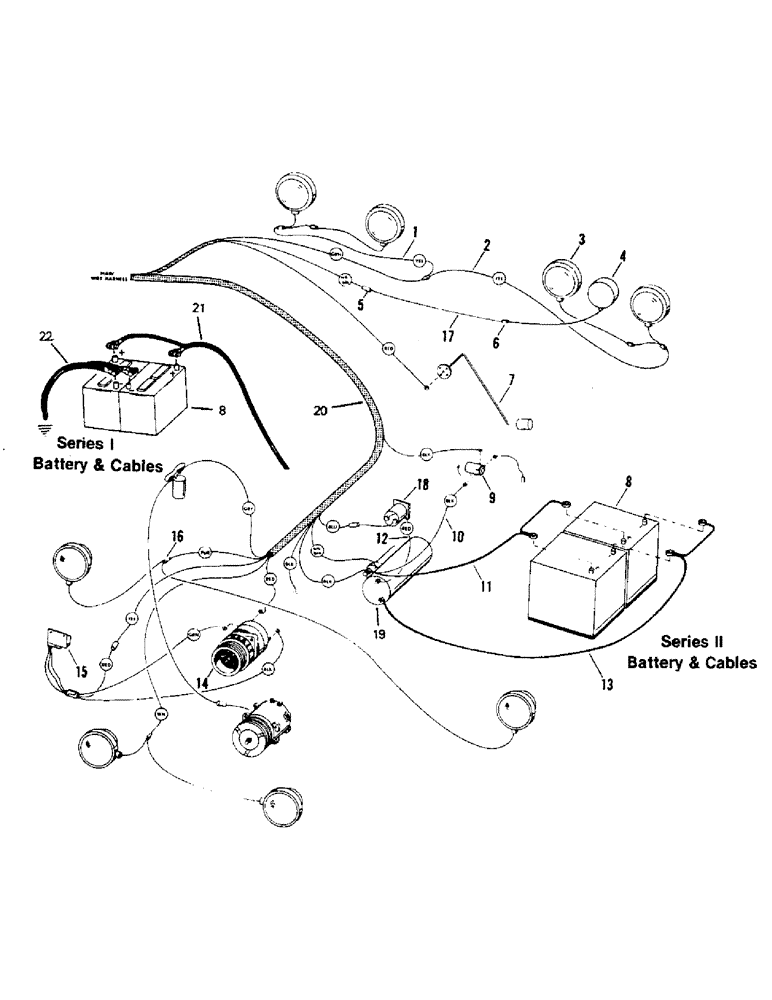

Запчасти Case IH STEIGER (02-01) - ENGINE ELECTRICAL, COUGAR I AND II (06) - ELECTRICAL

1

22-408

WIRE, RH rear

1шт.

2

22-407

WIRE, LH rear

1шт.

3

SEE LAMPS PARTS FIGURES

1шт.

See Lamp parts figures 2-16

1шт.

4

22-103

LIGHT

TAIL LIGHT

1шт.

5

22-58

CONNECTORS

6шт.

6

22-40

CONNECTOR,ELECTRIC

QUICK SPLICE

9шт.

7

29-115

UNIT

FUEL SENDER (Repl. 29-009)

1шт.

(B) Superseded - Old part number can be used for all models, but order new part number when stock is depleted.

1шт.

29-31

GASKET

(Incl. w/29-115)

1шт.

8

22-32

BATTERY

2шт.

9

22-492

SOLENOID

SWITCH, solenoid

1шт.

REF. 9 22-492 GPN SHOWS THIS FOR C,P,T

1шт.

10

22-491

WIRE, Serial Range: starter-solenoid

1шт.

11

22-496

CABLE, posi. (Series II)

1шт.

12

22-180

WIRE, fuel, Start Serial: solenoid

1шт.

13

22-495

CABLE, neg. (Series II)

1шт.

14

ALT. (See parts figures)

1шт.

15

22-92

REG. (Series I) (Use w/22-091)

1шт.

22-299

VALVE

REG. (Series I & II) (Use w/22-298)

1шт.

22-641

VALVE

REG. (Series II) (Use w/22-449) (See alt. parts pages for more info.)

1шт.

16

22-39

3-WAY CONNECTOR

3шт.

17

22-406

WIRE, tail light (Series II)

1шт.

18

SOLENOID, fuel shut off (Cat. part)

1шт.

19

22-1147

STARTER MOTOR

STARTER

1шт.

20

22-130

HARNESS

Main, Cougar I

1шт.

22-494

HARNESS, Main, Cougar II

1шт.

21

22-251

CABLE

battery, pos. (Cougar I)

1шт.

22

22-250

CABLE, battery, neg. (Cougar I)

1шт.
