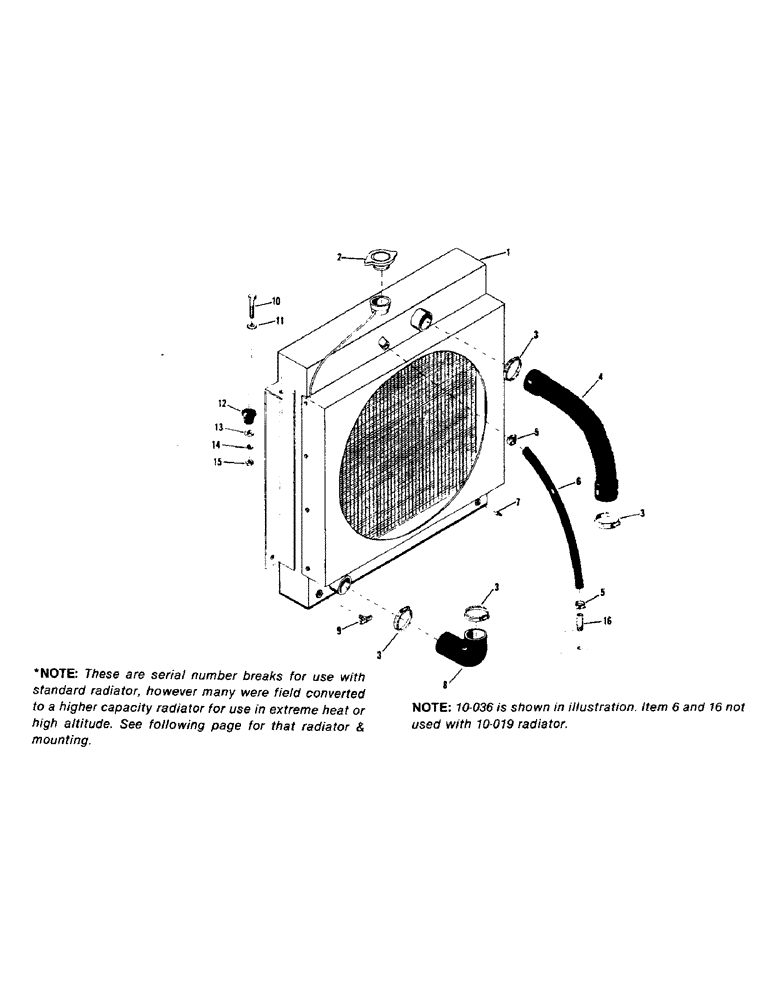

Запчасти Case IH STEIGER (04-12) - RADIATOR AND ATTACHING, COUGAR II, STANDARD (04) - Drive Train

1

10-19

RADIATOR (SN 20575 & below except 20573)

1шт.

1

10-36

RADIATOR

(SN 20576 & up plus 20573)

1шт.

10-37

SHROUD, for 10-036

1шт.

2

10-21

CAP

RADIATOR CAP

1шт.

3

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

4шт.

4

32-126

HOSE

wire inserted (D333 engine)

1шт.

51-149

HOSE,2.50" ID x 15.75", SAE 20R4, CLASS R, Grade1A

RADIATOR HOSE, (3306 Engine) 2.50" ID x 15.75", SAE 20R4, CLASS R, Grade1A

1шт.

5

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

2шт.

6

32-266

SHUNT HOSE (D333 engine)

1шт.

32-281

HOSE

SHUNT HOSE (3306 engine)

1шт.

7

31-37

PLUG

PIPE PLUG, sq. hd.

1шт.

8

51-148

HOSE,2.50" ID x 5.10", SAE J20 D, SAE 20R1 Class 5B

RADIATOR HOSE, , (D333 Engine) 2.50" ID x 5.10", SAE J20 D, SAE 20R1 Class 5B

1шт.

51-306

HOSE,2.50" ID x 6.30", SAE 20R4, CLASS R, Grade 1A

RADIATOR HOSE, , Suction (3306 Engine) 2.50" ID x 6.30", SAE 20R4, CLASS R, Grade 1A

1шт.

9

31-157

COCK, DRAIN

DRAIN COCK, 1/4"

1шт.

10

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW, 1/2 x 2-1/2 UNC

4шт.

11

19-109

WASHER,1/2"

flat

4шт.

12

18-511

MOUNTING PARTS

RUBBER MOUNTS

4шт.

13

19-571

RUBBER WASHER

rubber mounts

4шт.

14

19-119

LOCK WASHER,1/2"

1/2"

4шт.

15

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 UNC

4шт.

16

31-275

LUBE NIPPLE

NIPPLE, 3/4 x 3

1шт.

31-21

ELBOW

STREET ELBOW, 3/4"

1шт.
