Запчасти Case IH STEIGER (04-31) - TRANSMISSION COOLING - SERIES I W/SPICER (04) - Drive Train

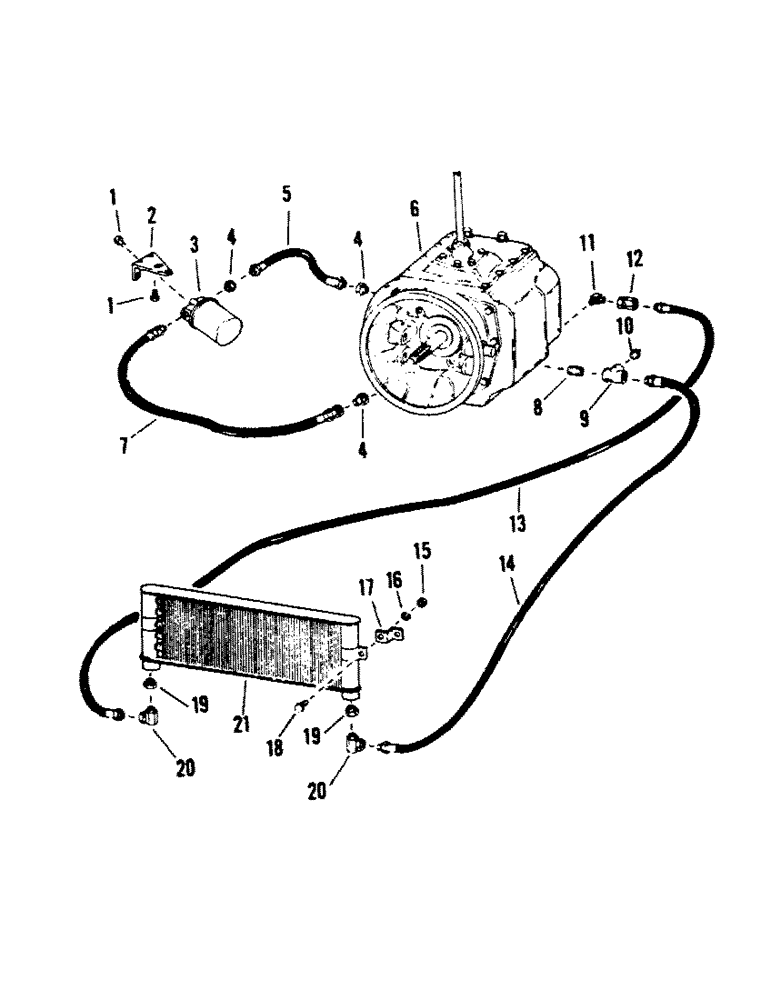

Схема запчастей Case IH STEIGER - (04-31) - TRANSMISSION COOLING - SERIES I W/SPICER (04) - Drive Train
4
9
18
4
19
11
21
17
8
3
2
5
6
12
19
10
1
7
13
1
14
20
16
20
15
4

Артикул

Название

Примечание

Количество

1

12-1666

CAPSCREW, 3/8" NC x 1"

5шт.

2

12-1664

BRACKET

1шт.

3

12-1665

FILTER

ASSY.

1шт.

18-502

FILTER CARTRIDGE

FITLER ELEMENT

1шт.

4

12-1662

CONNECTOR

3шт.

5

12-1661

TUBE

1шт.

6

TRANSMISSION

1шт.

7

12-1663

HOSE,SAE 100R1

SAE 100R1

1шт.

8

31-26

NIPPLE, LUBE

NIPPLE, 1-1/4" close

1шт.

9

31-335

TEE, pipe

1шт.

10

31-3

PLUG, 1-1/4"

1шт.

11

31-338

ADAPTER, 90 deg.

1шт.

12

31-337

ADAPTER,37 Degree, Sw, 3/4"-16 x 1/2"-14 NPTF

UNION

1шт.

13

32-173

HOSE, 1/2" x 108"

1шт.

14

32-172

HOSE, 1/2" x 86"

1шт.

15

19-78

SPECIAL NUT,3/8"-16, G5

3/8" NC

2шт.

16

19-117

LOCK WASHER,3/8"

3/8"

2шт.

17

55-91

BRACKET, cooler mt.

2шт.

18

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8" NC x 1"

2шт.

19

31-175

FITTING,1"-11 1/2" Male NPTF x 1/2"-14 Female NPTF

BUSHING, 1" x 1/2"

2шт.

20

31-115

ADAPTER, 45 deg.

2шт.

21

10-12

COOLER

transmission oil

1шт.

Выбрано товаров: 22
