Запчасти Case IH STEIGER (06-01) - FRONT FRAME GROUP - SERIES I (12) - FRAME

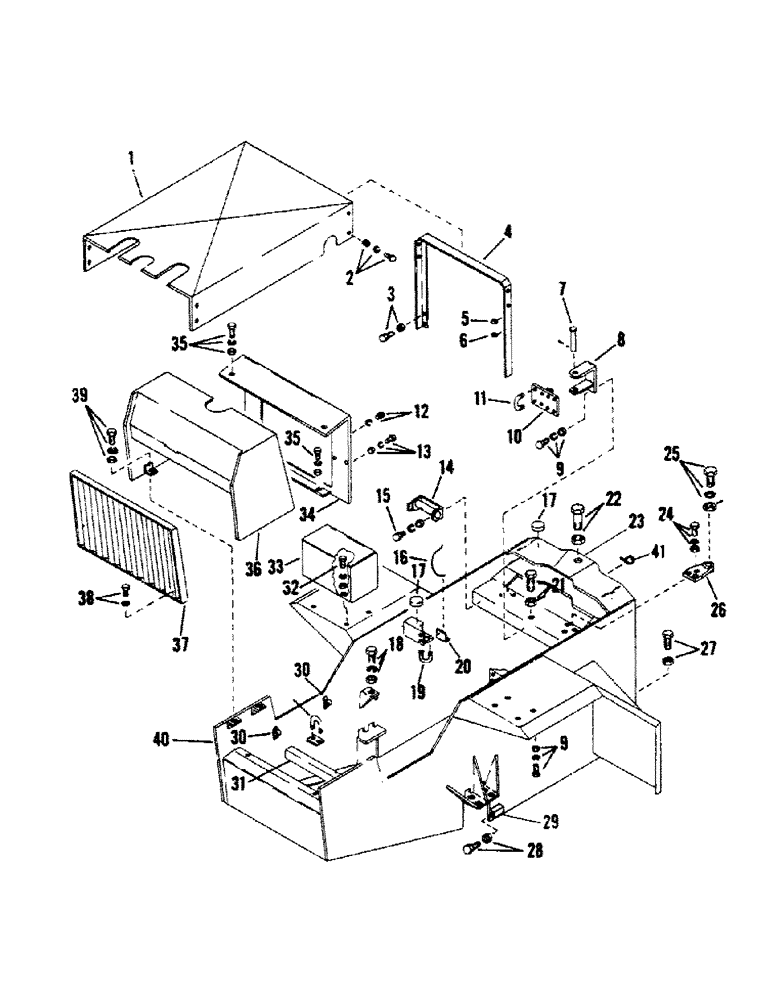

Схема запчастей Case IH STEIGER - (06-01) - FRONT FRAME GROUP - SERIES I (12) - FRAME
3
30
5
32
18
1
22
35
17
8
41
11
24
33
15
31
20
37
29
4
35
2
7
16
36
38
27
39
19
30
14
23
28
13
26
10
9
21
9
34
25
40
12
6
17

Артикул

Название

Примечание

Количество

1

1-74

HOOD

1шт.

2

19-26

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

CAPSCREW, 3/8" NF x 1-1/4"

11шт.

19-107

WASHER

FLAT WASHER, 3/8"

11шт.

19-90

NUT

3/8" NF lock

11шт.

3

19-26

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

CAPSCREW

4шт.

19-90

NUT

3/8" NF lock

4шт.

4

1-96

FRAME, hood

1шт.

5

32-68

COTTER PIN,3/32" x 1/2"

CLAMP, 1/4"

1шт.

6

32-69

CLAMP

3/8"

1шт.

7

1-82

PIN

1шт.

19-126

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

8

1-77

BRACKET, swivel

1шт.

9

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8" NC x 1"

6шт.

19-117

LOCK WASHER,3/8"

3/8"

6шт.

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8" NC

6шт.

10

1-80

PLATE, swivel

1шт.

11

19-152

U-BOLT

1/4" NC

6шт.

19-115

LOCK WASHER,1/4"

1/4"

12шт.

19-76

NUT,1/4"-20, G5

1/4" NC

12шт.

12

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8" NC x 3/4"

2шт.

19-117

LOCK WASHER,3/8"

3/8"

2шт.

13

19-5

CAPSCREW, 1/4" NC x 3/4"

2шт.

19-115

LOCK WASHER,1/4"

1/4"

2шт.

19-76

NUT,1/4"-20, G5

1/4" NC

2шт.

14

5-141

PIVOT

ARM, pivot

1шт.

15

19-34

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

CAPSCREW, 7/16" NC x 1-1/2"

2шт.

19-118

LOCK WASHER,7/16"

7/16"

2шт.

19-79

NUT,7/16"-14, G5

7/16" NC

2шт.

16

22-54

GROUND WIRE

1шт.

17

CAB MT. (see figure 1-1)

4шт.

18

19-70

BOLT,Hex, 1" - 8 x 3", Gr 5

CAPSCREW, 1" NC x 3"

2шт.

19-122

LOCK WASHER,1"

1"

2шт.

19-86

NUT,1"-8, G5

1" NC

2шт.

19

19-155

U-BOLT, 5/16" NC

2шт.

19-116

LOCK WASHER,5/16"

5/16"

4шт.

19-77

NUT,5/16"-18, G5

5/16" NC

4шт.

20

5-35

BRACKET, hose mt.

1шт.

(see SERIES II frame on figure 6-3) consists of ref. nos. 21-27

1шт.

28

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

CAPSCREW, 3/4" NF x 3"

4шт.

19-97

NUT,3/4"-16, G5

3/4" NF

4шт.

29

1-47

AXLE STOP (weld-on)

1шт.

30

32-67

CLAMP, 1"

2шт.

31

1-204

MT., MOTOR (SW w/Clark axle)

1шт.

32

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2" NC x 1-1/4"

4шт.

19-119

LOCK WASHER,1/2"

1/2"

4шт.

19-81

NUT,1/2"-13, G5

1/2" NC

4шт.

33

1-136

TERMINAL BOX

BATTERY BOX, fender mt.

1шт.

Some early Series I had the battery box mounted inside the frame. These are no longer available so the fender mount style must be ordered.

1шт.

1-138

LARGE PLATE

COVER, battery box

1шт.

Some early Series I had the battery box mounted inside the frame. These are no longer available so the fender mount style must be ordered.

1шт.

34

1-66

SHIELD, chaff

1шт.

35

19-26

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

CAPSCREW, 3/8" NC x 1-1/4"

6шт.

19-107

WASHER

LOCKWASHER, 3/8"

6шт.

19-90

NUT

3/8" NC

6шт.

36

1-56

GRILL MT.

1шт.

37

1-61

GRILL

1шт.

38

19-26

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

CAPSCREW, 3/8" NF x 1-1/4"

2шт.

19-107

WASHER

flat, 3/8"

2шт.

39

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

CAPSCREW, 5/8" NC x 2"

2шт.

19-120

LOCK WASHER,5/8"

5/8"

2шт.

19-83

NUT,5/8"-11, G5

5/8" NC

2шт.

40

FRONT FRAME - SPECIAL ORDER

1шт.

41

19-135

CABLE TIE

TIE WRAPS

1шт.

Выбрано товаров: 63
