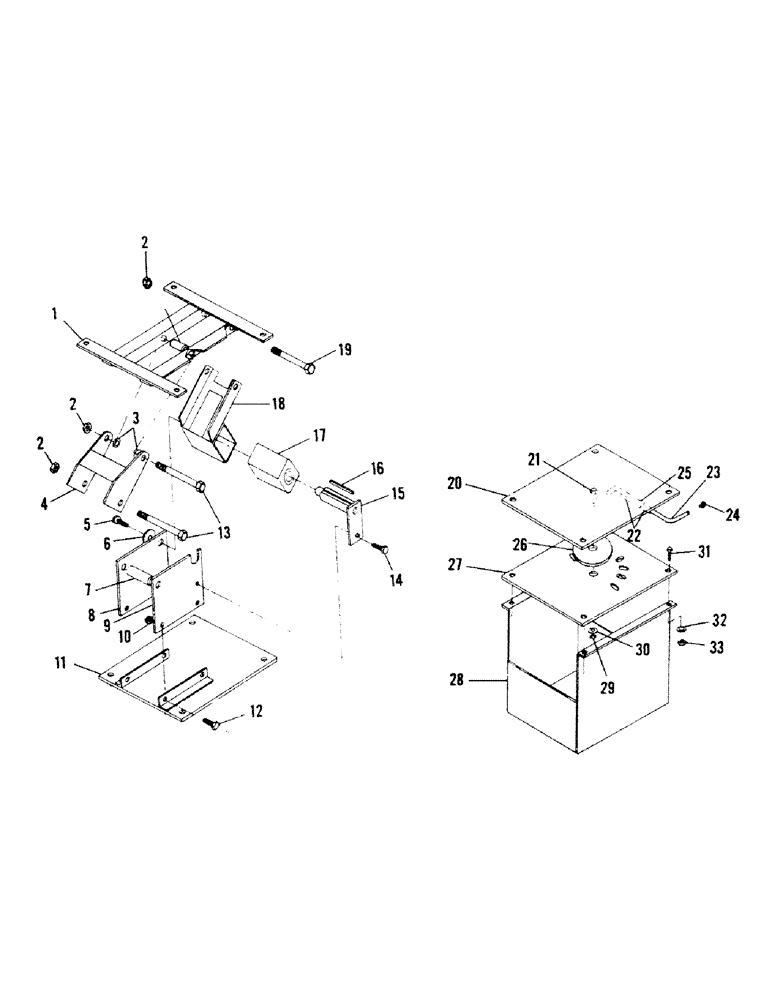

Запчасти Case IH STEIGER (01-06) - SEAT SUSPENSIONS - SERIES I, SUSPENSION ASSEMBLY (10) - CAB
№
Артикул
Название
Примечание
Количество
23-3
SUSPENSION ASSY., consists of Ref. 1 - 19
1шт.
P/N 23-3 was used only on a few 69 and 70 models. If extensive repairs are needed, it is recommended that Ref 28, P/N 4-135, be ordered.
1шт.
1
23-23
MT. BRACKET
1шт.
2
19-295
NUT,Jam, 3/8" - 16, Gr 5
3/8 NC
3шт.
3
19-224
WASHER,3/8", SAE
3/8 SAE flat
2шт.
4
NA
NOT SERVICED
LINKAGE
1шт.
5
19-16
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
CAPSCREW, 3/8 NC x 3/4
1шт.
6
19-185
WASHER, 3/8 flat (special)
1шт.
7
23-24
SPACER
2шт.
8
23-25
SIDE PLATE, RH
1шт.
9
23-26
SIDE PLATE, LH
1шт.
10
19-236
JAM NUT,5/16" - 24, Gr 5
5/16 NF NF
5шт.
11
23-27
BASE PLATE
1шт.
12
19-360
CAPSCREW, 5/16 NF x 7/8
4шт.
13
19-231
BOLT,3/8" - 16 x 4 3/4", Gr 5
CAPSCREW, 3/8 NC x 4-3/4
2шт.
14
19-361
CAPSCREW, 5/16 NF x 1/2
1шт.
15
23-28
SHAFT ASSY
1шт.
16
23-29
KEY
1шт.
17
23-8
BRACKET
RUBBER TORSION MT. & GLUE
1шт.
18
23-30
HOUSING & LINKAGE
1шт.
19
19-133
BOLT,Hex, 3/8" - 16 x 4", Gr 5
CAPSCREW, 3/8 NC x 4-1/8
1шт.
4-150
SWIVEL ASSY., consists of Ref. 20 - 27
1шт.
20
4-147
PLATE, top, mount box
1шт.
21
19-46
BOLT,1/2" - 13 x 2", Gr 5
CAPSCREW, 1/2 NC x 2 (welded to #20), swivel and mount box
1шт.
22
23-5
HINGE, swivel and mount box
2шт.
23
4-145
LOCK ROD, swivel and mount box
1шт.
24
23-6
KNOB, swivel and mount box
1шт.
25
4-146
STOP, lock rod, swivel and mount box
1шт.
26
4-149
DISC, swivel, mount box
1шт.
27
4-143
PLATE, bottom, mount box
1шт.
28
4-135
BRACKET
MOUNT BOX (for 23-013 seat), swivel
1шт.
4-246
MOUNT BOX (for bostrom seat), swivel
1шт.
29
19-82
LOCK NUT
1/2 NC self lock, swivel and mount box
1шт.
31
19-7
BOLT,Hex, 5/16" - 18 x 1", Gr 5
CAPSCREW, 5/16 NC x 1, swivel and mount box
4шт.
32
19-116
LOCK WASHER,5/16"
swivel and mount box 5/16"
4шт.
33
19-77
NUT,5/16"-18, G5
5/16 NC, swivel and mount box
4шт.
