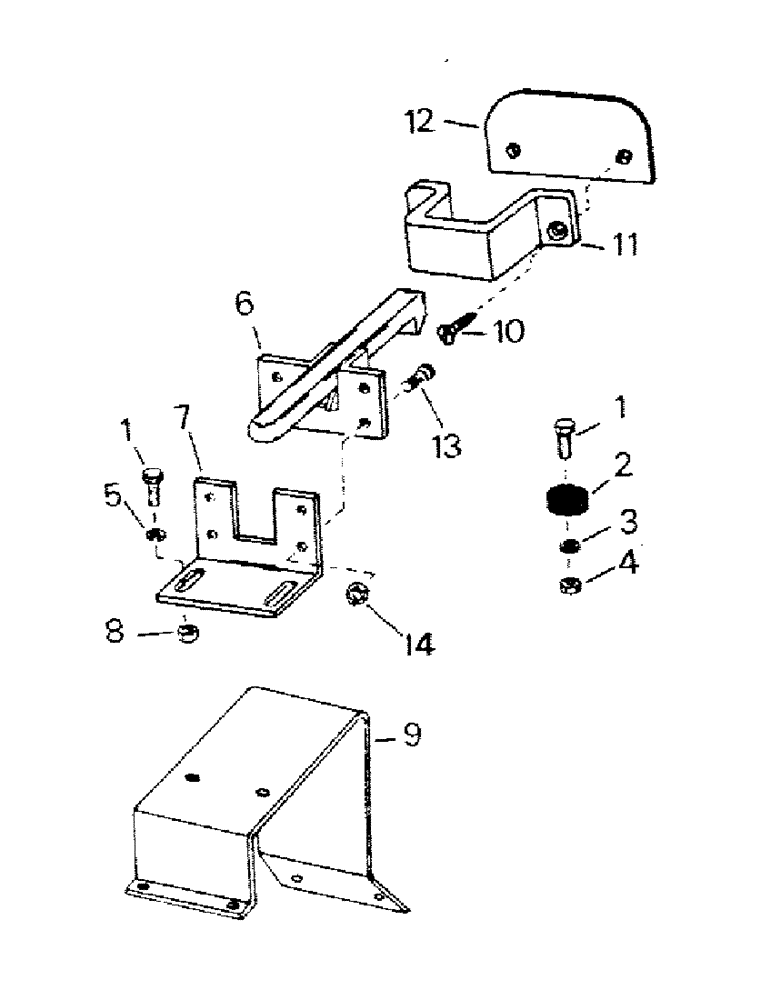

Запчасти Case IH STEIGER (01-03) - DOOR HOLDER & PARTS (10) - CAB

1

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 NC x 1

4шт.

2

24-51

INSERT

STOP, rubber

2шт.

3

19-107

WASHER

flat 3/8

2шт.

4

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8 NC self-lock

2шт.

5

19-177

WASHER, lock, 3/8 1 3/8"-12, G5

4шт.

6

19-264

HOLDER

w/handle

2шт.

7

1-197

BRACKET, holder

2шт.

8

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

4шт.

9

54-67

MOUNT, door stop, not needed on tractors with high fenders

2шт.

10

19-267

SELF-TAP SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

SCREW, 1/4 x 1 self-drill

2шт.

11

19-263

PIN

KEEPER

2шт.

12

19-262

PAD

keeper

2шт.

13

19-565

SCREW,Sl Flat Hd, #10 - 24 x 5/8", Gr 5

#10 x 5/8 NC

8шт.

14

19-351

NUT,#10 - 24, GA

NUT, #10 NC

8шт.
