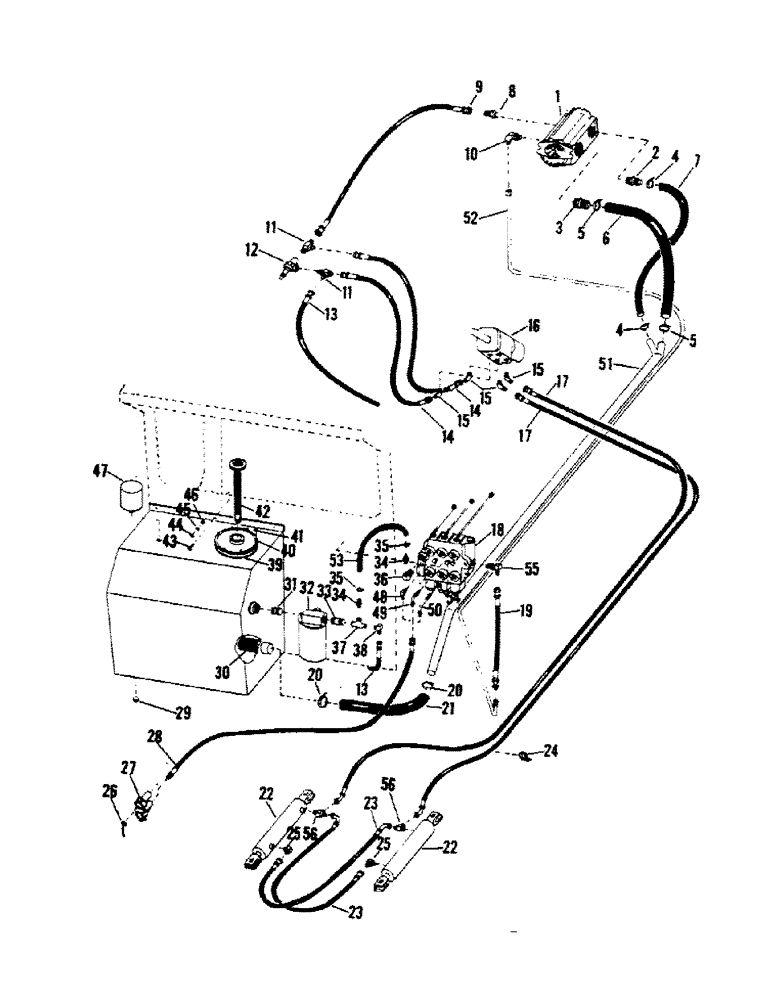

Запчасти Case IH STEIGER (08-07) - HYDRAULIC SYSTEM - J.I.C. SYSTEM, SERIES I (07) - HYDRAULICS

1

HYD. PUMP

1шт.

During this SN period, the 18-504 and 18-580 Pumps were standard, with the 18-789 and 18-1415 used as field replacements. See Page 8-2 for Pumps and Adapters. The 18-1415 pump is now the recommended field replacement

1шт.

2

ADAPTER

1шт.

During this SN period, the 18-504 and 18-580 Pumps were standard, with the 18-789 and 18-1415 used as field replacements. See Page 8-2 for Pumps and Adapters. The 18-1415 pump is now the recommended field replacement

1шт.

3

ADAPTER

1шт.

During this SN period, the 18-504 and 18-580 Pumps were standard, with the 18-789 and 18-1415 used as field replacements. See Page 8-2 for Pumps and Adapters. The 18-1415 pump is now the recommended field replacement

1шт.

4

32-130

CLAMP,1.40"-1.56", T-Bolt

2шт.

5

32-134

CLAMP,#28, 1.75"-2.00", T-Bolt

2шт.

6

32-158

HOSE

1шт.

7

32-157

HOSE

1шт.

8

ADAPTER

1шт.

During this SN period, the 18-504 and 18-580 Pumps were standard, with the 18-789 and 18-1415 used as field replacements. See Page 8-2 for Pumps and Adapters. The 18-1415 pump is now the recommended field replacement

1шт.

9

32-177

HOSE

1шт.

10

ADAPTER

1шт.

During this SN period, the 18-504 and 18-580 Pumps were standard, with the 18-789 and 18-1415 used as field replacements. See Page 8-2 for Pumps and Adapters. The 18-1415 pump is now the recommended field replacement

1шт.

11

31-322

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

4шт.

12

18-12

VALVE

RELIEF VALVE

1шт.

13

32-152

HOSE

1шт.

14

32-178

HOSE

2шт.

15

31-323

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, 45 deg.

4шт.

16

18-5

VALVE

STEERING VALVE

1шт.

17

32-175

HOSE

2шт.

18

18-452

VALVE

hyd. control

1шт.

19

32-153

HOSE

1шт.

20

32-135

CLAMP,#44, 2.25"-2.56", T-Bolt

2шт.

21

32-159

HOSE

1шт.

22

STEERING CYLS. (see figure 8-15)

2шт.

23

32-176

HOSE

2шт.

24

32-161

COLLAR CLAMP

CLAMP

1шт.

25

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

ADAPTER (cyls. w/pipe thread)

2шт.

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER (cyls. w/o-ring thread)

2шт.

(SEE HYD. COUPLERS ON FIGURE 8-30) consists of ref. nos. 26-27

1шт.

28

32-154

HOSE

1шт.

29

31-34

PLUG

1шт.

30

18-496

FILTER SCREEN

FILTER, suction

1шт.

31

31-26

NIPPLE, LUBE

NIPPLE

1шт.

32

18-497

FILTER

ASSY.

1шт.

18-498

FILTER, ENGINE OIL

FILTER ELEMENT

1шт.

18-669

O-RING

1шт.

33

31-309

NIPPLE

1шт.

34

31-318

HOSE

NIPPLE

2шт.

35

32-130

CLAMP,1.40"-1.56", T-Bolt

2шт.

36

31-354

ADAPTER

1шт.

37

31-310

TEE

1шт.

38

31-325

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ADAPTER

1шт.

39

27-41

GASKET

1шт.

40

27-39

COVER

1шт.

41

19-77

NUT,5/16"-18, G5

6шт.

42

6-1506

DIPSTICK

GAUGE

1шт.

43

19-35

BOLT,7/16" - 14 x 2", Gr 5

CAPSCREW, 7/16" NC x 2"

6шт.

44

19-108

WASHER,7/16"

flat, 7/16"

6шт.

45

19-118

LOCK WASHER,7/16"

7/16"

6шт.

46

19-79

NUT,7/16"-14, G5

7/16" NC

6шт.

47

18-503

FILTER

VALVE, pressure filter

1шт.

18-1633

BREATHER

ELEMENT FOR 18-503

1шт.

48

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, 90 deg.

2шт.

49

31-331

ADAPTER,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

90 deg.

2шт.

50

31-328

FITTING

ADAPTER, 90 deg.

2шт.

51

1-243

TUBE, suction

1шт.

52

1-242

TUBE, pressure

1шт.

53

32-156

HOSE

1шт.

54

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, straight

1шт.

55

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER

1шт.

56

31-322

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

(w/pipe thread cyls.)

2шт.

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(w/o-ring thread cyls.)

2шт.
