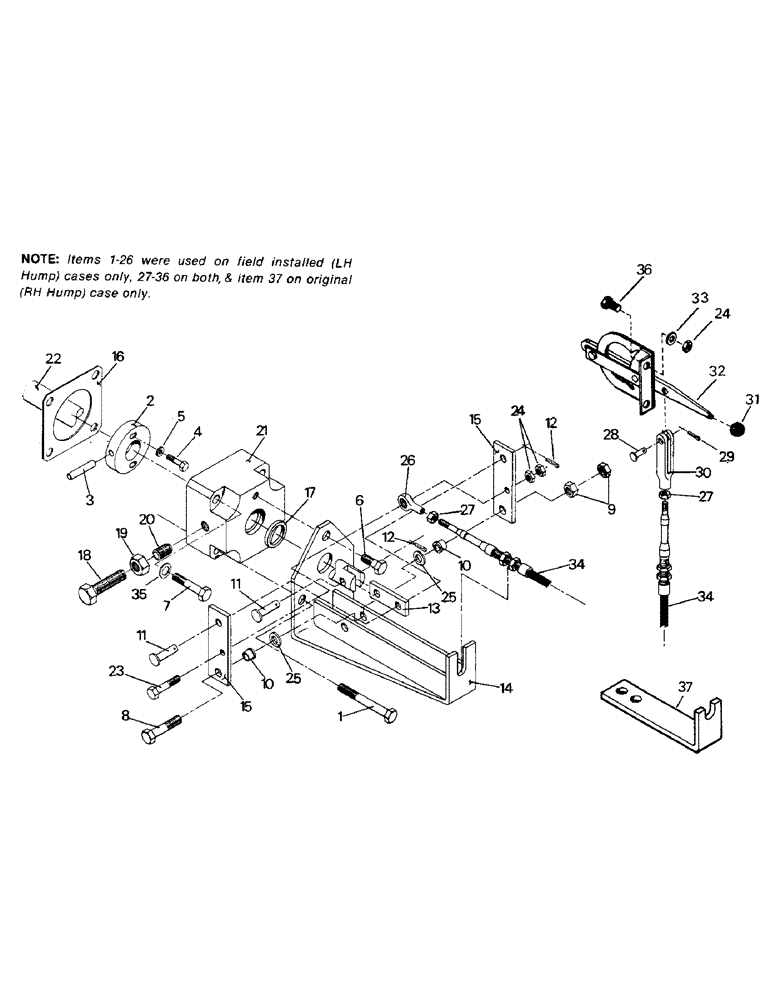

Запчасти Case IH STEIGER (01-16) - TWO SPEED TRANSFER CASE CONTROLS (10) - CAB

1

19-395

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

CAPSCREW, 3/8 x 5-1/2 UNC

2шт.

2

1-2548

BLOCK

adjust

1шт.

3

19-1115

DOWEL,1/4" x 2"

PIN

1шт.

4

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 x 1-1/2 UNC

2шт.

5

19-306

WASHER

13/32

2шт.

6

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

1шт.

7

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

CAPSCREW, 3/8 x 2-1/2 UNC

2шт.

8

19-741

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

CAPSCREW, 1/2 x 2-3/4 UNC

1шт.

9

19-81

NUT,1/2"-13, G5

1/2 UNC

2шт.

10

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING

2шт.

11

19-145

CLEVIS PIN,3/8" x 1.06"

2шт.

12

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13

1-3555

ARM

linkage

1шт.

14

1-1902

LINK

BRACKET, cable

1шт.

15

1-1905

ARM

LEVER, linkage

2шт.

16

1-2300

SHIM

1шт.

1-2301

SHIM

1шт.

17

1-1850

SEAL

1шт.

18

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 UNC

1шт.

19

19-83

NUT,5/8"-11, G5

5/8 UNC

1шт.

20

1-1852

PLUNGER

ball

1шт.

21

1-1889

BLOCK

detent

1шт.

22

1-3550

ROD

shifter

1шт.

23

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 x 1-1/4 UNC

1шт.

24

19-76

NUT,1/4"-20, G5

1/4 UNC

2шт.

25

19-463

WASHER,1/2", SAE

1/2

2шт.

26

19-1031

GASKET

ROD END, female

1шт.

27

19-89

NUT,1/4"-28, G5

1/4 UNF

2шт.

28

19-144

CLEVIS PIN,1/4" x 0.77"

1шт.

29

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

30

19-141

CLEVIS

YOKE

1шт.

31

12-1706

KNOB

1шт.

32

30-20

LEVER

SHIFT LEVER

1шт.

33

19-115

LOCK WASHER,1/4"

1/4"

2шт.

34

1-4171

CABLE

2-speed

1шт.

1-1051

GROMMET

(In floor board for cable)

1шт.

35

19-224

WASHER,3/8", SAE

3/8"

2шт.

36

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 NC x 1

2шт.

37

42-123

BRACKET, cable mt. (Used on orignal (RH hump) Case only)

1шт.
