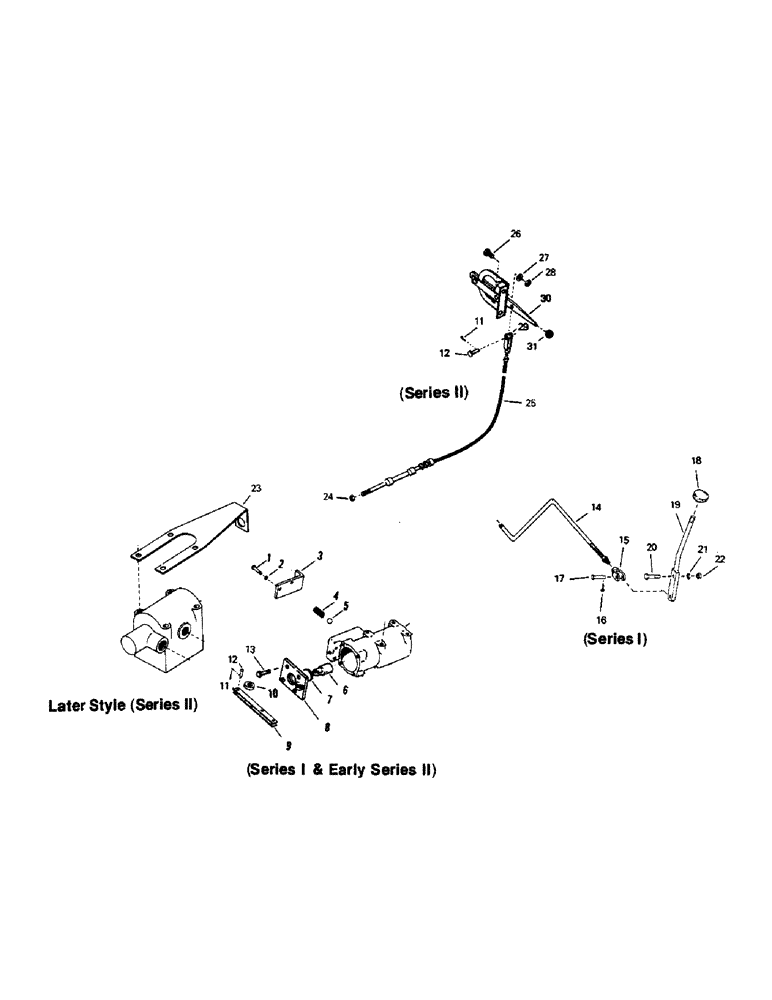

Запчасти Case IH STEIGER (01-15) - TWO SPEED TRANSMISSION SHIFT LINKAGES (10) - CAB

1

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW

3шт.

2

19-116

LOCK WASHER,5/16"

5/16"

3шт.

3

4-349

MOUNT (Use w/Ref. 25, cable)

1шт.

55-126

PLATE (Use w/Ref. 14) (Series I)

1шт.

4

11-11

SPRING

1шт.

5

12-438

BALL

1шт.

6

55-11

ADAPTER

1шт.

7

12-439

SEAL

1шт.

8

55-14

MOUNT, shift

1шт.

9

55-25

LINKAGE

1шт.

10

19-499

CABLE END

1шт.

11

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

12

19-250

PIN

clevis

3шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW

4шт.

14

55-45

ROD, 2-speed

1шт.

15

19-137

CLEVIS

YOKE, clevis

1шт.

16

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

17

19-142

CLEVIS PIN,1/2" x 1.36"

PIN, clevis

1шт.

18

12-8

KNOB

1шт.

19

55-51

LEVER, 2-speed

1шт.

20

19-34

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

CAPSCREW

1шт.

21

19-118

LOCK WASHER,7/16"

7/16"

1шт.

22

19-79

NUT,7/16"-14, G5

1шт.

23

55-181

BRACKET, cable support

1шт.

24

19-89

NUT,1/4"-28, G5

1шт.

25

30-17

CABLE ASSY.

CABLE

1шт.

26

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 NC x 1

2шт.

27

19-115

LOCK WASHER,1/4"

1/4"

2шт.

28

19-76

NUT,1/4"-20, G5

1/4 NC

2шт.

29

19-141

CLEVIS

YOKE

1шт.

30

30-20

LEVER

ASSY.

1шт.

31

12-1706

KNOB

1шт.
