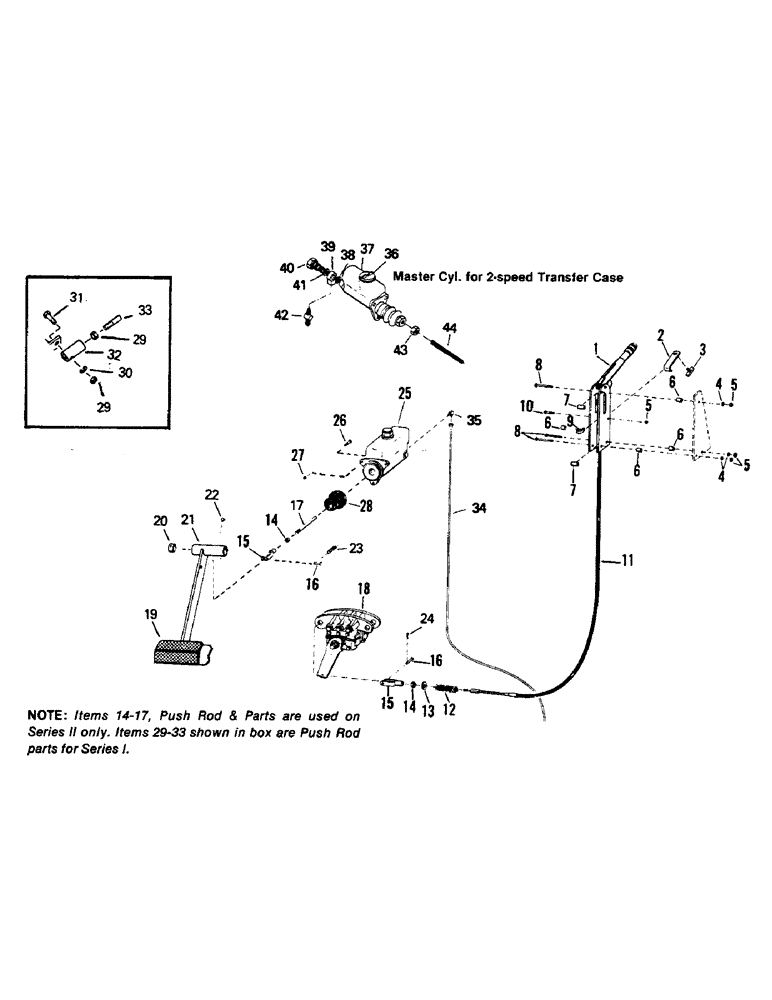

Запчасти Case IH STEIGER (01-11) - BRAKE CONTROLS (10) - CAB

1

30-10

HANDLE

LEVER, hand brake

1шт.

2

55-152

BRACKET

Switch (SII only)

1шт.

3

29-57

SWITCH

(Series II only)

1шт.

4

19-116

LOCK WASHER,5/16"

5/16"

3шт.

5

19-508

LOCK NUT

5/16 NC

5шт.

6

5-306

SPACER

1/2"

4шт.

7

4-118

SPACER

3/4"

2шт.

8

19-110

WASHER,9/16"

CAPSCREW, 5/16 NC x 2-1/4"

3шт.

9

30-13

CLAMP

1шт.

10

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 NC x 1-1/4

1шт.

11

30-11

ELECTRICAL WIRE

CABLE, hand brake

1шт.

12

33-169

SPRING

1шт.

13

19-107

WASHER

flat, 3/8

1шт.

14

19-91

NUT,3/8"-24, G5

3/8 NC (Series II only)

2шт.

15

19-139

YOKE

clevis (SII only)

2шт.

16

19-145

CLEVIS PIN,3/8" x 1.06"

PIN, clevis (SII only)

2шт.

17

4-333

ROD

push (SII only)

1шт.

18

BRAKE, hand (See brakes, section 5)

1шт.

19

24-13

PROTECTION STRIP

PAD, pedal

1шт.

20

19-161

COLLAR, set

2шт.

21

54-68

PEDAL (Series I)

1шт.

54-202

PEDAL

(Cast) Replaces 54-143 (Series II)

1шт.

22

31-96

FITTING

ZERK, 90 degrees (Series II)

1шт.

31-95

FITTING

ZERK, straight (Series I)

1шт.

23

11-16

SPRING

1шт.

24

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

25

33-63

MASTER CYLINDER

MASTER CYL.

1шт.

33-117

KIT

REPAIR KIT (For 33-063)

1шт.

26

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 NC x 1

3шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8 Self Lock

3шт.

28

33-64

BOOT

1шт.

29

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC (Series I)

2шт.

30

19-117

LOCK WASHER,3/8"

(SI) 3/8"

1шт.

31

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 NC x 1-3/4 (SI)

1шт.

32

4-152

PIVOT

ADAPTER, push rod (SI)

1шт.

33

54-58

PUSH ROD (SI)

1шт.

34

1-366

BRAKE LINE

(Series II)

1шт.

51-123

BRAKE LINE (Series I)

1шт.

35

31-250

ELBOW

1шт.

36

1-9956

PLUG

CAP

1шт.

37

1-2961

CYLINDER

MASTER CYL. (W/2-speed transfer case)

1шт.

35-1079

SEAL KIT

SEAL KIT FOR 1-2961T91 CYLINDER WHICH HAS A 1.000" BORE. 35-1894T91 IS SEAL KIT FOR 90-7554T91 WHICH HAS A .88" BORE.

1шт.

38

1-1800

GASKET

1шт.

39

31-664

FITTING

swivel type

1шт.

40

31-663

BANJO BOLT

BOLT, outlet port

1шт.

41

1-1799

GASKET

1шт.

42

31-607

REDUCER

ADAPTER

1шт.

43

19-92

NUT,7/16"-20, G2

CAPSCREW, 7/16 NF

1шт.

44

1-4159

PUSHROD

1шт.
