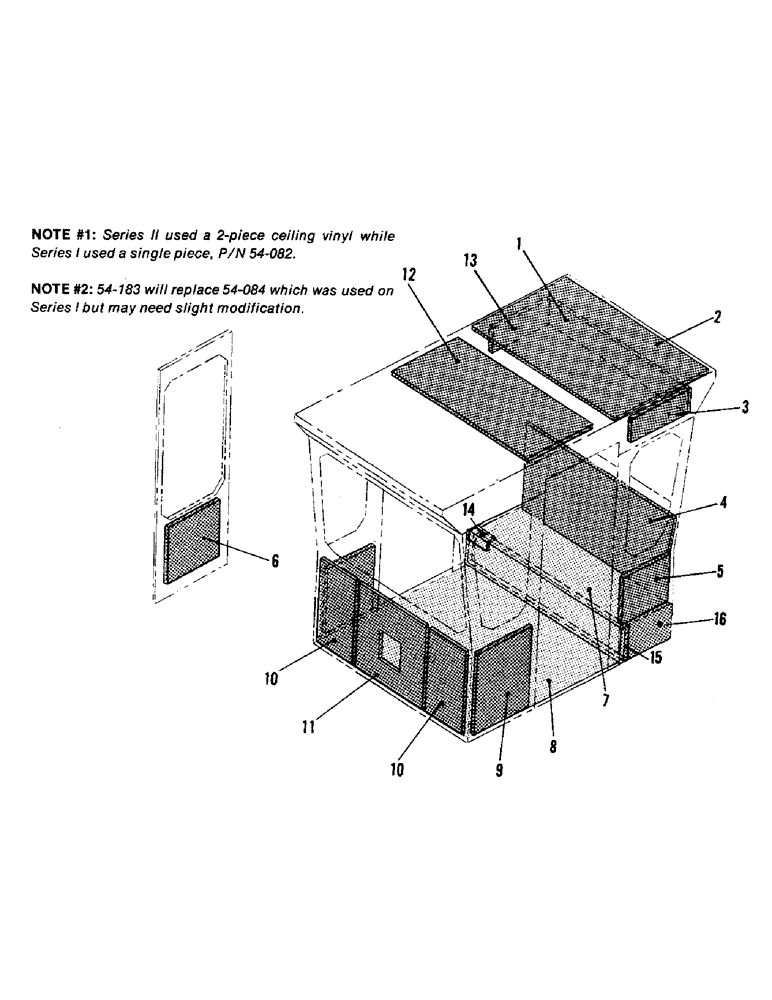

Запчасти Case IH STEIGER (01-03) - CAB CARPET AND INSULATION (10) - CAB

1

54-78

VINYL, top rear

1шт.

2

54-178

VINYL, ceiling rear (Series II)

1шт.

2

54-82

VINYL, ceiling (See 24-1731)

1шт.

3

54-73

VINYL, top rear side, left

1шт.

4

54-79

VINYL, rear bottom

1шт.

5

54-77

VINYL, lower rear panel

2шт.

6

4-414

FOAM

VINYL, door panels

2шт.

7

54-183

CARPET, rear (See note #2)

1шт.

8

54-83

MAT

CARPET, front

1шт.

9

54-76

VINYL, sides, lower front

2шт.

10

54-177

VINYL, firewall sides (Series II)

2шт.

10

54-75

VINYL, firewall sides (Series I)

2шт.

11

54-176

VINYL, firewall, middle (Series II)

1шт.

11

54-74

VINYL, firewall, middle (Series I)

1шт.

12

54-179

VINYL, ceiling, center (Series II)

1шт.

13

54-188

VINYL, top rear side, right

1шт.

14

54-206

VINYL, valve cover dust seal

1шт.

15

54-214

FOAM - sound insulation

1шт.

16

54-213

FOAM - sound insulation

1шт.

24-1731

Bulk Foam 2' x 60'

1шт.
