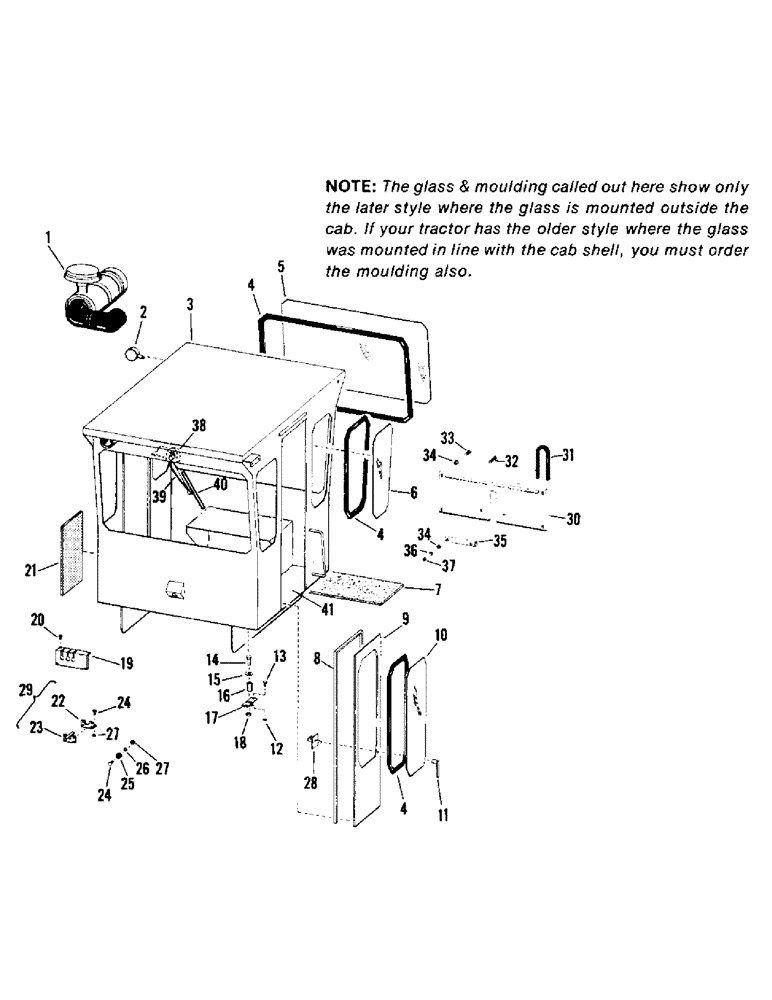

Запчасти Case IH STEIGER (01-01) - CAB, SERIES I (10) - CAB

1

CAB FILTER (See figure 3-8)

1шт.

2

22-107

LAMP

LIGHT, flasher

2шт.

3

54-10

CAB FRAME

1шт.

4

4-499

MOLDING

MOULDING, front & rear

2шт.

4-500

MOULDING, side

4шт.

4-294

MOLDING

MOULDING, door

2шт.

5

54-105

GLASS, front & rear

2шт.

6

54-104

GLASS, side

4шт.

7

CARPET (See figure 1-3)

1шт.

8

4-465

SEALING STRIP

MOULDING, door

2шт.

9

4-71

DOOR

right

1шт.

9

4-72

DOOR, left

1шт.

10

24-128

GLASS

door

2шт.

11

24-6

HANDLE

door, outer

2шт.

12

19-82

LOCK NUT

1/2" NC

8шт.

13

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

8шт.

14

19-325

BOLT,Hex, 3/4" - 10 x 4", Gr 8

CAPSCREW

4шт.

15

19-326

WASHER

flat, 3/4"

4шт.

16

4-265

SPACER

4шт.

17

64-215

INSULATOR

ISOLATOR

4шт.

18

19-324

NUT,Hvy, 3/4" - 10, Gr 5

3/4" NC

4шт.

19

54-112

COVER, valve

1шт.

20

19-248

SELF-TAP SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

CAPSCREW

4шт.

21

VINYL (See figure 1-3)

1шт.

22

1-197

BRACKET, holder

2шт.

23

19-264

HOLDER

door

2шт.

24

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

6шт.

25

24-51

INSERT

STOP, rubber

2шт.

26

19-107

WASHER

3/8" flat

2шт.

27

19-78

SPECIAL NUT,3/8"-16, G5

3/8" NC

6шт.

28

24-44

LOCK

LATCH, R.H.

1шт.

28

24-45

LATCH

L.H.

1шт.

29

19-227

HOLDER

ASSY. (Ref. 22 & 23)

1шт.

30

54-39

PLATE, inspection

1шт.

31

54-141

MOULDING

1шт.

32

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW

2шт.

33

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

4шт.

34

19-107

WASHER

3/8

4шт.

35

54-122

HOLD DOWN

1шт.

36

19-117

LOCK WASHER,3/8"

3/8"

2шт.

37

19-84

NUT,3/4"-10, G5

3/8 NC

2шт.

38

24-22

MOTOR

WIPER MOTOR

1шт.

39

24-167

WIPER ARM

1шт.

40

24-168

WIPER BLADE

1шт.

41

54-41

FLOOR BOARD

1шт.
