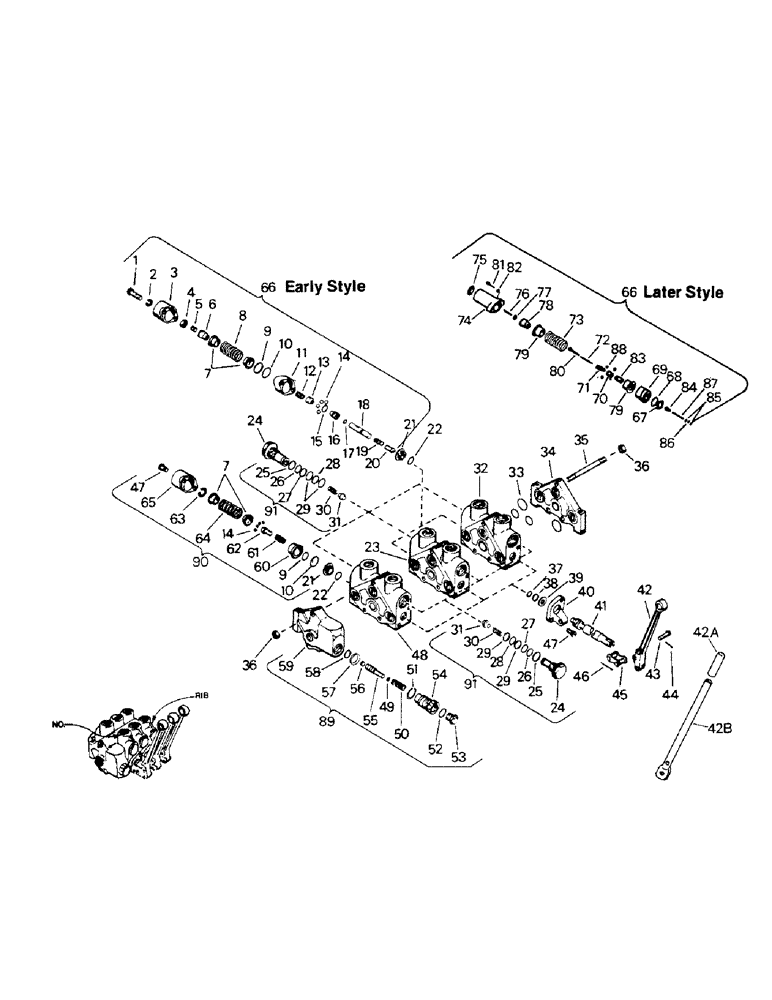

Запчасти Case IH STEIGER (08-21) - CONTROL VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1-2361
CONTROL VALVE, 3 spool (Repl. 18-579, 18-965, 18-1092, & 18-1131)
1шт.
18-1134
FITTING
PLUG, power beyond
1шт.
18-881
SECTION (4-way float)
1шт.
1-3575
VALVE
SECTION (4-way knockout) (W/later positioner)
2шт.
1
18-840
BOLT
SCREW
2шт.
2
18-885
WASHER
2шт.
3
18-830
COWL
BONNET
1шт.
4
18-829
NUT
1шт.
5
18-828
SCREW, set
1шт.
6
18-827
ADAPTER, spool
1шт.
7
18-826
COLLAR ASSY.
COLLAR STOP
4шт.
8
18-884
SPRING
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL, quad ring
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
11
18-831
ADAPTER, detent
1шт.
12
18-824
SPRING
1шт.
13
18-823
FOLLOWER
1шт.
14
18-822
BALL
7/32 dia.
8шт.
15
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
16
18-816
PISTON, Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
19
18-815
SPRING, adj. relief
1шт.
20
18-814
POPPET
1шт.
21
18-895
LARGE PLATE
PLATE
1шт.
22
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
23
NSS
NOT SOLD SEPARAT
HOUSING, knockout section
1шт.
24
18-886
PLUG
lift check
1шт.
25
NSS
NOT SOLD SEPARAT
SEAL
1шт.
26
NSS
NOT SOLD SEPARAT
WASHER, backup
1шт.
27
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
28
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER
1шт.
30
18-893
SPRING
1шт.
31
18-891
VALVE POPPET
POPPET
1шт.
32
NSS
NOT SOLD SEPARAT
HOUSING, knockout section
1шт.
33
1-8344
SEAL KIT
KIT
1шт.
34
18-911
COVER, right
1шт.
31-1594
PLUG,Hex Hd, 1 3/16"-12 ORB
(To plug power beyond orifice in 18-911) (Not shown)
1шт.
35
18-908
STUD
3 section
3шт.
18-1037
STUD,Flg, 3/8" x 9 1/2"
4 section
3шт.
18-1038
STUD,3/8" - 24 x 11.50"
5 section
3шт.
36
18-909
LOCK NUT
NUT
6шт.
37
NSS
NOT SOLD SEPARAT
SEAL, o-ring
6шт.
38
NSS
NOT SOLD SEPARAT
WASHER, backup
6шт.
39
NSS
NOT SOLD SEPARAT
RETAINER, seal
6шт.
40
18-836
BRACKET
3шт.
41
NSS
NOT SOLD SEPARAT
SPOOL
3шт.
42
18-832
HANDLE (Early style)
3шт.
42a
2-1486
HANDLE (Later style)
3шт.
42b
2-1485
LEVER
3шт.
43
18-834
CLEVIS PIN
PIN
3шт.
44
18-833
PIN
COTTER KEY
3шт.
45
18-894
LINK
3шт.
46
18-835
PIN, SPLIT (COTTER)
COTTER KEY
3шт.
47
18-839
SCREW
8шт.
48
NSS
NOT SOLD SEPARAT
HOUSING, float section
1шт.
49
18-1509
SHIM
(.010)
1шт.
50
18-920
SPRING
relief
1шт.
51
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
52
NSS
NOT SOLD SEPARAT
SEAL, o-ring
1шт.
53
18-923
PLUG
CAP, relief spring
1шт.
54
18-924
VALVE PRESSURE RELIE
BODY, relief valve
1шт.
55
18-918
VALVE POPPET
PISTON
1шт.
56
NSS
NOT SOLD SEPARAT
SEAL
1шт.
57
NAP
WASHER, backup
1шт.
58
NSS
NOT SOLD SEPARAT
SEAL
1шт.
60
18-903
SLEEVE
float detent
1шт.
61
18-904
SPRING
1шт.
62
18-912
TAPPET
FOLLOWER
1шт.
63
18-900
RING, retainer
1шт.
64
18-902
SPRING
1шт.
65
18-901
BONNET, float
1шт.
66
18-874
LEVER
POSITIONER ASSY., knockout (Early style) (Service w/01-3549)
1шт.
1-3549
LEVER
POSITIONER ASSY., knockout (Later style) (See note #1)
1шт.
67
NSS
NOT SOLD SEPARAT
SEAL, o-ring
3шт.
68
NSS
NOT SOLD SEPARAT
RING, back-up
3шт.
69
NSS
NOT SOLD SEPARAT
SLEEVE, detent
3шт.
70
NSS
NOT SOLD SEPARAT
FOLLOWER, ball
3шт.
71
NSS
NOT SOLD SEPARAT
SPRING
3шт.
72
NSS
NOT SOLD SEPARAT
SPRING
3шт.
73
NSS
NOT SOLD SEPARAT
SPRING
3шт.
74
NSS
NOT SOLD SEPARAT
BONNET
3шт.
75
2-3815T1
PLUG
button
3шт.
76
NSS
NOT SOLD SEPARAT
SET SCREW
3шт.
77
NSS
NOT SOLD SEPARAT
LOCK NUT
3шт.
78
NSS
NOT SOLD SEPARAT
COLLAR, spool
3шт.
79
NSS
NOT SOLD SEPARAT
COLLAR, spring
6шт.
80
NSS
NOT SOLD SEPARAT
GUIDE, spring
3шт.
81
NSS
NOT SOLD SEPARAT
SCREW
6шт.
82
NSS
NOT SOLD SEPARAT
PLATE BEARING
6шт.
83
NSS
NOT SOLD SEPARAT
PLUNGER, knockout
3шт.
84
NSS
NOT SOLD SEPARAT
GUIDE, piston
3шт.
85
NSS
NOT SOLD SEPARAT
RING, back-up
6шт.
86
NSS
NOT SOLD SEPARAT
SEAL, o-ring
3шт.
87
NSS
NOT SOLD SEPARAT
ROLLER, needle
3шт.
88
NSS
NOT SOLD SEPARAT
BALL, detent
4шт.
89
18-1703
VALVE, PRESSURE RELI
RELIEF ASSY.
1шт.
90
18-882
FLOAT
POSITIONER ASSY., float
1шт.
91
18-876
PLUG
load check
6шт.
35-1277T91
SEAL
KIT (For later style positioner) (Refs. 22, 67, 68, 85 & 86)
1шт.
18-1748
SEAL KIT
KIT (For early style positioner) (Refs. 4, 6, 9, 10, 15-18 & 22)
1шт.
18-1418
SEAL KIT
SEAL KIT, relief body (Refs. 51, 52, 57 & 58) (All valves)
1шт.
18-1417
SEAL
RELIEF POPPET & SEAL ASSY. (Refs. 55 & 56) (All valves)
1шт.
18-962
SEAL KIT
KIT, complete for float bank or knockout w/earlier style positioner (Incl. 9, 10, 22 , 25-29, 33, 38)
1шт.
35-1059
SEAL KIT
KIT FOR KNOCKOUT BANK W/LATER STYLE POSITIONER (Incl. 22, 25-29, 37, 38, 67 & 68)
1шт.
18-934
O-RING
SEAL KIT (See note #2) (Incl. same as 18-962)
1шт.
18-964
O-RING
SEAL KIT (See note #2) (Incl. 3 seals for spool only)
1шт.
