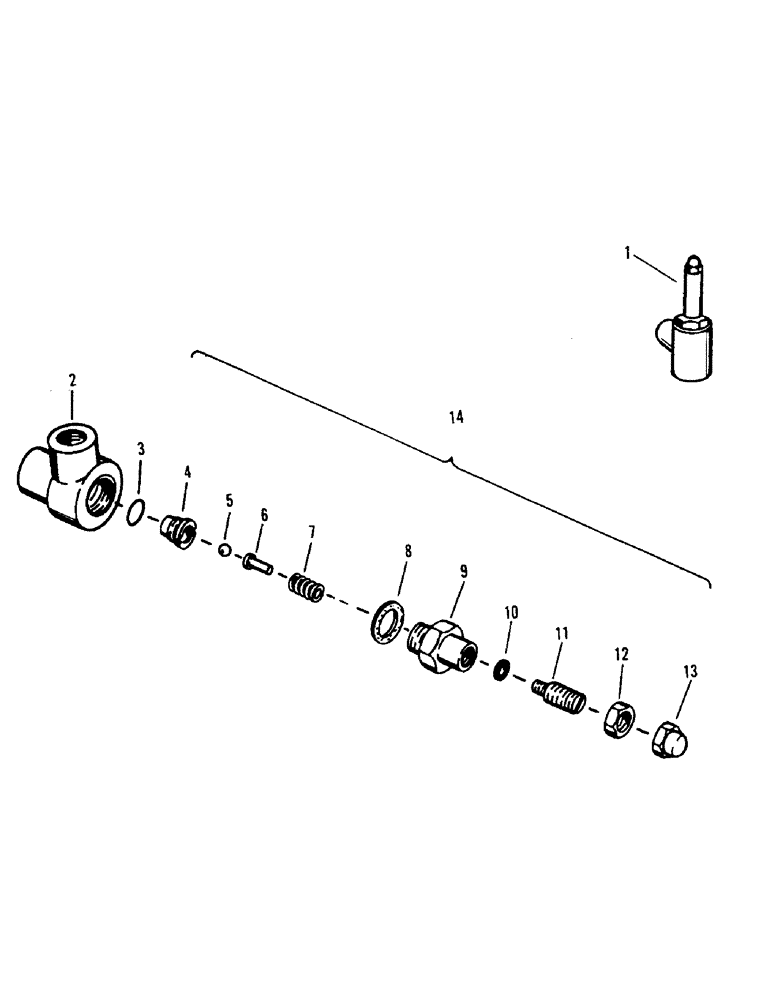

Запчасти Case IH STEIGER (08-19) - RELIEF VALVE (07) - HYDRAULICS

1

18-12

VALVE

RELIEF VALVE ASSY. (Ref. 2-14)

1шт.

2

18-38

HYDRAULIC VALVE

HOUSING, valve

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Seal (Replaces 18-44)

1шт.

4

18-440

SEAT

1шт.

5

211-1014

BALL,7/16" Dia

(replaces 18-281)

1шт.

6

18-441

POPPET

1шт.

7

D24049

VALVE SPRING

SPRING (replaces 18-47)

1шт.

8

34115

GASKET

(replaces 18-148)

1шт.

9

18-63

BODY

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

(Replaces 18-100) -111, 70 Duro, .424" ID x .103" Thk

1шт.

11

34110

ADJUSTMENT SCREW

(replaces 18-107)

1шт.

12

425-1510

JAM NUT,Jam, 5/8"-18, G5

(Replaces 18-112) Jam, 5/8"-18, G5

1шт.

13

18-113

SPECIAL NUT

CAP, acorn

1шт.

14

18-443

VALVE, PRESSURE RELI

KIT, repair (Ref. 3-13) use prime

1шт.
