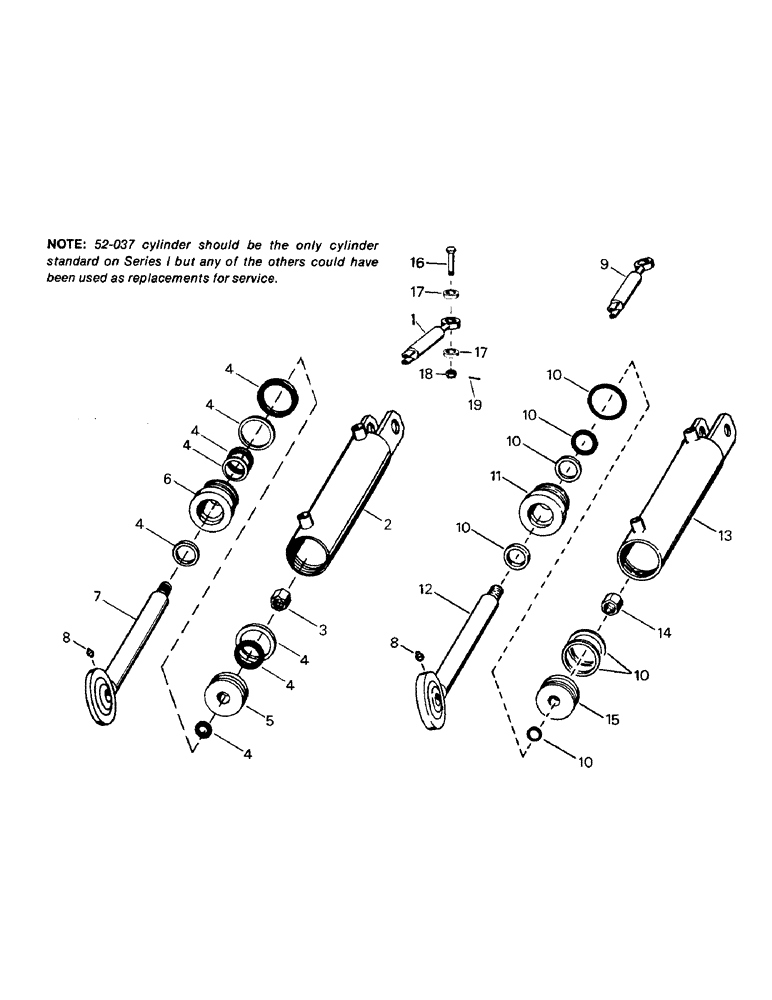

Запчасти Case IH STEIGER (08-17) - STEERING CYLINDERS (07) - HYDRAULICS

1

52-37

CYLINDER

ASSEMBLY, NPT ports

2шт.

18-1147

CYLINDER

ASSEMBLY, o-ring ports

2шт.

Ref part number 18-1147. jerry larsen has this crossed off in his book and replaced with 18-1149 which subs to 18-1150 no longer furnished. this part is with a ball on one end and a yoke on the other. the p/n 18-1147 is with a yoke on both ends.

1шт.

2

52-65

SHELL, NPT ports

1шт.

18-1265

SHELL, o-ring ports

1шт.

3

18-445

NUT

1шт.

4

18-462

SEAL KIT

SEAL KIT (Cylinder #1)

1шт.

5

18-446

PISTON

1шт.

6

18-486

GLAND

END GLAND

1шт.

7

52-66

ROD

SHAFT

1шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

9

18-1013

CYLINDER

ASSEMBLY, NPT ports

2шт.

18-1150

CYLINDER

ASSEMBLY, o-ring ports

2шт.

10

18-1012

SEAL PACKAGE

SEAL KIT (See note 3)

1шт.

2-2866

SEAL PACKAGE

SEAL KIT (See note 3)

1шт.

2-2866T91

SEAL KIT

SEAL KIT (See note 3)

1шт.

11

18-1001

GUIDE

GLAND

1шт.

12

18-1015

ROD

SHAFT

1шт.

13

18-1014

BARREL

SHELL (NPT Ports)

1шт.

18-1266

SHELL

(O-Ring ports)

1шт.

14

18-1011

NUT

1шт.

15

18-1000

PISTON

1шт.

16

52-28

BOLT

steering cylinder

4шт.

17

19-169

WASHER

SHIM

2шт.

18

19-100

SLOTTED NUT,1 1/8" - 12, Gr 5

CASTLE NUT

4шт.

19

19-125

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

4шт.
