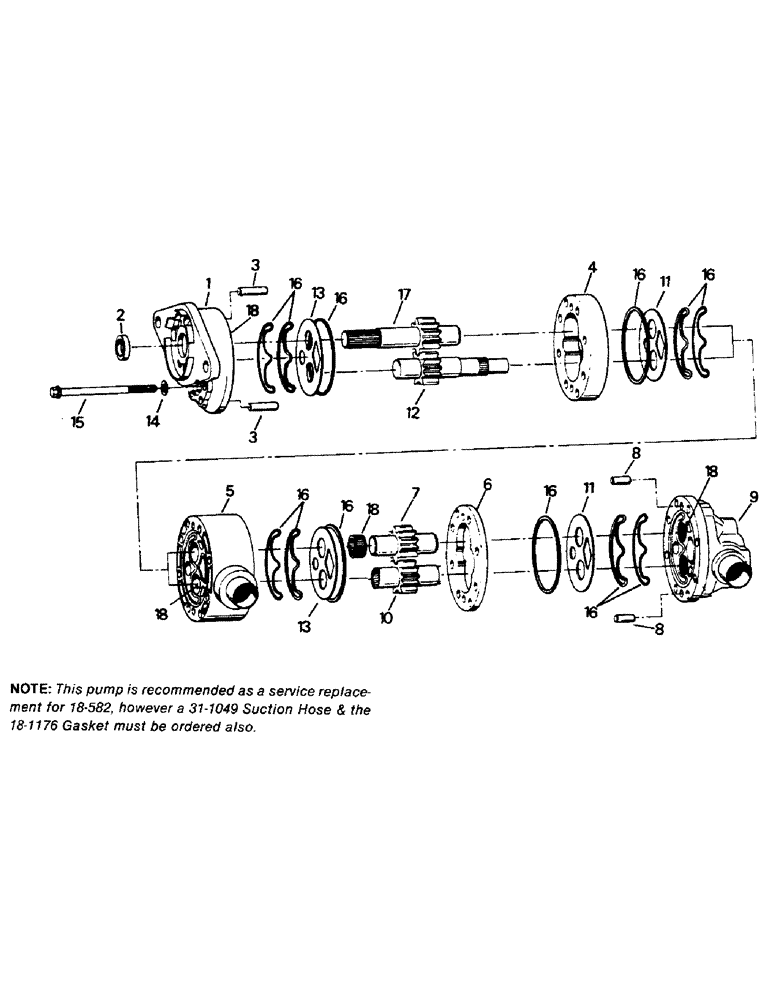

Запчасти Case IH STEIGER (08-13) - HYDRAULIC PUMP, TIGER I AND II, FIELD REPLACEMENT FOR 18-582 (07) - HYDRAULICS

1-3955

PUMP

(1-18) PUMP ASSY., Includes: Ref. 1 - 18

1шт.

1

1-9701

BODY (Incl. #2 & 18)

1шт.

2

1-9487

OIL SEAL

SEAL 1-3/8 x .877 I.D.

1шт.

3

18-1381

PIN

DOWEL PIN

2шт.

4

1-9707

LARGE PLATE

GEAR PLATE, front

1шт.

5

1-9702

PLATE ASSY.

1шт.

6

1-9708

GEAR PLATE

1шт.

7

18-1390

FRONT IDLER

GEAR

1шт.

8

18-1388

PIN

DOWEL PIN

2шт.

9

1-9703

COVER ASSY.

1шт.

10

1-9706

GEAR

1шт.

11

1-9709

LARGE PLATE

WEAR PLATE

2шт.

12

1-9705

GEAR ASSY.

1шт.

13

1-9710

LARGE PLATE

WEAR PLATE

2шт.

14

18-1260

SPACER

WASHER

8шт.

15

18-1261

BOLT Hex Soc Hd, 3/8"-16 x 6 1/4"

8шт.

16

1-9712

REPAIR KIT (Also incl. 2, 11 & 13)

1шт.

17

1-9704

SHAFT & GEAR ASSY.

1шт.

18

1-4196

NEEDLE BEARING

BEARING

8шт.

18-1176

GASKET

mounting (Not shown)

1шт.
