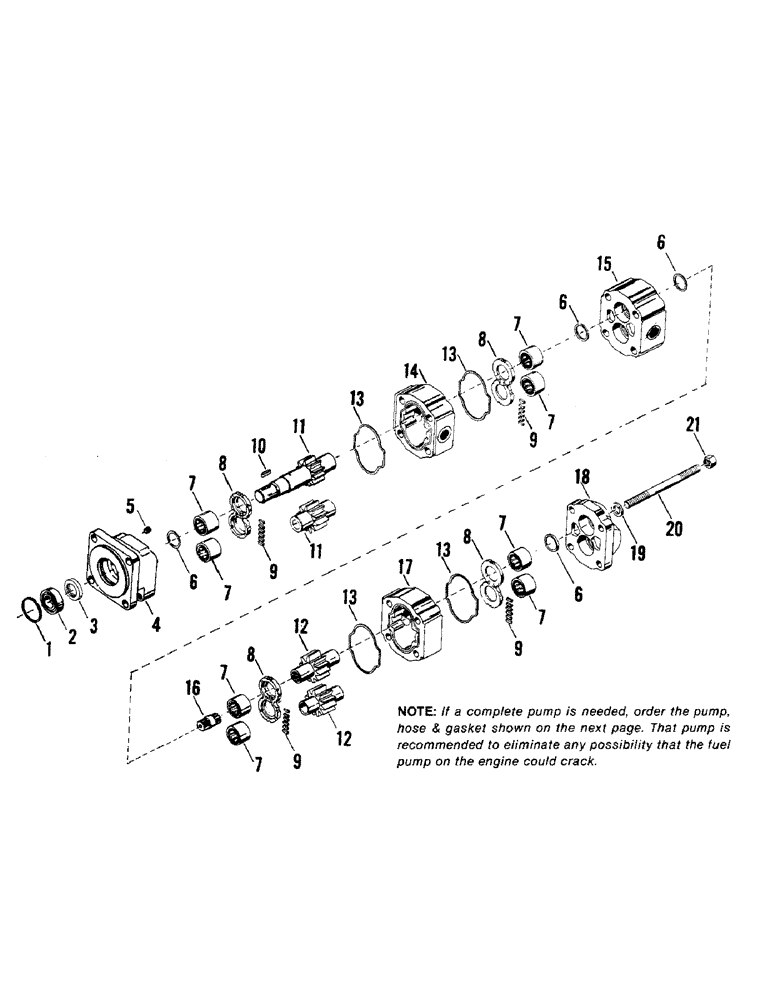

Запчасти Case IH STEIGER (08-12) - HYDRAULIC PUMP, TIGER I AND II (07) - HYDRAULICS

18-582

HYDRAULIC PUMP

PUMP, hydraulic

1шт.

1

18-968

RING

SNAP RING

1шт.

2

18-970

BALL BEARING

BEARING, outboard

1шт.

3

18-769

SEAL

shaft

1шт.

4

18-969

COVER, end

1шт.

5

18-772

PLUG

1шт.

6

18-771

SEALING RING

ring

4шт.

7

18-773

ROLLER BEARING

BEARING, roller

8шт.

8

18-774

LARGE PLATE

PLATE, thrust

4шт.

9

18-971

SEAL

S, pocket

4шт.

10

NOT ON THIS MODEL

1шт.

11

18-972

SHAFT, drive has 1.690 O.D. & 1.062 I.D.

1шт.

12

18-976

GEAR-SET

GEARS, matched

1шт.

13

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

SEAL, gasket

4шт.

14

18-973

HOUSING, gear

1шт.

15

18-974

CARRIER, bearing

1шт.

16

18-975

SHAFT

connecting

1шт.

17

18-977

HOUSING

rear

1шт.

18

18-978

COVER, port end

1шт.

19

18-780

WASHER

4шт.

20

18-802

STUD

4шт.

21

18-803

NUT

4шт.

18-1307

GASKET

mounting (Not shown)

1шт.
