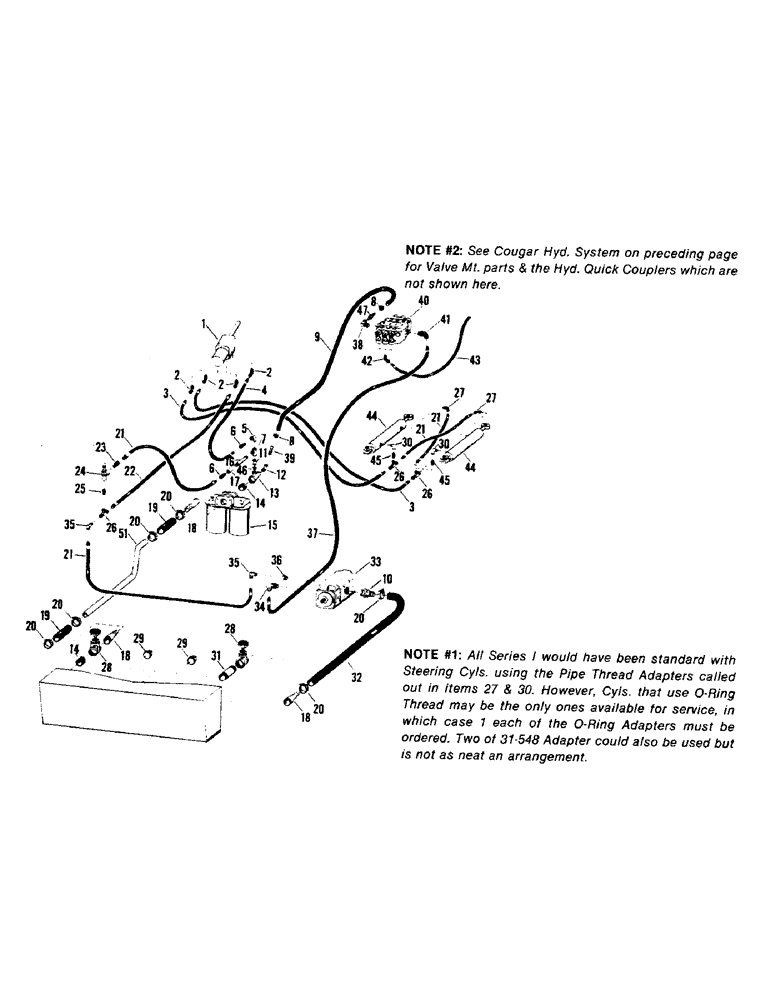

Запчасти Case IH STEIGER (08-04) - HYDRAULIC SYSTEM, TIGER I (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
18-6
VALVE
steering control
1шт.
2
31-383
PIPE
ADAPTER, 45 degrees (DS-8)
4шт.
3
32-43
HOSE, 1/2" x 42"
2шт.
4
32-12
HOSE
BUSHING, 1" x 3/4"
1шт.
5
31-21
ELBOW
ST. ELBOW, 3/4"
1шт.
6
31-234
ADAPTER
2шт.
7
31-8
TEE,1/4"-14 Female
3/4" pipe
1шт.
8
32-130
CLAMP,1.40"-1.56", T-Bolt
2шт.
9
18-620
HOSE, 1" ID x 44"
1шт.
10
31-373
PIPE
ADAPTER (DS-8)
1шт.
11
31-278
NIPPLE, 3/4" x 2"
1шт.
12
31-334
ST. ELBOW, 1"
1шт.
13
31-182
TEE
1шт.
14
31-28
SCREW
NIPPLE, close
2шт.
15
18-813
FILTER
ASSY.
1шт.
18-842
ELEMENT
2шт.
16
31-273
NIPPLE, 3/4" x 6"
1шт.
17
31-53
COUPLING
3/4" pipe
1шт.
18
31-1
PIPE
NIPPLE, 1-1/2", Serial Range: pipe-hose
3шт.
19
18-598
HOSE
2шт.
20
32-140
CLAMP,#34, 1.94"-2.25", T-Bolt
6шт.
21
32-41
HOSE, 1/2" x 24"
2шт.
22
32-42
HOSE
1/2" x 32"
1шт.
23
31-468
UNION
ADAPTER
1шт.
24
18-12
VALVE
relief
1шт.
25
31-345
FITTING
NIPPLE, 1/2"
1шт.
26
31-135
UNION
TEE
1шт.
27
31-430
ADAPTER, pipe thread (See note #1)
1шт.
31-383
PIPE
ADAPTER, o-ring thread (DS-8)
2шт.
28
31-283
VALVE, gate
2шт.
29
31-64
PLUG
1-1/2" sq. hd.
2шт.
30
31-20
ST. ELBOW (Pipe thread) (See note #1)
1шт.
31-287
ADAPTER (O-Ring thread) (DS-8)
1шт.
31
31-80
NIPPLE, 1/1/2" x 6"
1шт.
32
18-599
HOSE
(Use w/18-582)
1шт.
31-1049
HOSE (Use w/01-3955)
1шт.
33
18-582
HYDRAULIC PUMP
PUMP (Service w/01-3955)
1шт.
1-3955
PUMP
(See parts pages)
1шт.
18-1307
GASKET
pump mt. for 18-582
1шт.
18-1176
GASKET
pump mt. for 01-3955
1шт.
34
31-327
ADAPTER
(DS-12)
1шт.
35
31-381
ADAPTER
2шт.
36
31-467
BUSHING (DS-12)
1шт.
37
18-597
HOSE, 3/4" x 68"
1шт.
39
31-372
KING NIPPLE, 1"
1шт.
40
CONTROL VALVE (See parts figure)
1шт.
41
31-437
PIPE
ADAPTER (DS-12)
1шт.
42
31-568
LINK
ADAPTER (DS-10)
6шт.
43
32-143
HOSE, 1/2" x 130"
6шт.
44
STEERING CYL. (See parts figure)
2шт.
45
31-563
ADAPTER, 1/2"
1шт.
Выбрано товаров: 52
