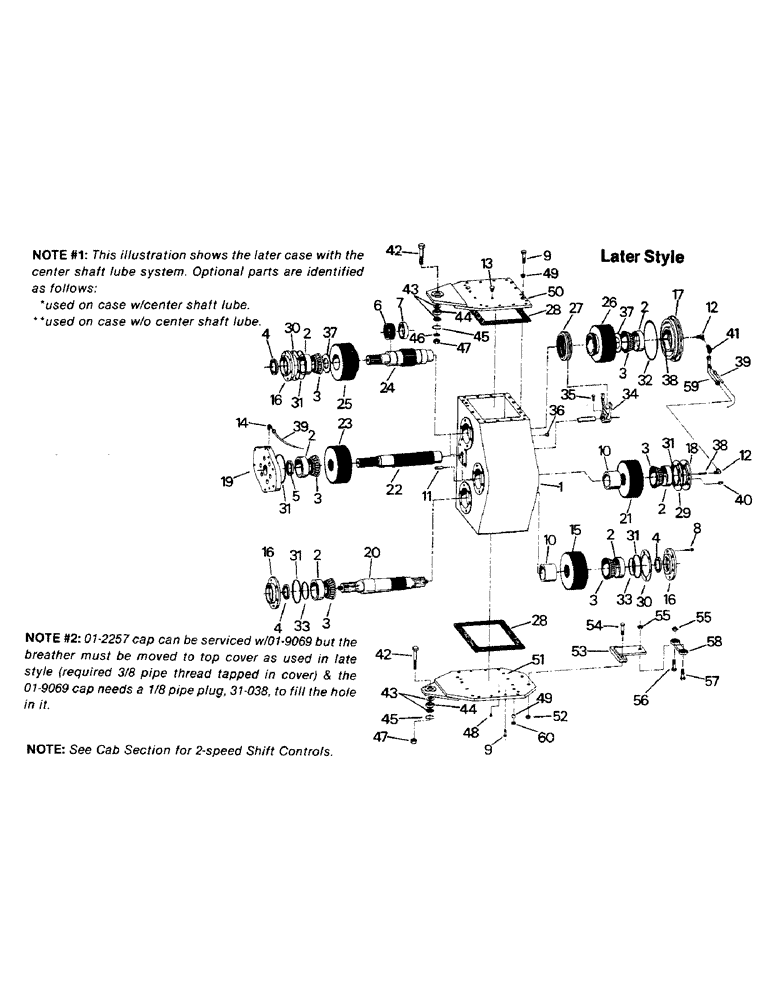

Запчасти Case IH STEIGER (04-62) - TWO SPEED TRANSFER CASE ASSEMBLY, LH HUMP, SERIES III BOX, FIELD INSTALLED IN SERIES I AND II (04) - Drive Train

1

1-2319

TRANSFER CASE

1шт.

2

1-2255

BEARING, CUP,4.8125" OD x 1.5"

CUP

6шт.

3

1-2256

ROLLER BEARING,2.5" ID x 1.51"

CONE

6шт.

4

14-153

SEAL

3шт.

5

1-2287

SEAL

1шт.

6

1-2273

ROLLER BEARING,3" ID x 1.5"

BEARING, needle

4шт.

7

1-2274

SPACER

bearing

2шт.

8

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

38шт.

9

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

32шт.

10

1-2285

SPACER

gear

2шт.

11

1-1857

PIN, dowel

2шт.

12

31-474

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

2шт.

31-219

ELBOW

1шт.

13

31-303

BREATHER

(Is located in middle rear bearing cap on cases w/o center shaft lube & needs 31-219 elbow)

1шт.

14

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

31-599

ELBOW

1шт.

15

1-2268

GEAR

1шт.

16

1-2262

PLUG

CAP

3шт.

17

1-2264

CAP

1шт.

18

1-2257

X

CAP (Can service w/01-9069) (See note #2)

1шт.

1-9069

CYLINDER END CAP

CAP

1шт.

19

1-2266

PLATE, inside

1шт.

20

1-2306

SHAFT

output

1шт.

21

1-2291

GEAR

1шт.

22

1-2292

SHAFT

(Service w/01-6967)

1шт.

23

1-2282

GEAR

1шт.

24

1-2307

SHAFT

input

1шт.

25

1-2316

PINION

GEAR

1шт.

26

1-2310

GEAR

1шт.

27

1-2258

CLUTCH

1шт.

28

1-2322

GASKET

1шт.

29

1-2293

SHIM

.020

1шт.

1-2294

SHIM

.005

1шт.

1-2295

SHIM

.007

1шт.

30

1-2296

SHIM

.005

2шт.

1-2297

SHIM

.007

2шт.

1-2298

SHIM

.020

2шт.

31

1-2271

SEAL

O-RING

5шт.

32

1-2270

O-RING,9.234" ID x 9.512" OD x 0.139"

O-RING

1шт.

33

1-2269

O-RING,2.237" ID x 2.443" OD x 0.103"

2шт.

34

1-2550

FORK

shifter

1шт.

35

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

CAPSCREW, 1/2 x 2 UNF

1шт.

36

31-90

PLUG

expansion

1шт.

37

1-2290

WASHER

2шт.

38

1-2546

PIPE

NIPPLE, pipe

1шт.

39

1-8650

TUBE,0.25" OD, 16, 6.25" Length

ASSY.

1шт.

1-2545

TUBE ASSY.

1шт.

40

31-1255

CAPLUG

1шт.

41

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

1-1865

CONNECTOR, ELEC

CONNECTOR

1шт.

42

19-5352

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

CAPSCREW, 1 x 4-1/2 UNC

2шт.

43

1-3586

BUSHING

4шт.

44

1-3583

BUSHING

UNIBALL

2шт.

45

1-3584

RING

snap

2шт.

46

19-714

WASHER,1", SAE

1-1/16

1шт.

47

19-859

LOCK NUT

LOCK NUT, 1 UNC

2шт.

48

31-37

PLUG

pipe

1шт.

49

1-3588

CONE

4шт.

50

1-4175

LOWER LINK

1шт.

51

1-4176

LOWER LINK

1шт.

52

19-222

LOCK NUT,5/8" - 11, GB

2шт.

53

1-4170

TAILPIECE

1шт.

54

19-61

BOLT,5/8" - 11 x 2 1/2", Gr 5

CAPSCREW, 5/8 NC x 2-1/2

2шт.

55

19-85

LOCK NUT

LOCK NUT, 3/4 NC

2шт.

56

19-767

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

CAPSCREW, 3/4 NC x 2-3/4

1шт.

57

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/4 NC x 2-1/2

1шт.

58

52-24

LINK

trans. case steer

1шт.

59

1-8651

TUBE ASSY. 0.5" OD, 5.37, 2.1" Length

1шт.

60

19-463

WASHER,1/2", SAE

1/2"

4шт.

Ref: Yokes are same as Single Speed.

1шт.
