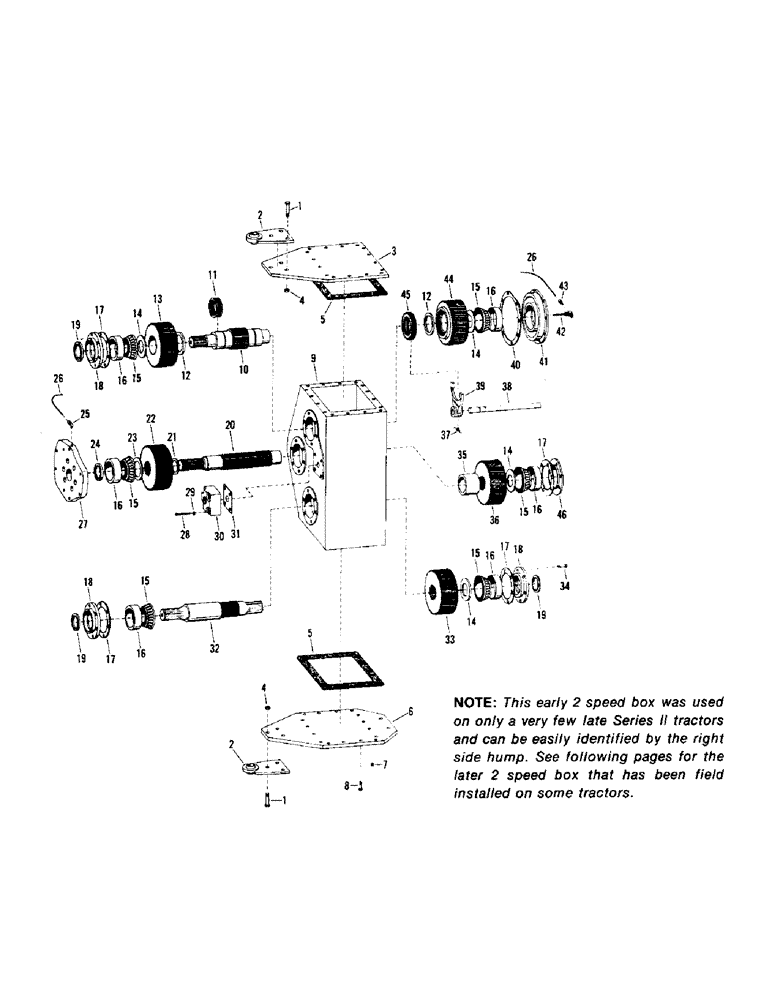

Запчасти Case IH STEIGER (04-60) - TWO SPEED DROP BOX ASSEMBLY, RIGHT SIDE HUMP (04) - Drive Train

1

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

CAPSCREW, 3/4 NF x 3

6шт.

2

2-4

X

PLATE, bearing

2шт.

3

52-92

LINK, top

1шт.

4

19-97

NUT,3/4"-16, G5

3/4 NF

6шт.

5

42-78

GASKET

top - bottom

2шт.

6

52-93

LINK, bottom

1шт.

7

31-506

PLUG,Hex Hd, 3/8"-18

DRAIN PLUG

1шт.

8

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

32шт.

9

42-70

BOX, machined

1шт.

10

42-130

SHAFT, input

1шт.

11

14-189

BEARING, needle

4шт.

12

42-129

WASHER, thrust

2шт.

13

42-132

GEAR (54 teeth)

1шт.

14

42-73

WASHER

4шт.

15

14-152

ROLLER BEARING,2.5585" ID x 1.5354"

CONE - bearing

6шт.

16

14-151

BEARING CUP,1.2598" OD x 4.7244"

CUP - bearing

6шт.

17

42-80

SHIM, .005

1шт.

42-81

SHIM, .007

1шт.

42-82

SHIM, .020

1шт.

18

42-59

CAP

3шт.

19

14-153

SEAL

3шт.

20

42-74

SHAFT, middle

1шт.

21

42-142

SLEEVE, wear

1шт.

22

42-77

GEAR (47 teeth)

1шт.

23

42-79

WASHER

1шт.

24

33-209

SEAL

1шт.

25

31-599

ELBOW

MALE ELBOW

1шт.

26

42-135

TUBE, bearing oiler

1шт.

27

42-89

PLATE, inside

1шт.

28

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

CAPSCREW

4шт.

29

19-117

LOCK WASHER,3/8"

3/8"

6шт.

30

42-122

BLOCK, detent

1шт.

31

42-126

GASKET

1шт.

32

42-65

SHAFT, output 23 Splines Its length is 18.910".

1шт.

33

42-76

GEAR (51 teeth)

1шт.

34

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW

38шт.

35

42-61

SPACER

1шт.

36

42-71

GEAR

(50 teeth) 23 splines

1шт.

37

12-1624

SET SCREW

2шт.

38

42-63

ROD

shifter

1шт.

39

42-58

FORK, shifter

1шт.

40

42-86

SHIM .005

1шт.

42-87

SHIM, .007

1шт.

42-88

SHIM, .020

1шт.

41

42-66

CAP

1шт.

42

42-138

DIP TUBE ASSEMBLY

1шт.

43

31-598

CONNECTING ROD

CONNECTOR, 1/8 TPT x 1/4 tube

1шт.

44

42-131

GEAR (51 teeth)

1шт.

45

42-133

CLUTCH GEAR

1шт.

46

42-62

CAP

1шт.

Yokes are same as single speed.

1шт.
