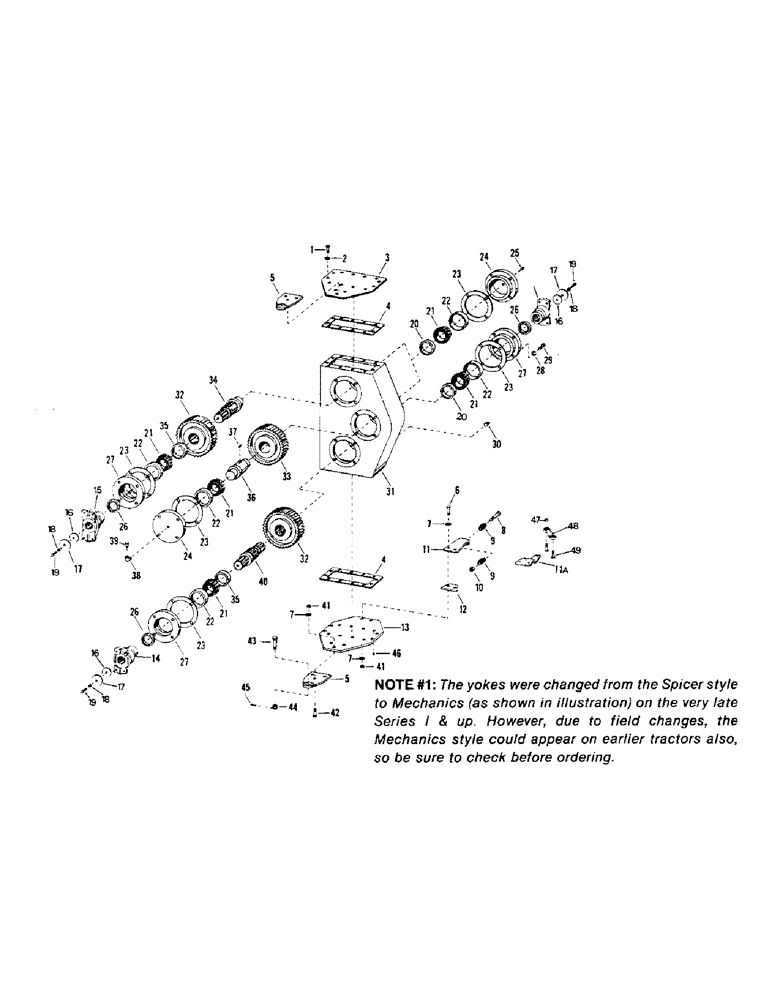

Запчасти Case IH STEIGER (04-58) - TRANSFER CASE, SINGLE SPEED (04) - Drive Train

35-1060

TRANSFER CASE SUB-ASSY., Incl. case w/internal parts & gaskets (No yokes or covers) (Has later style shafts & center gear)

1шт.

1

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

CAPSCREW, 5/8 NC x 2

24шт.

2

19-120

LOCK WASHER,5/8"

5/8"

24шт.

3

52-20

TOP LINK

1шт.

4

52-48

GASKET

2шт.

5

2-4

X

BEARING PLATE with 1" Hole - For 1 1/8" bolt use 3-1001 Plate.

2шт.

6

19-566

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

CAPSCREW, 3/4 NC x 3-1/2

2шт.

7

19-112

WASHER,3/4"

3/4

10шт.

8

19-72

BOLT,Hex, 1" - 14 x 6 1/2", Gr 5

CAPSCREW, 1" NF x 6-1/2

1шт.

9

33-64

BOOT

2шт.

10

19-98

NUT,1"-14, G5

1" NF

1шт.

11

52-85

SLIDE

TAILPIECE, series II

1шт.

11a

52-80

TAILPIECE, series I

1шт.

12

52-83

SPACER

1шт.

13

52-86

BOTTOM LINK (25, 38" long, series II)

1шт.

52-21

BOTTOM LINK (19-1/2" long, series I)

1шт.

14

1-2209

FORK

YOKE, mechanics (Bottom) (See note #1)

2шт.

14-54

FORK

YOKE, spicer (Bottom)

2шт.

15

17-135

FORK

YOKE, mechanics (Top) (See note)

1шт.

14-54

FORK

YOKE, spicer (Top)

1шт.

16

42-25

GASKET

3шт.

17

42-26

WASHER

3шт.

18

19-119

LOCK WASHER,1/2"

1/2"

3шт.

19

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 NC x 1-1/4

3шт.

20

52-7

SPACER

(3-1/4" ID x 1" wide)

2шт.

52-135

SPACER

(3" ID x 1" wide)

2шт.

21

14-152

ROLLER BEARING,2.5585" ID x 1.5354"

CONE, bearing

6шт.

22

14-151

BEARING CUP,1.2598" OD x 4.7244"

CUP, bearing

6шт.

23

14-154

SHIM

(.005)

1шт.

14-155

SHIM

(.0075)

1шт.

14-156

SHIM

(.202)

1шт.

24

52-88

CAP

(Replaces 42-015, but needs Ref. 25)

3шт.

25

31-36

PLUG

3/8 pipe

2шт.

26

14-153

SEAL

3шт.

27

42-16

CAP

3шт.

28

19-119

LOCK WASHER,1/2"

1/2"

24шт.

29

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW, 1/2 NC x 1-1/2

24шт.

30

31-34

PLUG

3/4 pipe

1шт.

31

52-2

CASE

1шт.

32

42-49

GEAR

top & bottom

2шт.

33

42-50

GEAR

middle (Smooth w/keyway)

1шт.

42-71

GEAR

middle (Splined)

1шт.

34

52-3

SHAFT

top

1шт.

52-133

SHAFT

top

1шт.

35

52-6

WASHER

SPACER (3" ID x 1" wide)

2шт.

52-135

SPACER

(3" ID x 1" wide) (Used w/splined center shaft also, but not illustrated)

3шт.

36

52-4

SHAFT, middle (Smooth w/keyway)

1шт.

52-132

SHAFT

middle (Splined)

1шт.

37

14-19

KEY

1шт.

38

31-219

ELBOW

ST. ELBOW, 3/8 pipe

1шт.

39

31-303

BREATHER

(Series I was located on top link)

1шт.

40

52-5

SHAFT

bottom

1шт.

51-134

SHAFT, bottom

1шт.

41

19-85

LOCK NUT

3/4 NC lock

8шт.

42

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/4 NC x 2-1/2

6шт.

43

2-14

BOLT,Hex, 1" x 3.875", Drilled

CAPSCREW, 1" NF x 4-1/4

2шт.

44

19-99

SLOTTED NUT,1"-14, G5

NUT, 1" NF castle

2шт.

45

19-125

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

46

31-37

PLUG

1/4" pipe

2шт.

47

19-97

NUT,3/4"-16, G5

3/4 NF

2шт.

48

52-24

LINK

transfer case steering

1шт.

49

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

CAPSCREW, 3/4 NF x 3

2шт.
